MM-Console Spec Sheet

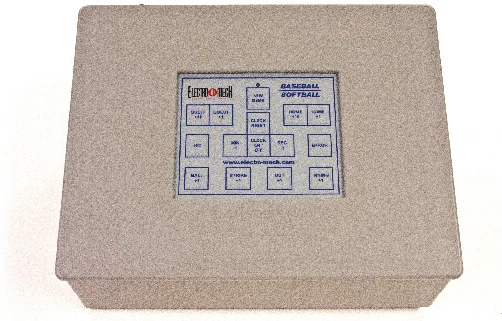

MM-Series Scoreboard Control Console

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Available for the following sports:

Baseball/Softball
Baseball/Football
Football

Standard Features

User friendly, feature packed software

Sport-specific configuration (no codes to enter)
Simplified layout
Perfect synchronization with multiple scoreboards
Support for wired or wireless data transmission
Flash memory for saving game data during power loss

Attached 6 ft. power cord

Additional Features

ETL Listed
Made in the USA

Physical Description

Membrane Keypad

15 dome switches with tactile feedback
3M vinyl overlay

ABS Plastic Enclosure

Desktop configuration
Flame retardant, high impact plastic
Painted steel back plate

Dimensions

Width: 11.5 inches
Depth: 9 inches
Height: 5.5 inches
Weight: 5 pounds

Power Requirements

Voltage: 120 VAC
Amperage: 0.5 Amps
AC Frequency: 60 Hz
Requires standard grounded power receptacle

Data Input and Output

One ¼ in. Stereo Cable Data Output Jack
Optional RJ-45 style Clock Control Input Jack

Other Info

The MM Scoreboard Console was designed for our budget friendly baseball, softball, and football scoreboards and only works on the following models (these can be upgraded at any time to an MP console to support additional features): LX1020, LX1030, LX1050, LX1060, LX1062, LX1064, LX1070, LX1240, LX1241, LX1244, LX1250, LX1260, LX1340, LX1341, LX1360, LX3120, LX3130, LX3140, LX3150.
