Model LX1064 Cutsheet

LX1064 Outdoor Timer Scoreboard AccessoryProduct Cut Sheet with Mechanical and Electrical Details

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Quick specifications

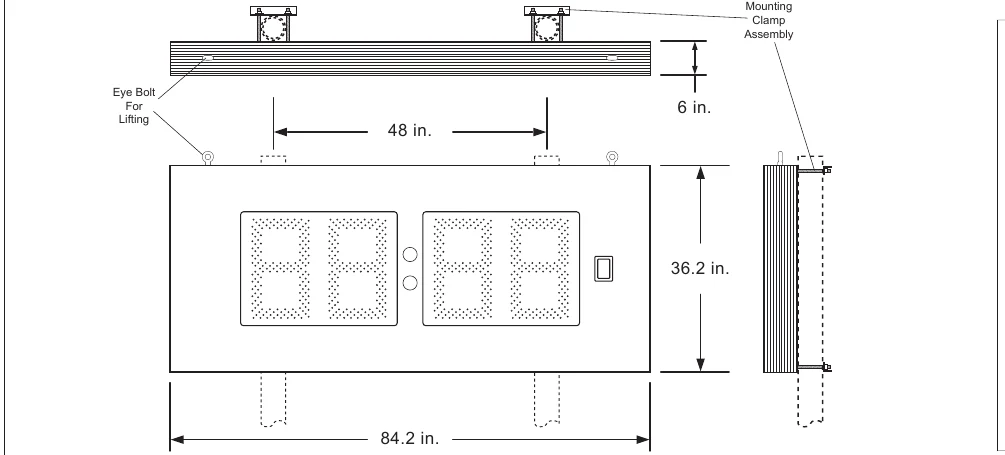

Cabinet Size, Weight	3 ft. x 7 ft. x 6 in., 90 lbs.
Electrical Requirements	0.8 amps, 120 VAC, 60 Hz
Digit Sizes	Game/Period Time: 18 in. tall (4 digits)
Standard Posts	2 each, maximum 4-1/2-inch diameter

Heavy duty extruded aluminum framing
Lightweight, rust free, all aluminum construction
Mounting hardware for permanent installation on two posts without the need for on site fabrication
Automotive grade baked on enamel based paint applied to the face
Choice of 18 standard paint colors
Red or Amber LED digits
LED circuit boards conformal coated for outdoor use
Simplified 15-key control console
Five-year limited warranty
ETL Listed to UL Standard 48 for Electric Signs
Toll free technical support via phone and online for the life of the product

ID Panels with custom graphics, in a variety of sizes, shapes, and styles, to mount above, below, or beside the scoreboard display
MP-style control console with additional features
ScoreLink RF modem system for wireless communication
Up to 1,000 feet of data cable for hardwired installations
Custom paint colors
Additional warranty and support plans
