Model LX1020 Cutsheet

LX1020 Portable Outdoor Baseball/Softball ScoreboardProduct Cut Sheet with Mechanical and Electrical Details

Download the original PDF (154 kB)

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

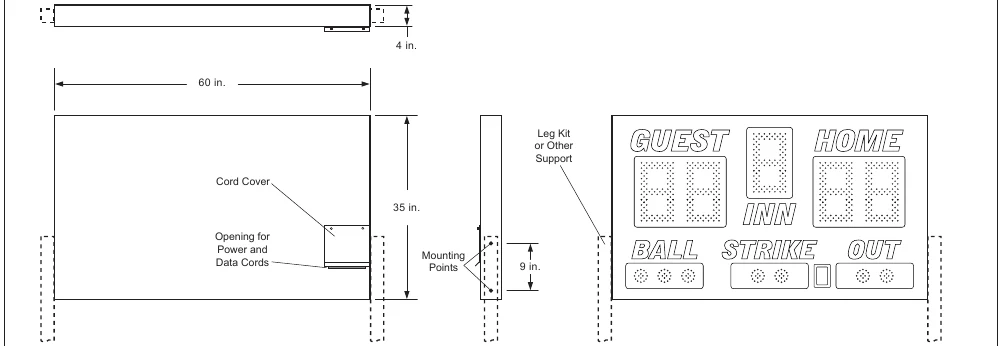

Dimensioned drawing of the LX1020 Portable Outdoor Baseball/Softball Scoreboard — Dimensioned drawing from the Model LX1020 Cutsheet — open the image for full size. Callouts: 4 in., 60 in., Leg Kit or Other Support, Cord Cover, 35 in., Opening for Power and Data Cords, Mounting Points, 9 in.

Quick specifications

Cabinet Size, Weight	35 in. x 60 in. x 4 in., 42 lbs.
Electrical Requirements	0.5 amps, 120 VAC, 60 Hz
Digit & Indicator Sizes	Guest Scores: 11 in. tall digits Home Scores: 11 in. tall digits Inning: 11 in. tall digit Ball-Strike-Out bullets: 3 in. diameter indicators

Standard equipment & features

Lightweight, rust free, all aluminum construction
Automotive grade baked on enamel based paint applied to the cabinet
Choice of 18 standard paint colors
Red or Amber LED digits and indicators
Simplified 15-key control console
Five-year limited warranty
ETL Listed to UL Standard 48 for Electric Signs
Toll free technical support via phone and online for the life of the product
T-Cart portable leg kit (may be deleted from some packages)

Optional equipment & features

ScoreLink RF modem system for wireless communication
Up to 1,000 feet of data cable for hardwired installations
MP-style control console with additional features
Custom paint colors
Additional warranty and support plans
