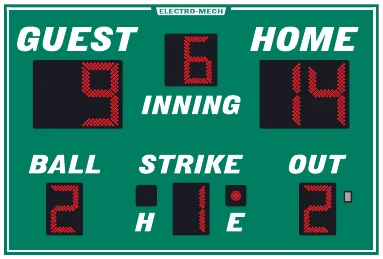

Model LX1260 Spec Sheet
OutdoorBaseball / Softball Scoreboard Display
Download the original PDF (115 kB)
This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.
Specifications
- Dimensions
- 8 ft. x 12 ft.
- Weight
- 300 lbs.
- Cabinet Material
- Aluminum
- Caption Height
- 9 in., 7 in.
- Accent Material
- 2.4 mil cast vinyl
- Digit Heights
- 24 in., 18 in.
- Indicator Size
- 4 in.
- Digit Colors
- Amber or Red
- Electrical
- 1.5 Amps, 120 VAC
Digits
Digits representing the Total Runs (Guest and Home Scores) are 24 inches tall. All other digits are 18 inches tall. Indicators are 4 inches in diameter. Digits and indicators are formed from matrices of super-bright, long-lasting, energy-efficient LEDs (Light Emitting Diodes). Choose either amber or red LEDs for all outdoor products. Our LED assemblies are protected by aluminum masks which allow the hard epoxy shells of the LEDs to be exposed for maximim viewing angles.
Standard equipment & features
- Double cabinet design with heavey duty extruded aluminum framing Light weight, rust free, all aluminum construction Automotive grade baked-on enamel based paint applied to the display face Choice of 18 standard paint colors Choice of amber or red LED digits Mounting hardware for permanent installation on posts without the need for on site fabrication LED circuit boards conformal coated for outdoor use Simplified 15-key control console Junction boxes and patch cables for hardwired instalations Five-year limited warranty Toll free technical support via phone and online for the life of the product ETL Listed to UL Standard 48 for Electric Signs
Optional equipment & upgrades
- Electronic Team Names Full-featured “MP” control console ID panels with custom graphics, in a variety of sizes, shapes, and styles, can be mounted above or below the display Full color video and other electronic display panels Stadium Sound System packages Custom paint colors Team name in place of HOME Up to 1,000 feet of data cable for hardwired installations ScoreLink wireless RF modem system for wireless communication Additional warranty and support plans
Paint color options
The colors named on this sheet are the standard range offered across the LX series. See them on the LX1260 color picker.
- Navy Blue
- Egyptian Blue
- Royal Blue
- Icy Blue
- Indigo Purple
- Power Purple
- Merchant Maroon
- Cardinal Red
- Racing Red
- Tiger Orange
- Golden Yellow
- Metallic Gold
- Silver Gray
- Shamrock Green
- Jolly Green
- Hunter Green
- Matte Black
