Quick specifications

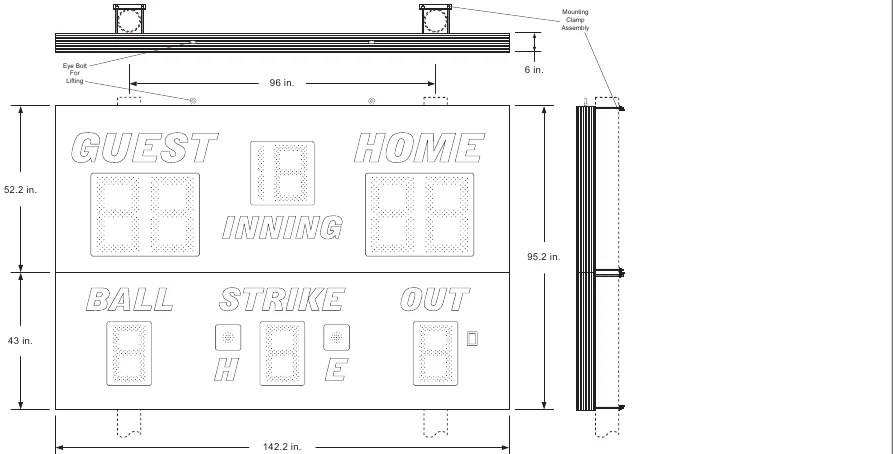

| Cabinet Size, Weight | 8 ft. x 12 ft., 300 lbs. |
|---|---|
| Electrical Requirements | 1.5 Amps, 120 VAC each |
| Standard Post Sizing | 2 each, max diameter 7 in. |
| Illuminated Element Sizes |
|
Standard equipment & features
- Heavy duty extruded aluminum framing
- Lightweight, rust free, all aluminum construction
- Mounting hardware for attaching each cabinet to posts
- Automotive grade baked on enamel based paint applied to the display face
- Choice of 18 standard paint colors
- Red or Amber LED digits
- Simplified 15-key control console
- ETL Listed to UL 48 Standard for Electric Signs
- Five-year limited warranty
- Toll free technical support via phone and online for the life of the product
Optional equipment & features
- Electronic Team Names
- Full-featured “MP” control console
- ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above, below, or beside the display
- Full color video and other electronic display panels
- Stadium Sound Systems
- Custom paint colors
- Team name in place of HOME
- Up to 1,000 feet of data cable for hardwired installations
- ScoreLink RF modem system for wireless communication
- Additional warranty and support plans
