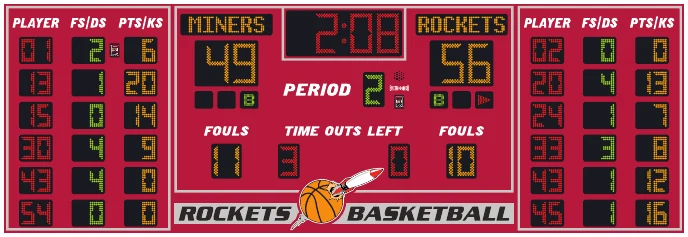

Model LX2556-ETN Spec Sheet

IndoorBasketball / Volleyball

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Specifications

Dimensions: 17 ft 10 in x 6 ft
Weight: 290 lb
Cabinet Material: Aluminum
Caption Height: 4 in, 3 in
Accent Material: 3 mil vinyl
Digit Height: 12 in, 9 in, 6 in
Indicator Size: 3 in
Digit Colors: Amber, Red, and Green
Electrical: 6.4 Amps, 120 VAC

Digits / Indicators

Guest Team Points, Home Team Points, and Period Clock digits are 12 inches tall, while Period, Team Fouls, and Time Outs Left are 9 inches tall. All other digits are 6 inches tall. Bonus and Possession indicators are 3 inches tall. Digits, ETN characters, and indicators are formed from matrices of super-bright, long-lasting, energy-efficient LEDs (Light Emitting Diodes). Standard LED colors for this scoreboard are amber, red, and green. Our LED assemblies are protected by aluminum masks that allow the hard epoxy shells of the LEDs to be exposed for maximum viewing angles.

Standard equipment & features

Single cabinet design with heavy duty extruded aluminum framing
Light weight, rust free, all aluminum construction
Mounting hardware for attaching the cabinet to a wall
Automotive grade baked on enamel based paint applied to the scoreboard face
Choice of 18 standard paint colors
Red, amber, and green LED displays
Internal horn
Data output port on scoreboard cabinet supports daisy chaining additional displays
Goal light output port supports optional LED backboard goal light kits
Two full-sized 37-key control consoles with LCD displays
Fifty programmable brightness levels
Main control console includes fully programmable Practice Segment Timer mode
Junction boxes and patch cables for hardwired installations

Optional equipment & upgrades

ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above, below, or beside the scoreboard
Center hung four-sided configuration available
Full color video and other electronic display panels
Custom paint colors
Up to 1,000 feet of data cable for hardwired installations (two runs required for this two-console system)
ScoreLink Wireless RF modem system for wireless communication (two sets required for this two- console system)
Additional warranty and support plans

ELECTRONIC TEAM NAMES (ETNs)

5-inch character height
9 x 48 pixel matrix
Three character fonts
Up to 9 characters per team

Paint color options

The colors named on this sheet are the standard range offered across the LX series. See them on the LX2556 color picker.

Navy Blue
Egyptian Blue
Royal Blue
Icy Blue
Indigo Purple
Power Purple
Merchant Maroon
Cardinal Red
Racing Red
Tiger Orange
Golden Yellow
Metallic Gold
Silver Gray
Shamrock Green
Jolly Green
Hunter Green
Matte Black
