Model LX8350 Cutsheet

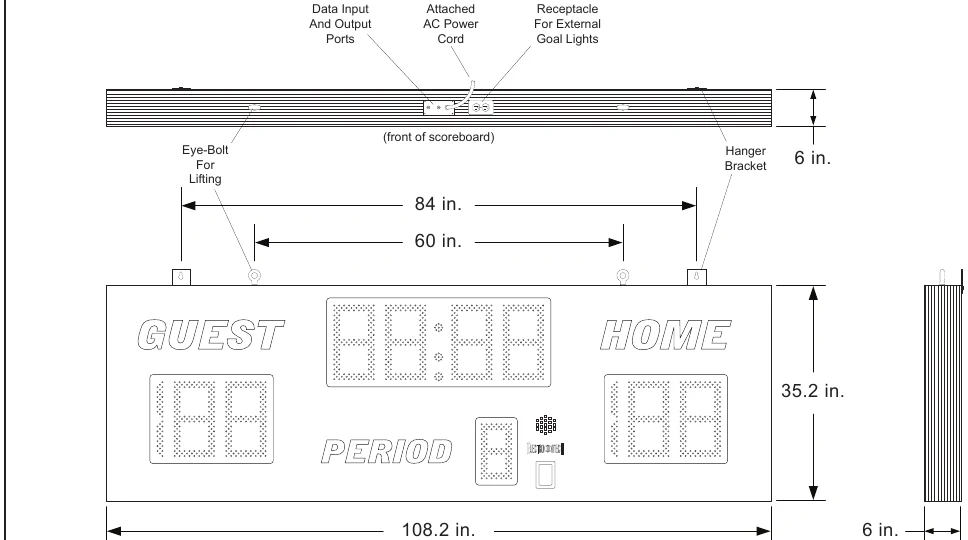

Indoor LED Hockey ScoreboardCutsheet with Mechanical Detail

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Quick specifications

Cabinet Size, Weight	9 ft. x 3 ft., 89 lbs.
Electrical Requirements	1.0 Amps, 120 VAC
Display Sizes	12 in. tall 4-digit Game Clock (MM:SS) 12 in. tall Home Score 12 in. tall Guest Score 9 in. tall Period

Single cabinet design with heavy duty extruded aluminum framing
Light weight, rust free, all aluminum construction
Mounting hardware for attaching the cabinet to a wall
Automotive grade baked on enamel based paint applied to the scoreboard face
Choice of 18 standard paint colors
Red, amber, and green LED displays
Internal horn
Data output port on scoreboard cabinet supports daisy chaining additional displays
Full-sized 37-key control console with LCD display
Fifty programmable brightness levels
Control console includes fully programmable Practice Segment Timer mode
Junction box and patch cable for hardwired installations
Five-year limited warranty
Toll free technical support via phone and online for the life of the product

Electronic Team Names
ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above or below the scoreboard
Extended configurations for ID panels built into the left or right side of the scoreboard cabinet
Center hung four-sided configuration available
Full color video and other electronic display panels
Custom paint colors
Team name in place of HOME
Up to 1,000 feet of data cable for hardwired installations
ScoreLink Wireless RF modem system for wireless communication
Additional warranty and support plans
