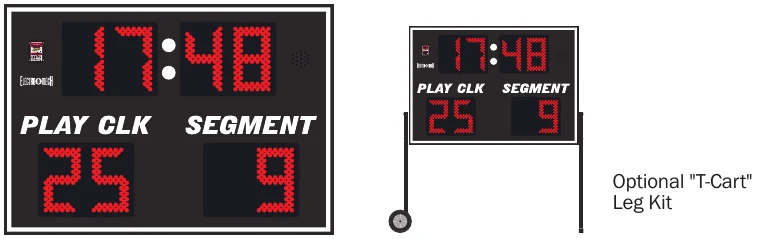

Model LX7620 Spec Sheet
OutdoorPortable Practice Segment Timer
Download the original PDF (448 kB)
This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.
Specifications
- Dimensions
- 5 ft x 3-1/2 ft
- Weight
- 45 lb
- Cabinet Material
- Aluminum
- Caption Height
- 3 in
- Accent Material
- 2.4 mil cast vinyl
- Digit Height
- 11 in
- Indicator Size
- N/A
- Digit Colors
- Amber or Red
- Electrical
- 0.7 Amps, 120 VAC
Digits / Indicators
All digits for this model are 11 inches tall and are formed from matrices of super-bright, long-lasting, energy-efficient LEDs (Light Emitting Diodes). Choose either amber or red LEDs for this model. Our LED assemblies are protected by aluminum masks that allow the hard epoxy shells of the LEDs to be exposed for maximum viewing angles.
Standard equipment & features
- Light weight, rust free, all aluminum construction
- Automotive grade baked on enamel based paint applied to all sides of the cabinet
- Choice of 18 standard paint colors
- Choice of amber or red LED displays
- LED display circuit scoreboards conformal coated for outdoor use
- Internally mounted horn
- Full-sized 37-key control console with LCD display
- Fifty programmable brightness levels
- Junction box and patch cable for hardwired installations
- Five-year limited warranty
- Toll free technical support via phone and online for the life of the product
Optional equipment & upgrades
- Sturdy, easy to assemble leg kit with wheels for portable use
- Custom paint colors
- Up to 1,000 feet of data cable for hardwired installations
- ScoreLink Wireless RF modem system for wireless communication
- Additional warranty and support plans
PRACTICE SEGMENT TIMER OPERATION
- Create up to 45 Practice Schedules
- Each Schedule may include up to 90 Periods
- Each Period marange from 1 to 99 Minutes
- Include an Interval between Periods from 0 to 9:59
- Auto and Manual horn Options
Paint color options
The colors named on this sheet are the standard range offered across the LX series. See them on the LX7620 color picker.
- Navy Blue
- Egyptian Blue
- Royal Blue
- Icy Blue
- Indigo Purple
- Power Purple
- Merchant Maroon
- Cardinal Red
- Racing Red
- Tiger Orange
- Golden Yellow
- Metallic Gold
- Silver Gray
- Shamrock Green
- Jolly Green
- Hunter Green
- Matte Black
