Quick specifications

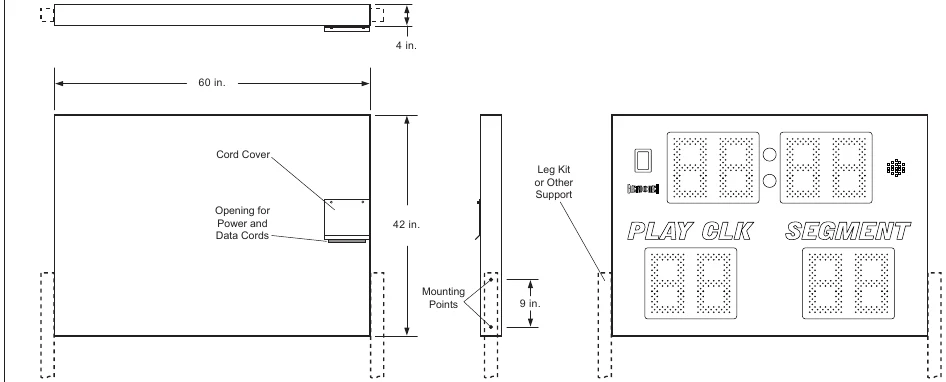

| Cabinet Size, Weight | 42 in. x 60 in. x 4 in., 45 lbs. |
|---|---|
| Electrical Requirements | 0.7 amps, 120 VAC, 60 Hz |
| Digit Sizes |
|
Standard equipment & features
- Lightweight, rust free, all aluminum construction
- Automotive grade baked on enamel based paint applied to the cabinet
- Choice of 18 standard paint colors
- Red or Amber LED digits
- Built-in Horn
- Full-sized 37-key control console with LCD display
- Control console includes fully programmable Practice Segment Timer mode
- Create up to 45 Schedules of up to 90 Segments
- Wired 3-button handheld switch assembly to operate Play Clock feature
- Two programmable reset values for Play Clock
- Select from 50 levels of LED brightness
- Five-year limited warranty
- ETL Listed to UL Standard 48 for Electric Signs
- Toll free technical support via phone and online for the life of the product
- T-Cart portable leg kit (may be deleted from some packages)
Optional equipment & features
- ScoreLink RF modem system for wireless communication
- Wireless handheld switch assemblies for operating Practice Timer features or Play Clock features (requires ScoreLink RF system)
- Up to 1,000 feet of data cable for hardwired installations
- Custom paint colors
- Additional warranty and support plans
