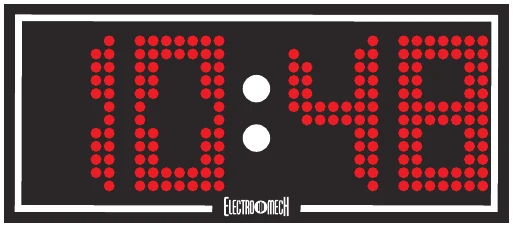

Model LX7406 Spec Sheet
IndoorLocker Room Clock
Download the original PDF (168 kB)
This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.
Specifications
- Dimensions
- 23 in x 10 in
- Weight
- 12 lb
- Cabinet Material
- Aluminum
- Caption Height
- N/A
- Accent Material
- 3 mil vinyl
- Digit Height
- 6 in
- Indicator Size
- N/A
- Digit Colors
- Red
- Electrical
- 0.3 Amps, 120 VAC
Digits / Indicators
All digits for this model are 6 inches tall and are formed from matrices of super-bright, long-lasting, energy-efficient LEDs (Light Emitting Diodes). Standard LED color for this clock is red. Our LED assemblies are protected by aluminum masks that allow the hard epoxy shells of the LEDs to be exposed for maximum viewing angles.
Standard equipment & features
- Light weight, rust free, alluminum cabinet
- Keyhole slots for wall mounting
- Matte black automotive grade baked on enamel based paint applied to the entire cabinet for maximum contrast
- Data output port on scoreboard cabinet supports daisy chaining additional displays
- Fifty programmable brightness levels
- Junction box and patch cable for hardwired installations
- Five-year limited warranty
- Toll free technical support via phone and online for the life of the product
Optional equipment & upgrades
- Full-sized 37-key control console with LCD display
- Up to 1,000 feet of data cable for hardwired installations
