Model LX7406 Cutsheet

Indoor LED Locker Room ClockCutsheet with Mechanical Detail

Download the original PDF (412 kB)

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

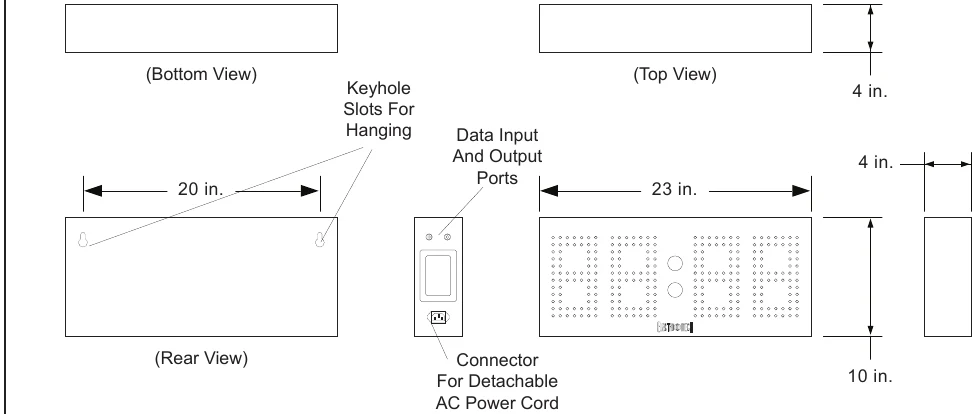

Dimensioned drawing of the Model LX7406 Indoor LED Locker Room Clock
Dimensioned drawing from the Model LX7406 Cutsheet — open the image for full size. Callouts: Keyhole Slots For Hanging, 4 in., Data Input And Output Ports, 20 in., 23 in., Connector For Detachable AC Power Cord, 10 in.

Quick specifications

Cabinet Size, Weight 23 in. x 10 in., 12 lbs.
Electrical Requirements 0.3 Amps, 120 VAC
Display Size 6 in. tall 4-Digit Game Clock

Standard equipment & features

  • Light weight, rust free, alluminum cabinet
  • Keyhole slots for wall mounting
  • Matte black automotive grade baked on enamel based paint applied to the entire cabinet for maximum contrast
  • Data output port on scoreboard cabinet supports daisy chaining additional displays
  • Fifty programmable brightness levels
  • Detachable AC Power cord
  • Junction box and patch cable
  • Five-year limited warranty
  • Toll free technical support via phone and online for the life of the product

Optional equipment & features

  • Full-sized 37-key control console with LCD display
  • Up to 1,000 feet of data cable per display for hardwired installations
  • ScoreLink Wireless RF modem system for wireless communication (two receiver units required)
  • Additional warranty and support plans

Related documents

Model
LX7406
Revision
Rev 2012-Oct.
