Model LX3880 Cutsheet

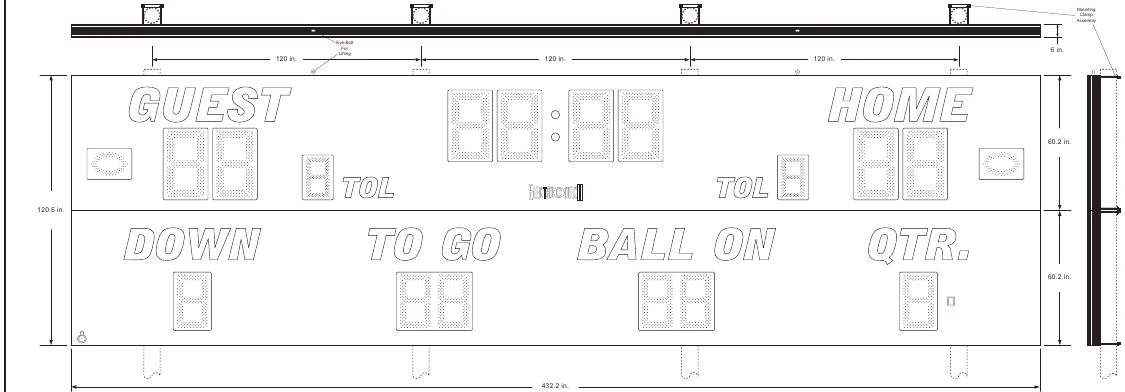

Outdoor LED Football ScoreboardCutsheet with Mechanical Detail

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Quick specifications

Cabinet Size, Weight	36 ft. x 10 ft., 950 lbs.
Electrical Requirements	3.0 Amps, 120 VAC
Display Sizes	30 in. tall Home Score 30 in. tall Guest Score 30 in. tall 4-Digit Game Clock 24 in. tall Down 24 in. tall To Go 24 in. tall Ball On 24 in. tall Quarter 18 in. tall Home Time Outs Left 18 in. tall Guest Time Outs Left 10 in. tall Possession Indicators
Standard Post Sizes	2 each, max diameter 7 in.

Double cabinet design with heavy duty extruded aluminum framing
Light weight, rust free, all aluminum construction
Mounting hardware for permanent installation on posts without the need for on site fabrication
Choice of 18 standard paint colors
Choice of amber or red LED displays
LED display circuit boards conformal coated for outdoor use
Internally mounted trumpet horn
Full-sized 37-key control console with LCD display
Fifty programmable brightness levels
Control console includes fully programmable Practice Segment Timer mode
Junction box and patch cable for hardwired installations
Five-year limited warranty
Toll free technical support via phone and online for the life of the product

Electronic Team Names
ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above, below, or beside the scoreboard
Full color video and other electronic display panels
Stadium Sound System packages
Custom paint colors
Team name in place of HOME
External horn kit
Up to 1,000 feet of data cable for hardwired installations
ScoreLink Wireless RF modem system for wireless communication
Additional warranty and support plans
