Model LX2340-ETN Spec Sheet

IndoorBasketball / Multi-Sport

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Specifications

Dimensions: 8 ft x 4 ft
Weight: 90 lb
Cabinet Material: Aluminum
Caption Height: 4 in
Accent Material: 3 mil vinyl
Digit Height: 12 in, 9 in
Indicator Size: 3 in
Digit Colors: Amber, Red, and Green
Electrical: 2.0 Amps, 120 VAC

Digits / Indicators

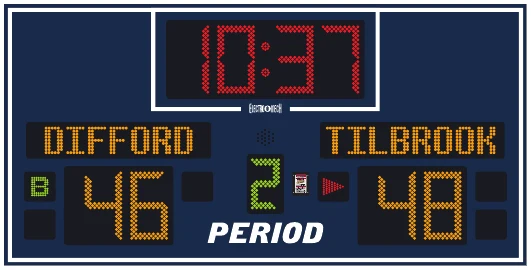

Guest Team Points, Home Team Points, and Period Clock digits are 12 inches tall, while the Period digit is 9 inches tall. Bonus and Possession indicators are 3 inches tall. Digits, ETN characters, and indicators are formed from matrices of super-bright, long-lasting, energy-efficient LEDs (Light Emitting Diodes). Standard LED colors for this model are amber, red, and green. Our LED assemblies are protected by aluminum masks that allow the hard epoxy shells of the LEDs to be exposed for maximum viewing angles.

Standard equipment & features

Single cabinet design with heavy duty extruded aluminum framing
Light weight, rust free, all aluminum construction
Mounting hardware for attaching the cabinet to a wall
Automotive grade baked on enamel based paint applied to the scoreboard face
Choice of 18 standard paint colors
Red, amber, and green LED displays
Internal horn
Data output port on scoreboard cabinet supports daisy chaining additional displays
Goal light output port supports optional LED backboard goal light kits
Full-sized 37-key control console with LCD display
Fifty programmable brightness levels
Control console includes fully programmable Practice Segment Timer mode
Junction box and patch cable for hardwired installations

Optional equipment & upgrades

ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above or below the scoreboard
Extended configurations for ID panels built into the left or right side of the scoreboard cabinet
Center hung four-sided configuration available
Full color video and other electronic display panels
Custom paint colors
Up to 1,000 feet of data cable for hardwired installations
ScoreLink Wireless RF modem system for wireless communication
Additional warranty and support plans

ELECTRONIC TEAM NAMES (ETNs)

5-inch character height
9 x 56 pixel matrix
Three character fonts
Up to 11 characters per team

Paint color options

The colors named on this sheet are the standard range offered across the LX series. See them on the LX2340 color picker.

Navy Blue
Egyptian Blue
Royal Blue
Icy Blue
Indigo Purple
Power Purple
Merchant Maroon
Cardinal Red
Racing Red
Tiger Orange
Golden Yellow
Metallic Gold
Silver Gray
Shamrock Green
Jolly Green
Hunter Green
Matte Black
