Quick specifications

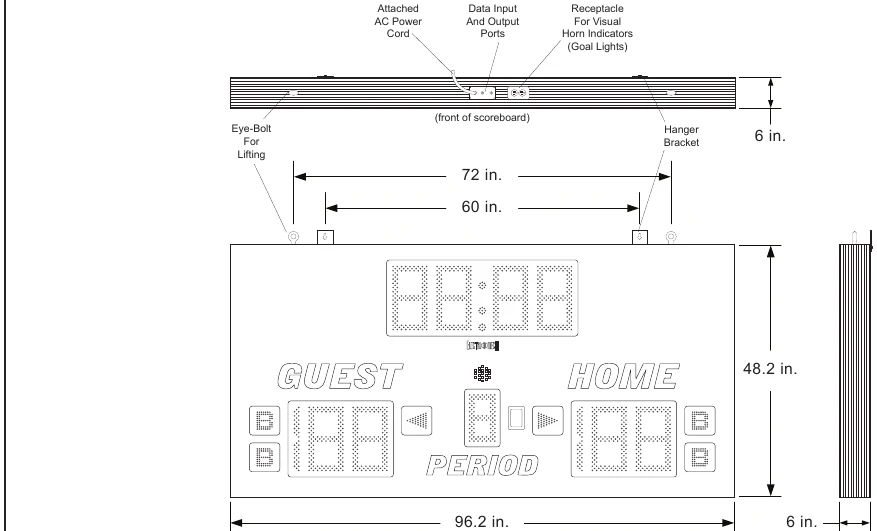

| Cabinet Size, Weight | 8 ft. x 4 ft., 90 lbs. |
|---|---|
| Electrical Requirements | 1.2 Amps, 120 VAC |
| Display Sizes |
|
Standard equipment & features
- Single cabinet design with heavy duty extruded aluminum framing
- Light weight, rust free, all aluminum construction
- Mounting hardware for attaching the cabinet to a wall
- Automotive grade baked on enamel based paint applied to the scoreboard face
- Choice of 18 standard paint colors
- Red, amber, and green LED displays
- Internal horn
- Data output port on scoreboard cabinet supports daisy chaining additional displays
- Goal light output port supports optional LED backboard goal light kits
- Full-sized 37-key control console with LCD display
- Fifty programmable brightness levels
- Control console includes fully programmable Practice Segment Timer mode
- Junction box and patch cable for hardwired installations
Optional equipment & features
- Electronic Team Names
- ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above or below the scoreboard
- Extended configurations for ID panels built into the left or right side of the scoreboard cabinet
- Center hung four-sided configuration available
- Full color video and other electronic display panels
- Custom paint colors
- Team name in place of HOME
- Up to 1,000 feet of data cable for hardwired installations
- ScoreLink Wireless RF modem system for wireless communication
- Additional warranty and support plans
