Model LX2160 Cutsheet

Indoor LED Shot Clock SetCutsheet with Mechanical Detail

Download the original PDF (458 kB)

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

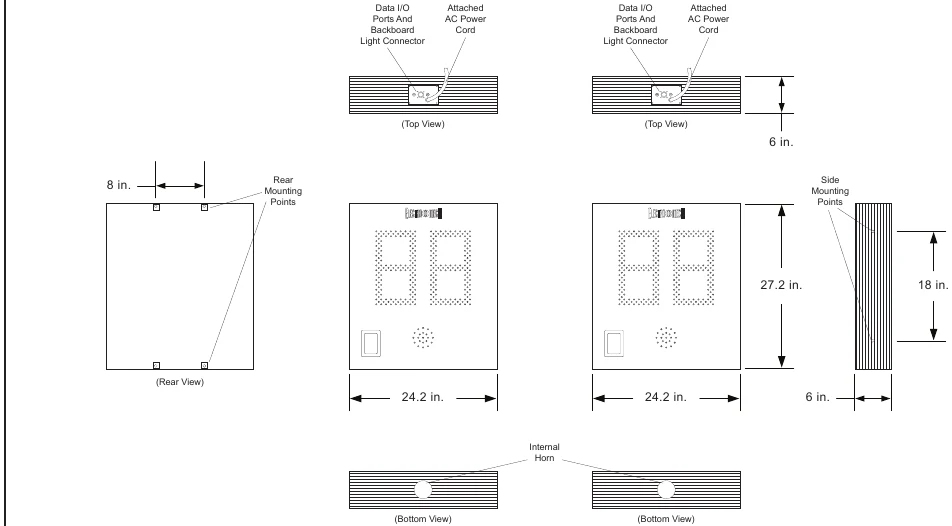

Dimensioned drawing of the Model LX2160 Indoor LED Shot Clock Set
Dimensioned drawing from the Model LX2160 Cutsheet — open the image for full size. Callouts: Data I/O Ports And Backboard Light Connector, Attached AC Power Cord, 6 in., 8 in., Rear Mounting Points, Side Mounting Points, 27.2 in., 18 in., 24.2 in., Internal Horn.

Quick specifications

Cabinet Size, Weight 24 in. x 27 in., 20 lbs. each
Electrical Requirements 0.3 Amps, 120 VAC each
Display Sizes
  • 12 in. tall 2-Digit Shot Clock
  • 4 in. Visual Horn Indicator

Standard equipment & features

  • Heavy duty extruded aluminum framing
  • Tapped hardware in the rear and along the sides of each cabinet allows for multiple mounting options
  • Matte black automotive grade baked on enamel based paint applied to the scoreboard faces for maximum contrast
  • Internal horn in each cabinet
  • Data output port on each cabinet supports daisy chaining additional displays
  • Output port supports optional LED backboard goal light kits
  • Handheld three-button controller attaches to main control console, allowing the Shot Clock operator to work without interference
  • Junction boxes and patch cables for hardwired installations
  • Five-year limited warranty
  • Toll free technical support via phone and online for the life of the product

Optional equipment & features

  • Full-sized 37-key control console with LCD display
  • Up to 1,000 feet of data cable per display for hardwired installations
  • ScoreLink Wireless RF modem system for wireless communication (two receiver units required)
  • Additional warranty and support plans

Related documents

Model
LX2160
Revision
Rev 2012-Oct.
