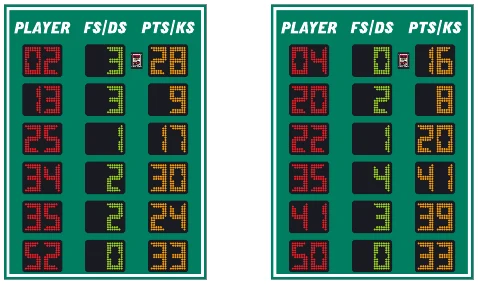

Model LX2056 Spec Sheet
IndoorBasketball / Volleyball
Download the original PDF (279 kB)
This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.
Specifications
- Dimensions
- 4 ft 5 in x 6 ft each
- Weight
- 80 lb each
- Cabinet Material
- Aluminum
- Caption Height
- 3 in
- Accent Material
- 3 mil vinyl
- Digit Height
- 6 in
- Indicator Size
- N/A
- Digit Colors
- Amber, Red, and Green
- Electrical
- 2.1 Amps, 120 VAC each
Digits / Indicators
All digits for this model are 6 inches tall and are formed from matrices of super-bright, long-lasting, energy-efficient LEDs (Light Emitting Diodes). Standard LED colors for this model are amber, red, and green. Our LED assemblies are protected by aluminum masks that allow the hard epoxy shells of the LEDs to be exposed for maximum viewing angles.
Standard equipment & features
- Two separate displays, each using a single cabinet design with heavy duty extruded aluminum framing
- Light weight, rust free, all aluminum construction
- Mounting hardware for attaching each cabinet to a wall
- Automotive grade baked on enamel based paint applied to the scoreboard face
- Choice of 18 standard paint colors
- Red, amber, and green LED displays
- Internal horn
- Data output port on scoreboard cabinet supports daisy chaining additional displays
- Full-sized 37-key control console with LCD display
- Fifty programmable brightness levels
- Junction boxes and patch cables for hardwired installations
- Five-year limited warranty
- Toll free technical support via phone and online for the life of the product
Optional equipment & upgrades
- ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above, below, or beside each cabinet
- Full color video and other electronic display panels
- Custom paint colors
- Up to 1,000 feet of data cable per cabinet for hardwired installations
- ScoreLink Wireless RF modem system for wireless communication (two receiver units required)
- Additional warranty and support plans
Paint color options
The colors named on this sheet are the standard range offered across the LX series. See them on the LX2056 color picker.
- Navy Blue
- Egyptian Blue
- Royal Blue
- Icy Blue
- Indigo Purple
- Power Purple
- Merchant Maroon
- Cardinal Red
- Racing Red
- Tiger Orange
- Golden Yellow
- Metallic Gold
- Silver Gray
- Shamrock Green
- Jolly Green
- Hunter Green
- Matte Black
