Quick specifications

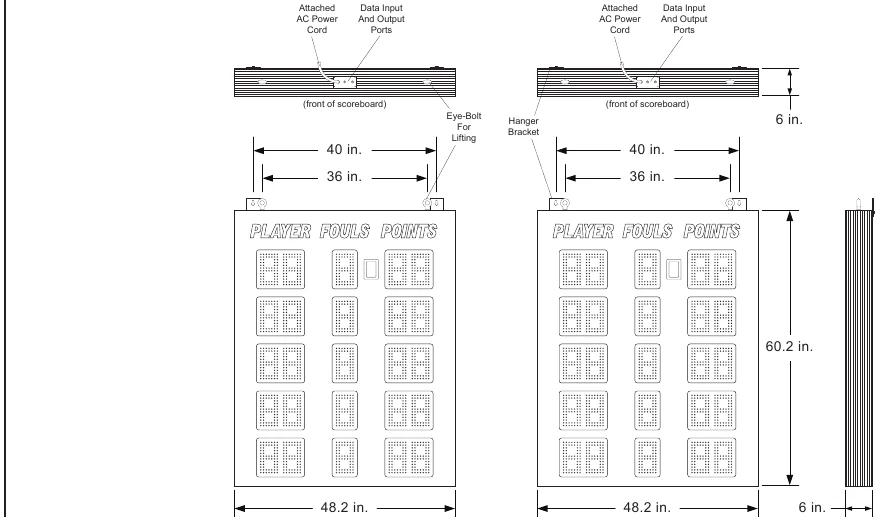

| Cabinet Size, Weight | 4 ft. x 5 ft., 70 lbs. each |
|---|---|
| Electrical Requirements | 1.5 Amps, 120 VAC each |
| Display Sizes |
|
Standard equipment & features
- Two separate displays, each using a single cabinet design with heavy duty extruded aluminum framing
- Light weight, rust free, all aluminum construction
- Mounting hardware for attaching each cabinet to a wall
- Automotive grade baked on enamel based paint applied to the scoreboard face
- Choice of 18 standard paint colors
- Red, amber, and green LED displays
- Data output port on each scoreboard cabinet supports daisy chaining additional displays
- Full-sized 37-key control console with LCD display
- Fifty programmable brightness levels
- Junction boxes and patch cables for hardwired installations
- Five-year limited warranty
- Toll free technical support via phone and online for the life of the product
Optional equipment & features
- ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above, below, or beside each cabinet
- Full color video and other electronic display panels
- Custom paint colors
- Up to 1,000 feet of data cable per cabinet for hardwired installations
- ScoreLink Wireless RF modem system for wireless communication (two receiver units required)
- Additional warranty and support plans
