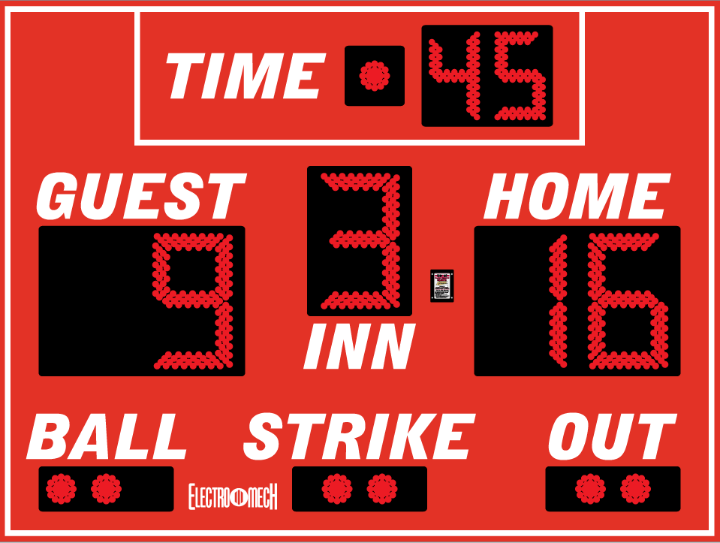

Model LX1136 Baseball Scoreboard

The LX113x series offers a lot of scoreboard options in a small package.  We started with our simple LX1030 design, which features bullet-style Ball, Strike, and Out Counts along with 18-inch tall numbers for Runs and Inning.  We added two feet to the cabinet, bringing the size up to 8 feet x 6 feet.  This provides space for either Pitch Counts, a Timer, or both.  Like many of our smaller scoreboards, these Softball/Baseball models can be configured with a built-in side ID panel for advertisements, team logos, or other artwork.

Model LX1136 offers 11-inch tall LED digits forming a 2-digit Timer to count Minutes.  The information shown on this scoreboard matches what you see on our popular Model LX1340, but in a slightly smaller package, at a slightly better price, and using a more conventional layout for Ball, Strike, and Out Counts.
  • Dimensions: 8 ft x 6 ft 11 ft × 3 ft 11 ft × 3 ft
  • Weight: 180 lb 480 lbs 480 lbs
  • Digit Height: 18 in, 11 in
  • Electrical: 120 VAC, 1.2 amps 120 VAC, 4.8 amps 120 VAC, 7.6 amps

Choose Colors:

  • Scoreboard Face
  • Accent Striping
  • LED Color
  • Currently Showing:
  • Racing Red White White Red
  • New Selection:

Documentation and Details:

  • Specifications
  • Owner's Manuals
Model LX1136 Installation Examples:
  • Tallassee Softball League
    Tallassee, AL, 36078
  • 8 Oaks Park
    Georgetown, SC, 29440
  • Locklear Ball Field
    Goose Creek, SC, 29445
  • Georgetown County Parks & Rec
    Georgetown, SC, 29440
  • Mills Co.Youth Sports Assoc.
    Goldthwaite, TX, 76844
  • Rincon Rec
    Savannah, GA, 31408
  • Locklear Ball Field
    Goose Creek, SC, 29445
  • Abbeville Rec
    Abbeville, AL, 36303
  • Dothan NTL LGE 1st
    Dothan, AL, 36303
  • Webb Rec
    Webb, AL, 36376
  • Taylor Rohobeth Park
    Dothan, AL, 36302
  • Chincoteague High School
    Chincoteague Island, VA, 23336
  • Phil Hardin Upper Field 3
    Meridian, MS, 39307
  • Coweta County Rec.Dept
    Newnan, GA, 30263
  • Tom Ludtke
    Hartland, WI, 53029
  • Dublin/Laurens Co.Rec (Pick-Up)
    Dublin, GA, 31021
  • Manchester Parks & Recreation
    Manchester, GA, 31816
  • Van Buren Youth Sports
    Van Buren, IN, 46991
