Model LX7770-ETN Cutsheet

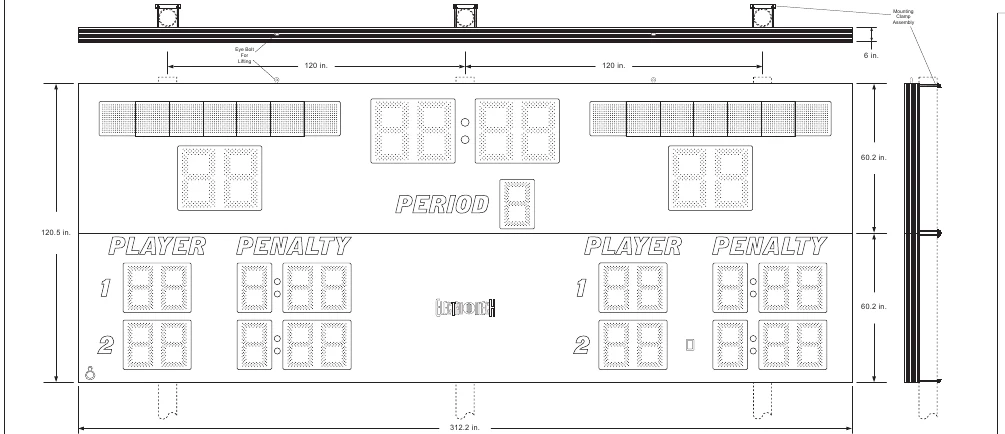

LX7770-ETN Outdoor Lacrosse / Field Hockey ScoreboardProduct Cut Sheet with Mechanical and Electrical Details

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Quick specifications

Cabinet Size, Weight	10 ft. x 26 ft. x 6 in., 800 lbs.
Electrical Requirements	12.1 amps, 120 VAC, 60 Hz
Digit & ETN Sizes	Period Time: 24 in. tall (4 digits) Points/Scores: 24 in. tall (2 digits each) Period: 18 in. tall (2 digits) Player Numbers and Penalty Timers: 18 in. tall (4 sets of 5 digits) Electronic Team Names: 14x112 pixels, 11 in. x 94 in. display area (each)
Standard Posts	3 each, maximum 7-inch diameter

Double cabinet constructions with heavy duty extruded aluminum framing
Lightweight, rust free, all aluminum construction
Mounting hardware for permanent installation on three posts without the need for on site fabrication
Automotive grade baked on enamel based paint applied to the face
Choice of 18 standard paint colors
Red or Amber LED digits
LED circuit boards conformal coated for outdoor use
Built-in Horn with projector
Full-sized 37-key control console with LCD display
Select from 50 levels of LED brightness
Five-year limited warranty
ETL Listed to UL Standard 48 for Electric Signs
Toll free technical support via phone and online for the life of the product

ID Panels with custom graphics, in a variety of sizes, shapes, and styles, to mount above, below, or beside the scoreboard display
Full color video and other electronic display panels
Stadium sound system packages
Accessory scoreboard displays including Shot Clocks, Play Clocks, and Locker Room Clocks
ScoreLink RF modem system for wireless communication
Up to 1,000 feet of data cable for hardwired installations
Custom paint colors
Additional warranty and support plans
