Model LX7740-ETN Cutsheet

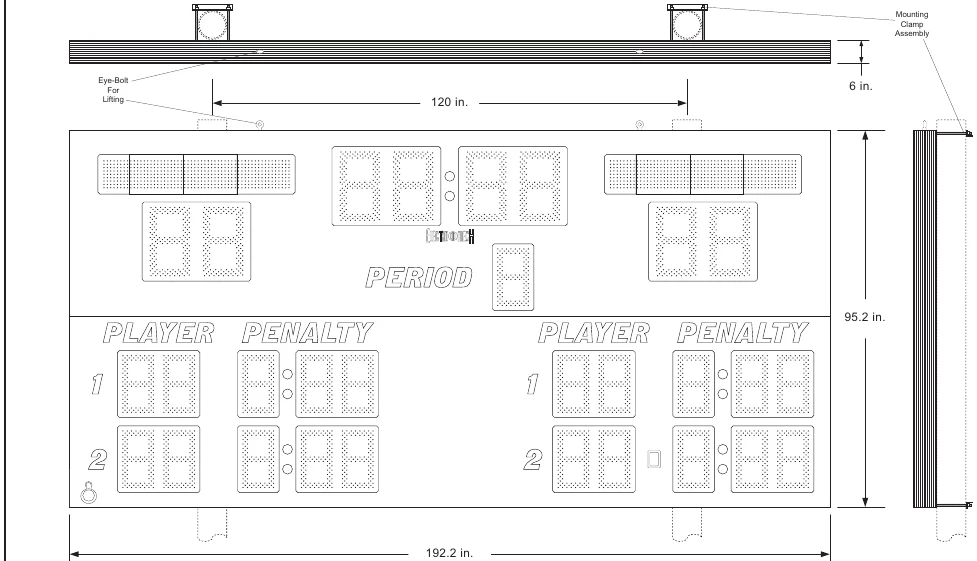

Outdoor LED Lacrosse ScoreboardCutsheet with Mechanical Detail

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Quick specifications

Cabinet Size, Weight	16 ft. x 8 ft. x 6 in., 350 lbs.
Electrical Requirements	6.7 Amps, 120 VAC
Display Sizes	18 in. tall 4-Digit Game Clock 18 in. tall Guest Scores 18 in. tall Home Scores 15 in. tall Period 15 in. tall Home Player Number 1 15 in. tall Home Player Number 2 15 in. tall Guest Player Number 1 15 in. tall Guest Player Number 2 15 in. tall Home Penalty Clock 1 15 in. tall Home Penalty Clock 2 15 in. tall Guest Penalty Clock 1 15 in. tall Guest Penalty Clock 2 7 in. tall 9 x 56 pixel ETNs
Standard Post Sizes	2 each, max diameter 7 in.

Double cabinet design with heavy duty extruded aluminum framing
Light weight, rust free, all aluminum construction
Mounting hardware for permanent installation on two posts without the need for on site fabrication
Automotive grade baked on enamel based paint applied to the scoreboard face
Choice of 18 standard paint colors
Choice of amber or red LED displays
Trumpet horn mounted internally
LED display circuit boards conformal coated for outdoor use
Full-sized 37-key control console with LCD display
50 levels of brightness selectable from the console to reduce glare at night
Control console includes fully programmable Practice Segment Timer mode
Junction box and patch cable for hardwired installations
Five-year limited warranty
Toll free technical support via phone and online for the life of the product

ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above, below, or beside the scoreboard
Full color video and other electronic display panels
Stadium Sound System packages
Custom paint colors
Up to 1,000 feet of data cable for hardwired installations
ScoreLink Wireless RF modem system for wireless communication
Additional warranty and support plans
