Quick specifications

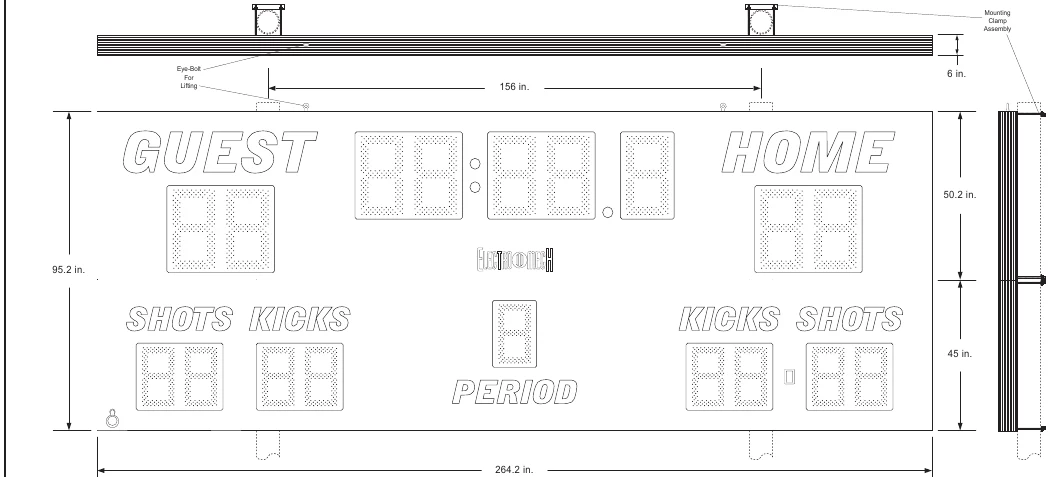

| Cabinet Size, Weight | 22 ft. x 8 ft., 500 lbs. |
|---|---|
| Electrical Requirements | 3.1 Amps, 120 VAC |
| Display Sizes |
|
| Standard Post Sizes | 2 each, max diameter 7 in. |
Standard equipment & features
- Double cabinet design with heavy duty extruded aluminum framing
- Light weight, rust free, all aluminum construction
- Mounting hardware for permanent installation on posts without the need for on site fabrication
- Automotive grade baked on enamel based paint applied to the scoreboard face
- Choice of 18 standard paint colors
- Choice of amber or red LED displays
- LED display circuit boards conformal coated for outdoor use
- Internal Horn with Projector
- Full-sized 37-key control console with LCD display
- Select from 50 levels of LED brightness
- Control console includes fully programmable Practice Segment Timer mode
- Junction box and patch cable for hardwired installations
- Five-year limited warranty
- Toll free technical support via phone and online for the life of the product
Optional equipment & features
- Electronic Team Names
- ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above, below, or beside the scoreboard
- Full color video and other electronic display panels
- Stadium Sound System packages
- Custom paint colors
- Team name in place of HOME
- External Horn Kit
- Up to 1,000 feet of data cable for hardwired installations
- ScoreLink Wireless RF modem system for wireless communication
- Additional warranty and support plans
