Quick specifications

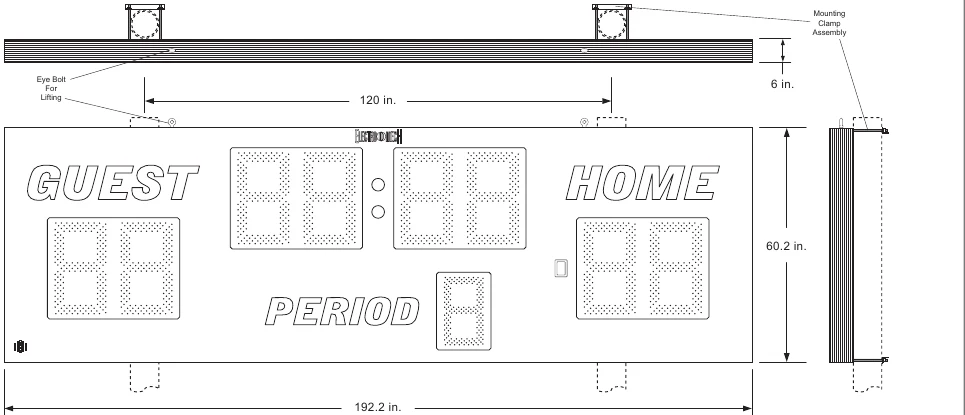

| Cabinet Size, Weight | 16 ft x 5 ft, 250 lb |
|---|---|
| Electrical Requirements | 1.5 Amps, 120 VAC |
| Display Sizes |
|
| Standard Post Size | 2 each, 7-inch maximum diameter |
Standard equipment & features
- Single cabinet design with heavy duty extruded aluminum framing
- Lightweight, rust free, all aluminum construction
- Mounting hardware for permanent installation on two posts without the need for on site fabrication
- Automotive grade baked on enamel based paint applied to the display face
- Choice of 18 standard paint colors
- Choice of amber or red LED digits and indicators
- LED circuit boards conformal coated for outdoor use
- Internally mounted horn
- Full-sized 37-key control console with LCD display
- Select from 50 levels of LED brightness
- Control console includes fully programmable Practice Segment Timer mode
- Five-year limited warranty
- Toll free technical support via phone and online for the life of the product
Optional equipment & features
- Electronic Team Names
- ID panels with custom graphics, in a variety of sizes, shapes, and styles to mount above, below, or beside the scoreboard display
- Extended configurations for ID panels built into the left or right of the cabinet
- Full color video and other electronic display panels
- Stadium sound system
- Custom paint colors
- Team name in place of HOME
- Up to 1,000 feet of sigal cable for hardwired installations
- ScoreLink RF modem system for wireless communication
- Additional warranty and support plans
