Model LX6324 Cutsheet

LX6324 Portable Outdoor Multi-Sport ScoreboardProduct Cut Sheet with Mechanical and Electrical Details

Download the original PDF (158 kB)

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

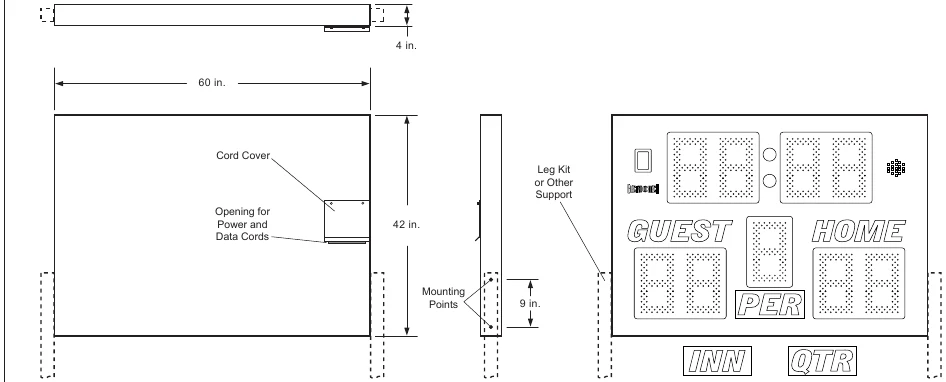

Dimensioned drawing of the LX6324 Portable Outdoor Multi-Sport Scoreboard — Dimensioned drawing from the Model LX6324 Cutsheet — open the image for full size. Callouts: 4 in., 60 in., Cord Cover, Leg Kit or Other Support, Opening for Power and Data Cords, 42 in., Mounting Points, 9 in.

Quick specifications

Cabinet Size, Weight	42 in. x 60 in. x 4 in., 40 lbs.
Electrical Requirements	0.8 amps, 120 VAC, 60 Hz
Digit Sizes	Period/Game Time: 11 in. tall (4 digits) Guest Score: 11 in. tall (2 digits) Home Score: 11 in. tall (2 digits) Period/Inning/Quarter: 11 in. tall (1 digit)

Standard equipment & features

Reversible captions for Soccer, Baseball, Football, etc.
Lightweight, rust free, all aluminum construction
Automotive grade baked on enamel based paint applied to the cabinet
Choice of 18 standard paint colors
Red or Amber LED digits
Built-in Horn
Full-sized 37-key control console with LCD display
Control console includes fully programmable Practice Segment Timer mode
Create up to 45 Schedules of up to 90 Segments
Select from 50 levels of LED brightness
Five-year limited warranty
ETL Listed to UL Standard 48 for Electric Signs
Toll free technical support via phone and online for the life of the product
T-Cart portable leg kit (may be deleted from some packages)

Optional equipment & features

ScoreLink RF modem system for wireless communication
Up to 1,000 feet of data cable for hardwired installations
Custom paint colors
Additional warranty and support plans
