Model LX3360-ETN Mechanical Cut Sheet

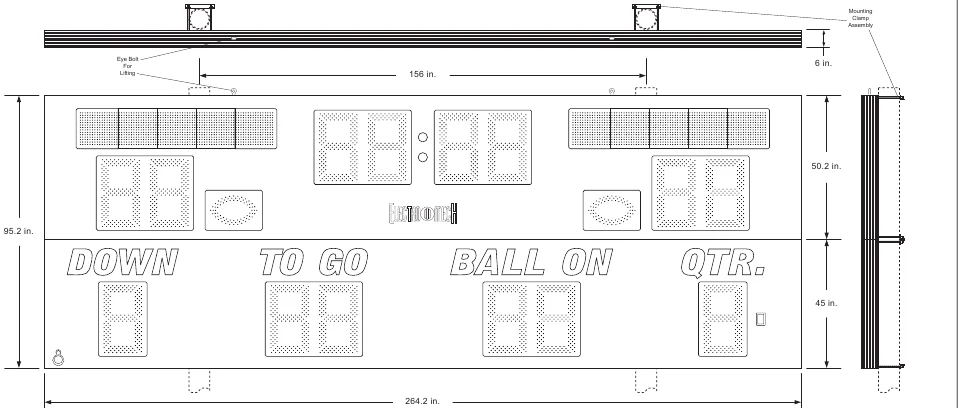

LX3360-ETN Outdoor Football ScoreboardCut Sheet with Mechanical Detail

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Quick specifications

Cabinet Size, Weight	22 ft x 8 ft, 550 lb
Electrical Requirements	7.3 Amps, 120 VAC
Display Sizes	24 in tall 2-digit Scores 24 in tall 4-digit Period Timer 10 in tall Possession Indicators 24 in tall 1-digit Quarter 24 in tall 1-digit Down Count 24 in tall 2-digit Ball On 24 in tall 2-digit To Go 11 in tall 14x80 pixel ETNs
Standard Post Size	2 each, 7-inch maximum diameter

Double cabinet design with heavy duty extruded aluminum framing
Lightweight, rust free, all aluminum construction
Mounting hardware for permanent installation on posts without the need for on site fabrication or welding
Automotive grade baked on enamel based paint applied to the display face
Choice of 18 standard paint colors
Choice of amber or red LED digits and indicators
LED circuit boards conformal coated for outdoor use
Internally mounted horn with trumpet-style projector
Full-sized 37-key control console with LCD display
Select from 50 levels of LED brightness
Control console includes fully programmable Practice Segment Timer mode
Five-year limited warranty
Toll free technical support via phone and online for the life of the product

ID panels with custom graphics, in a variety of sizes, shapes, and styles to mount above, below, or beside the scoreboard display
Full color video and other electronic display panels
Stadium sound system packages
Custom paint colors
Up to 1,000 feet of sigal cable for hardwired installations
ScoreLink RF modem system for wireless communication
Additional warranty and support plans
