Model LX3054 Color Spec Sheet
OutdoorFootball Play Clock Set
Download the original PDF (109 kB)
This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.
Specifications
- Dimensions
- 54 in x 54 in (each)
- Weight
- 60 lb (each)
- Cabinet Material
- Aluminum
- Caption Height
- N/A
- Accent Material
- 2.4 mil cast vinyl
- Digit Height
- 24 in, 15 in
- Indicator Size
- N/A
- Digit Colors
- Amber or Red
- Electrical
- 0.9 Amps, 120 VAC
Digits / Indicators

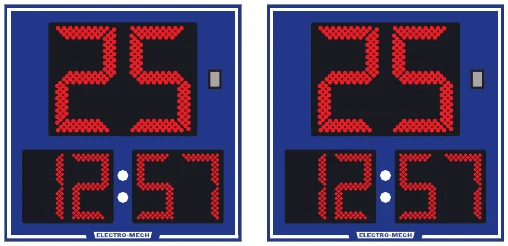

Digits representing the Play Clock Time (Delay of Game Time) are 24 inches tall. Digits representing the Game Time are 15 inches tall. All digits are formed from matrices of super-bright, long-lasting, energy-efficient LEDs (Light Emitting Diodes). Choose either amber or red LEDs for all outdoor products. Our LED assemblies are protected by aluminum masks which allow the hard epoxy shells of the LEDs to be exposed for maximum viewing angles.
Standard equipment & features
- Light weight, rust free, all aluminum construction
- Automotive grade baked on enamel based paint applied to the display faces
- Choice of 18 standard paint colors
- Choice of amber or red LED displays
- LED display circuit scoreboards conformal coated for outdoor use
- Wired handheld switch assembly
- Full-sized 37-key control console with LCD display
- Fifty programmable brightness levels Junction box and patch cable for hardwired installations Five-year limited warranty Toll free technical support via phone and online for the life of the product
- ETL Listed to UL Standard 48 for Electric Signs
Optional equipment & upgrades
- ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above or below the displays
- Custom paint colors
- Up to 1,000 feet of data cable per display for hardwired installations
- ScoreLink Wireless RF modem system for wireless communication (two receivers required)
- Wireless handheld switch assembly for operation of the Play Clocks from the sidelines
- Additional warranty and support plans
Paint color options
The colors named on this sheet are the standard range offered across the LX series. See them on the LX3054 color picker.
- Navy Blue
- Egyptian Blue
- Royal Blue
- Icy Blue
- Indigo Purple
- Power Purple
- Merchant Maroon
- Cardinal Red
- Racing Red
- Tiger Orange
- Golden Yellow
- Metallic Gold
- Silver Gray
- Shamrock Green
- Jolly Green
- Hunter Green
- Matte Black
