Quick specifications

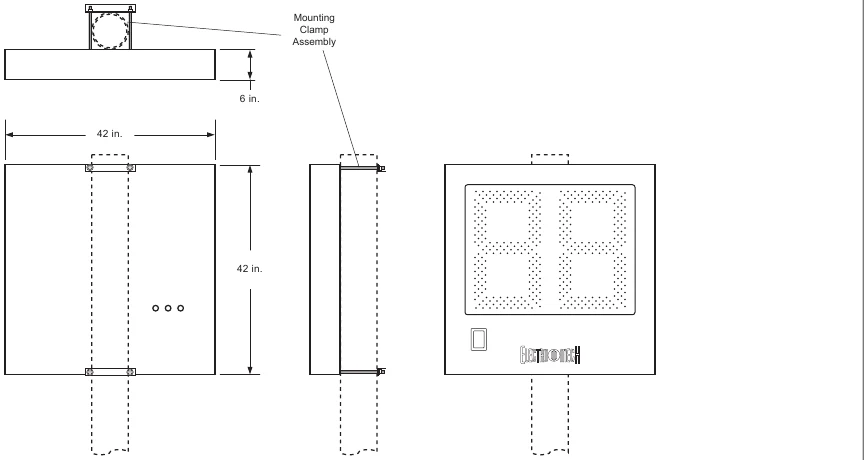

| Cabinet Size, Weight | 42 in. x 42 in., 40 lbs. each |
|---|---|
| Electrical Requirements | 0.4 Amps, 120 VAC each |
| Maximum Post Diameter | 7 inches |
| Display Sizes | 24 in. tall Play Clock Time |
Standard equipment & features
- Heavy duty extruded aluminum framing
- Lightweight, rust free, all aluminum construction
- Mounting hardware for attaching each cabinet to a post
- Automotive grade baked on enamel based paint applied to the display face
- Choice of 18 standard paint colors
- Red or Amber LED digits
- Full-sized 37-key control console with LCD display
- Select from 50 levels of LED brightness
- Control console includes fully programmable Practice Segment Timer mode
- Wired 3-button handheld switch assembly
- Two programmable reset values
- Junction box and patch cable for hardwired installations
- Five-year limited warranty
- Toll free technical support via phone and online for the life of the product
Optional equipment & features
- ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above, below, or beside the Play Clock displays
- Extended configurations for ID panels built into the left of right of the Play Clock cabinets
- Full color video and other electronic display panels
- Custom paint colors
- Up to 1,000 feet of data cable for hardwired installations -- two runs required for a pair of Play Clock displays
- ScoreLink RF modem system for wireless communication -- two receivers required for a pair of Play Clock displays
- Additional warranty and support plans
