Model LX2745-ETN Cutsheet

Indoor LED Multi-Sport ScoreboardCutsheet with Mechanical Detail

Download the original PDF (637 kB)

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

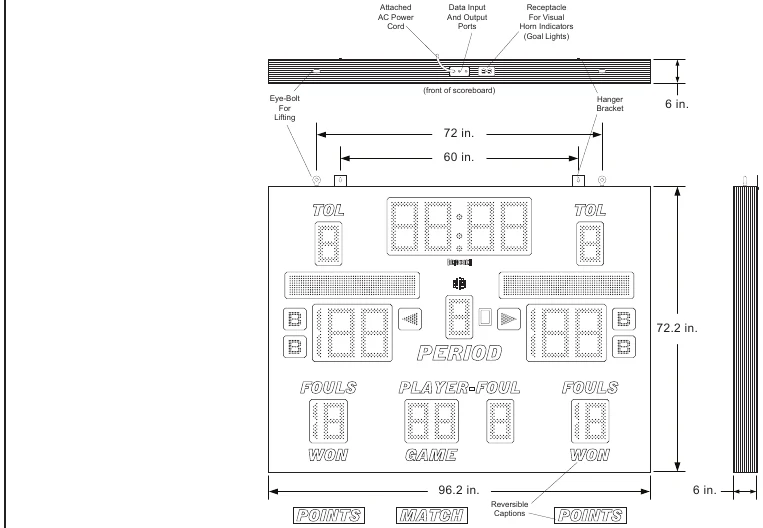

Dimensioned drawing of the Model LX2745-ETN Indoor LED Multi-Sport Scoreboard
Dimensioned drawing from the Model LX2745-ETN Cutsheet — open the image for full size. Callouts: Attached AC Power Cord, Data Input And Output Ports, Receptacle For Visual Horn Indicators (Goal Lights), Eye-Bolt For Lifting, Hanger Bracket, 6 in., 72 in., 60 in., 72.2 in., 96.2 in., Reversible Captions.

Quick specifications

Cabinet Size, Weight 8 ft. x 6 ft., 140 lbs.
Electrical Requirements 2.5 Amps, 120 VAC
Display Sizes
  • 12 in. tall 4-digit Game Clock (MM:SS)
  • 12 in. tall Home Score
  • 12 in. tall Guest Score
  • 9 in. tall Period / Match
  • 9 in. tall Home Team Fouls / Won / Points
  • 9 in. tall Guest Team Fouls / Won / Points
  • 9 in. tall Player Number / Game / Match
  • 9 in. tall Player Foul
  • 9 in. tall Home Time Outs Left
  • 9 in. tall Guest Time Outs Left
  • 3 in. tall Bonus Indicators
  • 3 in. tall Possession Indicators
  • 5 in. tall 9 x 56 pixel ETNs

Standard equipment & features

  • Single cabinet design with heavy duty extruded aluminum framing
  • Light weight, rust free, all aluminum construction
  • Mounting hardware for attaching the cabinet to a wall
  • Automotive grade baked on enamel based paint applied to the scoreboard face
  • Choice of 18 standard paint colors
  • Red, amber, and green LED displays
  • Internal horn
  • Data output port on scoreboard cabinet supports daisy chaining additional displays
  • Goal light output port supports optional LED backboard goal light kits
  • Two full-sized 37-key control consoles with LCD displays
  • Fifty programmable brightness levels
  • Main control console includes fully programmable Practice Segment Timer mode
  • Junction boxes and patch cables for hardwired installations
  • Five-year limited warranty
  • Toll free technical support via phone and online for the life of the product

Optional equipment & features

  • ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above or below the scoreboard
  • Extended configurations for ID panels built into the left or right of the scoreboard cabinet
  • Center hung four-sided configuration available
  • Full color video and other electronic display panels
  • Custom paint colors
  • Up to 1,000 feet of data cable for hardwired installations (two runs required for this two-console system)
  • ScoreLink Wireless RF modem system for wireless communication (two sets required for this two-console system)
  • Additional warranty and support plans

Related documents

Model
LX2745
Revision
Rev 2012-Oct.
