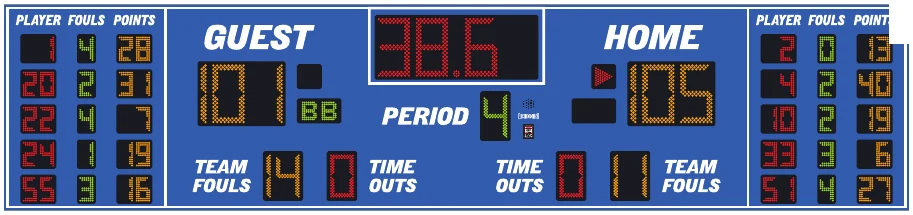

Model LX2575 Spec Sheet
IndoorBasketball
Download the original PDF (259 kB)
This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.
Specifications
- Dimensions
- 22 ft x 5 ft
- Weight
- 280 lb
- Cabinet Material
- Aluminum
- Caption Height
- 7 in, 5 in, 4 in, 3 in
- Accent Material
- 3 mil vinyl
- Digit Height
- 16 in, 12 in, 6 in
- Indicator Size
- 5 in
- Digit Colors
- Amber, Red, and Green
- Electrical
- 4.5 Amps, 120 VAC
Digits / Indicators
Guest Team Points, Home Team Points, and Period Clock digits are 16 inches tall, while Period, Team Fouls, and Time Outs Left are 12 inches tall. All other digits are 6 inches tall. Bonus and Possession indicators are 5 inches tall. Digits and indicators are formed from matrices of super-bright, long-lasting, energy-efficient LEDs (Light Emitting Diodes). Standard LED colors for this scoreboard are amber, red, and green. Our LED assemblies are protected by aluminum masks that allow the hard epoxy shells of the LEDs to be exposed for maximum viewing angles.
Standard equipment & features
- Single cabinet design with heavy duty extruded aluminum framing
- Light weight, rust free, all aluminum construction
- Mounting hardware for attaching the cabinet to a wall
- Automotive grade baked on enamel based paint applied to the scoreboard face
- Choice of 18 standard paint colors
- Red, amber, and green LED displays
- Internal horn
- Data output port on scoreboard cabinet supports daisy chaining additional displays
- Goal light output port supports optional LED backboard goal light kits
- Two full-sized 37-key control consoles with LCD displays
- Fifty programmable brightness levels
- Main control console includes fully programmable Practice Segment Timer mode
Optional equipment & upgrades
- Electronic Team Names
- ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above, below, or beside the scoreboard
- Center hung four-sided configuration available
- Full color video and other electronic display panels
- Custom paint colors
- Team name in place of HOME
- Up to 1,000 feet of data cable for hardwired installations (two runs required for this two-console system)
- ScoreLink Wireless RF modem system for wireless communication (two sets required for this two- console system)
- Additional warranty and support plans
Paint color options
The colors named on this sheet are the standard range offered across the LX series. See them on the LX2575 color picker.
- Navy Blue
- Egyptian Blue
- Royal Blue
- Icy Blue
- Indigo Purple
- Power Purple
- Merchant Maroon
- Cardinal Red
- Racing Red
- Tiger Orange
- Golden Yellow
- Metallic Gold
- Silver Gray
- Shamrock Green
- Jolly Green
- Hunter Green
- Matte Black
