Model LX2570-ETN Cutsheet

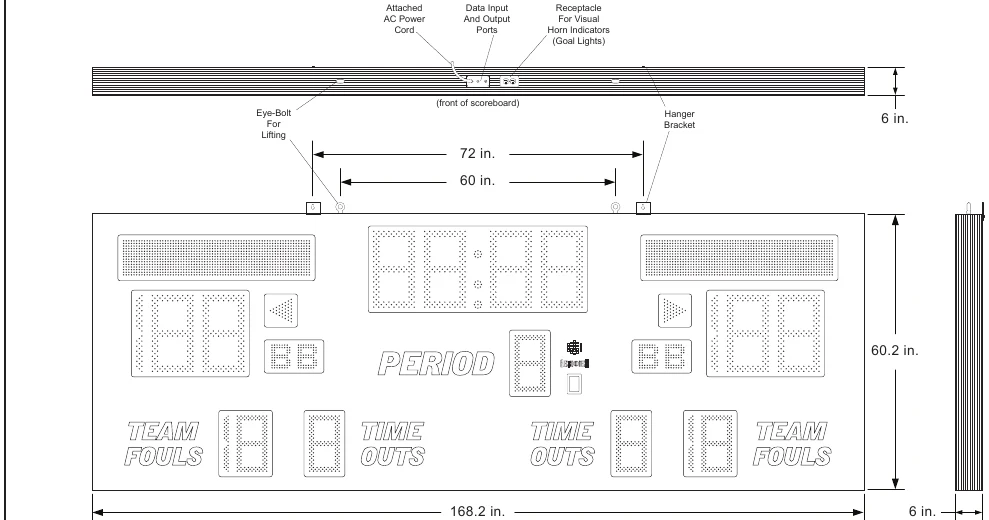

Indoor LED Basketball ScoreboardCutsheet with Mechanical Detail

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Quick specifications

Cabinet Size, Weight	14 ft. x 5 ft., 190 lbs.
Electrical Requirements	3.1 Amps, 120 VAC
Display Sizes	16 in. tall 4-digit Game Clock (MM:SS) 16 in. tall Home Score 16 in. tall Guest Score 12 in. tall Period 12 in. tall Total Home Team Fouls 12 in. tall Total Guest Team Fouls 12 in. tall Home Time Outs Left 12 in. tall Guest Time Outs Left 5 in. tall Bonus Indicators 5 in. tall Possession Indicators 8 in. tall 14 x 72 pixel ETNs

Single cabinet design with heavy duty extruded aluminum framing
Light weight, rust free, all aluminum construction
Mounting hardware for attaching the cabinet to a wall
Automotive grade baked on enamel based paint applied to the scoreboard face
Choice of 18 standard paint colors
Red, amber, and green LED displays
Internal horn
Data output port on scoreboard cabinet supports daisy chaining additional displays
Goal light output port supports optional LED backboard goal light kits
Full-sized 37-key control console with LCD display
Fifty programmable brightness levels
Control console includes fully programmable Practice Segment Timer mode
Junction box and patch cable for hardwired installations

ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above or below the scoreboard
Extended configurations for ID panels built into the left or right side of the scoreboard cabinet
Center hung four-sided configuration available
Full color video and other electronic display panels
Custom paint colors
Up to 1,000 feet of data cable for hardwired installations
ScoreLink Wireless RF modem system for wireless communication
Additional warranty and support plans
