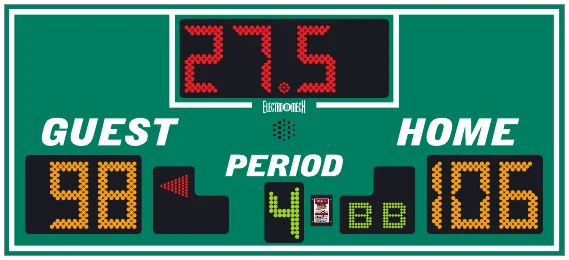

Model LX2330 Spec Sheet
IndoorBasketball / Multi-Sport
Download the original PDF (225 kB)
This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.
Specifications
- Dimensions
- 6-1/2 ft x 3 ft
- Weight
- 73 lb
- Cabinet Material
- Aluminum
- Caption Height
- 3.75 in, 3 in
- Accent Material
- 3 mil vinyl
- Digit Height
- 9 in, 6 in
- Indicator Size
- 3 in
- Digit Colors
- Amber, Red, and Green
- Electrical
- 0.9 Amps, 120 VAC
Digits / Indicators
Guest Team Points, Home Team Points, and Period Clock digits are 9 inches tall, while the Period digit is 6 inches tall. Bonus and Possession indicators are 3 inches tall. Digits and indicators are formed from matrices of super-bright, long-lasting, energy-efficient LEDs (Light Emitting Diodes). Standard LED colors for the scoreboard are amber, red, and green. Our LED assemblies are protected by aluminum masks that allow the hard epoxy shells of the LEDs to be exposed for maximum viewing angles.
Standard equipment & features
- Single cabinet design with heavy duty extruded aluminum framing
- Light weight, rust free, all aluminum construction
- Mounting hardware for attaching the cabinet to a wall
- Choice of 18 standard paint colors
- Red, amber, and green LED displays
- Internal horn
- Data output port on scoreboard cabinet supports daisy chaining additional displays
- Goal light output port supports optional LED backboard goal light kits
- Full-sized 37-key control console with LCD display
- Fifty programmable brightness levels
- Control console includes fully programmable Practice Segment Timer mode
- Junction box and patch cable for hardwired installations
- Five-year limited warranty
Optional equipment & upgrades
- ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above or below the scoreboard
- Extended configurations for ID panels built into the left or right side of the scoreboard cabinet
- Center hung four-sided configuration available
- Full color video and other electronic display panels
- Custom paint colors
- Team name in place of HOME
- Up to 1,000 feet of data cable for hardwired installations
- ScoreLink Wireless RF modem system for wireless communication
- Additional warranty and support plans
Paint color options
The colors named on this sheet are the standard range offered across the LX series. See them on the LX2330 color picker.
- Navy Blue
- Egyptian Blue
- Royal Blue
- Icy Blue
- Indigo Purple
- Power Purple
- Merchant Maroon
- Cardinal Red
- Racing Red
- Tiger Orange
- Golden Yellow
- Metallic Gold
- Silver Gray
- Shamrock Green
- Jolly Green
- Hunter Green
- Matte Black
