BEST PRACTICES FOR PERSONAL SAFETY AND PRODUCT CARE

Thank you for choosing Electro-Mech products for your athletic facility. We hope you will be pleased with the performance and appearance of your scoreboard. The information in this document will help you maintain the equipment in its best condition.

Receiving Your Scoreboard

Depending on the shipping method, the scoreboard cabinets may be protected by cardboard sheets, a partially open wooden crate, or a complete enclosure. It is important to inspect the scoreboard packaging for damage when it arrives -- before signing any paperwork telling the trucking company you have received everything in good condition. If you see damage to the packaging, it is possible the scoreboard has been damaged too. Where you find dents, scrapes, or holes in the packaging, peel back the cardboard or other packing materials to expose the scoreboard cabinet. Make notes on the paperwork provided by the trucking company before accepting delivery. If the damage appears to be severe, refuse the shipment. Contact Electro-Mech as soon as possible if you suspect shipping damage.

Storage Prior to Installation

We recommend keeping the shot clock displays in their original packaging until the day of installation. It is important to keep the packing materials dry while they are on the signs. Wet cardboard can adhere to the scoreboard face and damage the finish.

Unless you are planning to install your shot clocks on the same day they arrive, you will need to prepare a clean, dry, secure area for storage. Even though the signs are designed ruggedly, you will need to keep them away from moisture, dirt, accidental damage, and abuse.

Stand the sign cabinets upright; never lay them face down or face up. Never stack things on top of the cabinets while they are in storage.

These recommendations apply to ID panels and other items that may have shipped with your shot clock displays.

If your shot clocks arrived in a wooden crate, the pieces will have been nailed together. When prying open the crate, take care to avoid scraping the signs with tools, nails, or lumber. Make certain to pry the wooden pieces apart from each other rather than trying to apply force against the scoreboard cabinet. Aluminum is strong, but a steel crowbar is stronger.

Once the crate is out of the way, remove the cardboard padding. You may need to remove a few labels adhered to the side of the cabinets for shipping. At this point, your shot clock cabinets are unpacked and ready to be installed.

Conditions of Installation and Use for Indoor Scoreboards

These scoreboard displays are designed for installation and use in a dry environment. Do not attempt to install or operate shot clocks outdoors or in a wet location.

Indoor shot clock displays are typically attached to the support structure behind basketball goals. The cabinets include multiple mounting points, which offer several mounting options. Whatever method you choose for hanging the signs, it is important to make sure the structure can support the added weight of the displays. Vibration is also a factor in selecting mounting techniques for shot clocks mounted on basketball backboards.

Each shot clock display receives power from a standard 120 VAC electrical outlet. When they are not in use, you should disconnect them from power. For this reason, we recommend installing a dedicated disconnect switch within sight of the shot clock displays. In the "off" position, the switch should isolate all load carrying conductors (not the ground). This will help protect the scoreboard electronics form nearby lightning strikes and other power fluctuations which might otherwise travel along the power cables.

PRODUCT SPECIFICATIONS

General Description:

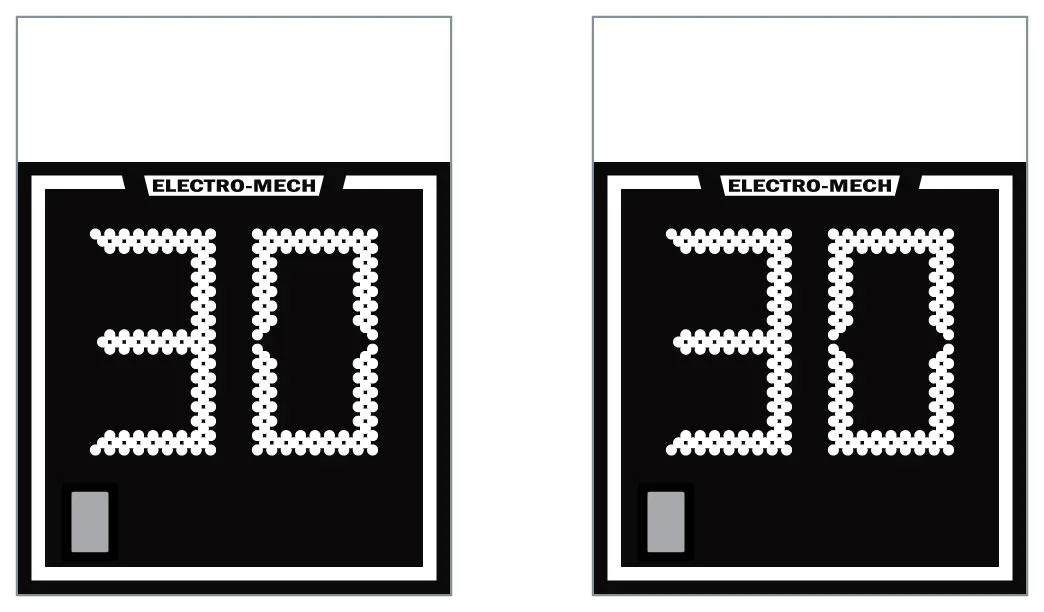

• Model LX2158 is a set of two electronic scoreboard accessory displays designed for permanent indoor installation and intended primarily to serve as shot clocks for basketball.

Standard Package Includes:

• Two scoreboard cabinets
• One wired 3-button hand-held shot clock controller
• Two stereo patch cables
• Two junction boxes (when configured to use hardwired data cable)

Cabinet Dimensions and Weight:

• 32 in. (H) x 24 in. (W) x 6 in. (D), 22 lbs. each

Cabinet Construction and Finish:

• Each cabinet includes a self-supporting frame constructed from extruded aluminum channel and formed aluminum pieces. The face and back sections are made from aluminum sheet material. The face is finished with matte black enamel paint. All other cabinet surfaces are mill finish. Accent striping and other decorative elements are cut from interior grade vinyl.

Overview of LED Displays:

• Red LEDs (light emitting diodes) mounted on printed circuit boards form both digits. The circuit boards are mounted behind the aluminum face, which is painted matte black to increase contrast. The epoxy shells of the LEDs protrude slightly past the scoreboard face, maximizing viewing angle while providing impact absorbing protection from contact with stray balls and other flying objects. The LEDs may be dimmed to reduce glare under changing lighting conditions. They are rated for 100,000 hours of use.

Display Features:

• 2-Digit Shot Clock, Red, 12 inches tall, counts down seconds from 99 or less to 0

Additional Standard Features:

• Integrated ID Panel (8 in. x 24 in.) for sponsorships, facility name, or other graphics
• All serviceable components accessible from the front of the cabinet
• Internally mounted Horn
• Built-in AC power cable, 6 feet long
• Data output port for daisy-chaining additional displays
• Low voltage power port for backboard mounted visual horn indicator kit
• Side and rear mounting points

Control Console:

• Because Shot Clock time is meaningless without being tied to the Period Clock time shown on the main basketball scoreboard, the standard LX2158 package does not include its own control console. An Electro-Mech MP basketball console, of the type shipped with our LX-series basketball scoreboards, is required for operation of Model LX2158.

Optional Equipment and Features:

• Data cable for hard-wired installations (two runs required)
• ScoreLink RF communications system for wireless data transmission (two receiver units required)
• Hard carrying case for control console and accessories
• Wireless handheld shot clock three-button assembly for courtside operation
• Backboard-mounted LED light bar kits to serve as visual Horn indicators

Power Requirements:

• Each LX2158 shot clock display requires one circuit providing 0.3 amps, 120 VAC, 60 Hz
• Power enters each shot clock cabinet via an attached 6-foot long cord designed to plug into a standard (NEMA 5-15R) power receptacle.
• Electro-Mech recommends installing a dedicated breaker to control power to the shot clock displays.

Mounting Requirements:

• In its standard configuration, this set of scoreboard accessory displays is designed for indoor use and may be mounted on walls, basketball backboard structures, or any permanent or portable structures capable of holding them.
• Each cabinet includes mounting points on the back side, allowing the shot clock display to be mounted on a vertical support. The rear hardware is tapped for 1/2-inch-13 bolts.
• The cabinets include mounting points along each side, allowing the shot clock display to be supported by brackets bolted to the sides. The side hardware is tapped for 3/8-inch-16 bolts.

Safety Listing, Support, and Warranty Information:

• All LX-series scoreboards and displays are ETL Listed to UL Standard 48 for Electric Signs.
• Electro-Mech offers technical support at no charge over the phone or via the Internet for the life of the product.
• The standard limited warranty covers factory labor on parts returned to Electro- Mech within five years of the scoreboard's date of invoice.
• Additional support plans are available.
• The complete standard warranty statement is included near the end of this document.

PLANNING YOUR SCOREBOARD INSTALLATION

A good plan is important to the success of any project, and installing a scoreboard is no exception. An obvious (but sometimes overlooked) first step in planning for your shot clocks is determining where to put the displays. The key factors here are visibility and accessibility.

By "accessibility" we mean the ease with which you can get people, equipment, cabling, etc. to the shot clocks during installation and the ease of access for service in the future. If you position the signs so that using a lift or ladder to reach them is impractical, you will almost certainly add cost to the installation and to service calls.

By "visibility" we mean the ease with which spectators, participants, and the operator of the shot clocks can see the displays. Most shot clock displays are mounted on the structure supporting the basketball goals, although it is also common to mount them on walls or other structures. Because every sports facility is unique, there is no one-size- fits-all way to describe the perfect scoreboard location. We can tell you that the vertical placement of the displays should be high enough to give spectators a clear line of sight over the heads of players but low enough allow to fans to glance up from the game and check the time without straining their necks. For safety, you will want to keep the bottom of the cabinets at least eight feet above the floor (to prevent people from smacking their heads against them).

For some indoor facilities, it is important to make sure people cannot -- accidentally or intentionally -- interfere with the shot clock displays or cables connected to them. For example, indoor scoreboard cabinets are sometimes mounted along the front facade of balcony seating. This can make it tempting for fans to reach over the balcony and touch the sign, snag a cable, drop a soda on it, or otherwise make a nuisance of themselves. One solution would be to install a shield above any scoreboard in this position.

If you are planning for the construction or renovation of a new facility, then you will likely have more options for locating your shot clock displays. In addition, you may be able choose helpful positions for electrical outlets, plan for conduits, and control other details that will make installation, operation, and service easier. Your scoreboard sales rep should be able to answer questions and offer advice that will help you with these plans.

If you are adding this shot clock set to an existing facility, your options may be more limited. In some cases, we can modify the shot clock cabinets to meet special needs. An example of this would be accommodating power entry through the back of the cabinet rather than via the standard power cable on top. These sorts of details must be worked out prior to the release of a scoreboard order. Your sales rep can guide you through the process.

The sections that follow in this document primarily discuss the details of the mechanical and electrical installation of a single set of shot clocks. If your project includes multiple

scoreboards or other electronic displays, please check with your scoreboard sales rep to make sure you have any project level documentation you may need.

Before You Spend Your Time and Money...

Please keep in mind that the dimensions and other details referenced throughout this document are specific to the standard configuration of this shot clock model. Before purchasing materials, running cabling, etc. you should verify with the factory that you have the right documentation for your particular project.

It is possible that a government agency, such as your local city council, will require a building permit or other documentation and approval forms related to the installation and operation of your scoreboard. In some cases the installation plan may require a stamp from a locally licensed Professional Engineer (P.E.).

ELECTRICAL INSTALLATION

This section of the manual provides information that is important for locating power receptacles, running cable, planning for conduit, and other steps needed in preparation for bringing power and data to the shot clock displays. The final hookups for power and data will happen after the mechanical installation. But it is wise to plan for key pieces of the electrical installation prior to physically mounting the cabinets.

If your shot clock package includes special accessories such as electronic message centers or video displays, there may be additional cabling and conduit needed to support this equipment. Please consult the documentation provided with these items.

The standard configuration of this shot clock set includes a power cable attached to the top of each cabinet. Input and output ports for data are located here as well. At the factory, it is possible to relocate these connection points to accommodate special needs. Let your scoreboard sales rep know about any custom requirements BEFORE we begin building your cabinets.

Additional Materials and Tools

The illustration on the previous page shows where power is needed and how data

cables can be routed. Data cable is not included as a standard part of the shot clock

package, although Electro-Mech typically is the source for it. Alternatively, Electro-

Mech can provide a ScoreLink wireless communication system to replace the data

cable. Other materials shown (or implied) in the illustration which are not included in the

standard scoreboard package:

• Power receptacles (at each shot clock display and at the point of operation)
• A disconnect switch (to turn the displays on and off)
• Cable and conduit to supply power to the receptacles
• Conduit for the data cable (if data cable is used)
• Wire splicing kits for use with 22 AWG wire (if data cable is used)
• Control console (typically packaged with the main scoreboard rather than with the shot clocks)

This document assumes the installer has access to tools and skills for...

• Working with conduit and fittings
• Routing cables
• Crimping terminals, splicing, soldering, and other basic wire management
• Minor carpentry work
• Common tools such as Phillips and flat head screwdrivers, a knife, etc.

Electro-Mech recommends you find a reputable sign installer or electrician with the tools and experience to handle the type of work mentioned above. If you are unfamiliar with sign installers in your area, contact your scoreboard sales rep for recommendations.

Power Receptacles and Disconnect Switch

Each shot clock display is designed to be plugged into a US standard (NEMA 5-15R) 120 VAC receptacle. We recommend providing a disconnect switch to kill power to these receptacles when the signs are not in use. The control console also requires a power receptacle. This receptacle does not need to be attached to a disconnect switch, since the console can easily be unplugged and is typically stored between games.

Model LX2158 draws a maximum of 0.3 amps at each cabinet. It is common to wire the receptacles for both shot clock displays, along with the receptacle for the main basketball scoreboard display, on a single circuit sharing a disconnect switch. This makes it easier to control power for the entire scoreboard system.

Junction Boxes and Data Cable

If your scoreboard package includes the ScoreLink wireless communication system, your work is done here. Skip to the next section.

Since this shot clock set consists of two separate displays, hardwired systems require two separate runs of data cable from the point of operation of the signs -- one to each display. Your hard-wired scoreboard package includes two junction boxes, which you should permanently mount to provide a stable point of termination for the data cables. The idea is to connect the control console to these junction boxes via a pair of ten-foot patch cables. So the junction boxes will need to be mounted within ten feet of the position where your scoreboard operator will sit. In many gyms the junction boxes are concealed inside a larger floor box. They can be flush mounted on a wall, externally mounted on bleachers, or positioned anywhere else that is convenient. Choose a protected location so that the junction boxes and cables are not likely to be stepped on, tripped over, or have liquid (or anything else) spilled on them.

It is also important to label your junction boxes. The connectors used for scoreboard data look very much like the type used in some audio systems. Plugging audio devices into a scoreboard data line can damage the scoreboard system.

Each junction box ships with a length of cable soldered to the stereo socket and tucked inside the box. There should be no need to solder cable to this socket during the installation. Instead, splice the wires from the data cable to the pigtail inside the junction box, matching colors. The wires in the pigtail are 22 AWG, and the cable should use the same size conductors. The installer must provide wire nuts, crimp splices, or other means to connect the wires.

The splice point should stay inside the junction box. That is, you want to feed the long run of data cable into the box rather than pulling the pigtail out. Electro-Mech provides a strain relief on one side of the junction box to secure the cable. You may choose to connect conduit directly to the junction box, in which case the strain relief will not be needed. The junction box is designed to accept 3/4-inch conduit fittings.

We recommend running data cable in conduit from the junction boxes to the shot clock displays -- especially where the cable would otherwise be exposed. You should never run data cable in the same conduit as power cable. Having more than one run of scoreboard data cable in a single conduit is perfectly fine.

One more warning about data cable: Never split or branch the cable. The current loop signal we use to transmit data to the scoreboard and shot clock displays will behave unpredictably if it is divided between two destinations. There are other options for getting synchronized data to two locations, including daisy chaining -- which will be discussed below. If your facility calls for a more complicated cabling plan, it is best to work out the details with your scoreboard sales rep prior to installation.

Stereo Plug

At each shot clock display, data enters the cabinet through a port located along the top. The illustration below is a view of the top of the scoreboard showing the standard location of the ports.

There are two common methods for bringing the last few feet of data cable to one of the shot clock displays. One method involves installing a junction box on the wall or other structure near the display. From here you can run a patch cable to the shot clock's data input port. The standard scoreboard package does not include extra junction boxes and patch cables for this type of cable routing. However, the materials are readily available from Electro-Mech.

The other method requires the right-angle stereo plug assembly, which Electro-Mech provides with all hard-wired indoor scoreboard packages. In the case of shot clocks, there will be two plug assemblies to terminate the two cable runs required. The assembly consists of the main plug body, an insulating sleeve, and a cover.

Connecting data cable to the stereo plug requires soldering to two terminals. Slide the cover and sleeve over the data cable before soldering. The terminal nearer the center of the plug body connects to the tip of the socket. The black wire from the data cable should be soldered to this terminal. The terminal that extends further from the center of the plug body connects to the ring of the plug. Solder the red wire here. The strain relief tabs are connected to the shaft of the plug. When you bend the tabs around the data cable, they should be in contact with the shielding or the bare drain wire.

Slide the insulator sleeve over the terminals and screw the cover in place to complete the assembly. Now you will be ready to plug the data cable into the port at the top of the shot clock cabinet when it is installed.

Managing Multiple Scoreboard Displays

The preceding material discussed how to run data cable for a single pair of shot clocks. When multiple scoreboard displays are installed in the same facility, the options can become confusing. Please discuss cabling plans with your Electro-Mech sales rep to make certain you receive all the materials you need to meet your expectations.

The simplest (and rarest) arrangement occurs when multiple scoreboards are completely unrelated to each other. In this case, each display would have its own control console (or consoles, in the case of scoreboards with stat panels) and its own data cable.

Daisy Chaining

Another simple case is when multiple displays are always run in synchronization from a single control console. There are two ways to run cable for this setup. By running a secondary data cable from the data output port of one cabinet to the data input port of the second cabinet, you will link the two displays permanently.

This daisy chaining technique can be extended, with a third display connected to the second, a fourth display connected to the third, on so on. We recommend daisy chaining no more than ten displays from a single data source. Each scoreboard display in the chain adds a few milliseconds of propagation delay. After the tenth display, this delay would be noticeable when the Clock is counting Tenths of Seconds.

The second technique for operating displays in synch is to use two runs of cable, each patched to a separate output of the same control console. We recommend this technique, when conditions in the gym allow it, because it offers the option of running the scoreboards separately in the future. This is discussed further in the next section.

Sometimes Separate, Sometimes Together

As mentioned previously, the current loop signal which sends data from a control consoles to a scoreboard display or an accessory device cannot be split. That is, you can't take the signal from one data port on the back of the controller to two or more devices. Instead, you should plan for a separate cable run for each display/device (or for each chain of displays/devices, if you plan to daisy chain). Each control console includes four output ports, so it is possible to directly drive four hard-wired scoreboard displays (or chains of devices) from one controller.

In the illustration above, two signs are linked through control console "A" because both patch cables are plugged into data ports on the back of the console. If activities in the gym require two independent scoreboard displays, the patch cable connected to the "B" junction box can be moved to the "B" controller.

In facilities with multiple scoreboards displays and accessories, including shot clocks and locker room clocks, many combinations of these techniques are possible. You may use one port on the back of your control console to drive a main scoreboard display and (via daisy chaining) a set of shot clocks, another port to drive a second scoreboard display, and a third port to drive several daisy chained locker room clocks or other accessories. As always, we recommend discussing these options with your scoreboard sales representative prior to placing your order.

MECHANICAL INSTALLATION

This section of the manual describes options for installing shot clock cabinets. If your scoreboard project includes customizations or requires other special mounting considerations, please contact the factory to request details specific to your project. If you have unique requirements and would like to change the position or style of our mounting hardware to accommodate them, we can probably help you out. But we need to find out BEFORE we start building the cabinets. Let your scoreboard sales rep know about any special needs as early in the process as possible.

Additional Materials and Tools

Most shot clock displays are installed on or near the structure supporting a basketball goal. Each shot clock cabinet includes a set of mounting points in the back and a set of mounting points on each side. The brackets and posts shown in the illustration below are not included.

These mounting points are simple and generic enough to accommodate a variety of techniques for hanging the sign on assorted structures. The rear mounting points accept 1/2-inch 13 bolts and are provide to be used with vertical mounting structures running behind shot clock cabinet. In some cases, it may be easier to attach support pieces to the sides of the cabinets. Our side mounting points accept 3/8-inch 16 bolts.

Electro-Mech recommends you find a reputable sign installer with the equipment and experience to handle the work mentioned above. If you are unfamiliar with sign installers in your area, contact your scoreboard sales rep for recommendations.

Finalizing

If you've followed the process as it was presented in this document, you will already have electrical receptacles and data cabling (if used) in place. At this point you should plug each shot clock's power cord into the power receptacle. If you are hard-wiring the data cable, connect the plugs to the input ports on the tops of the cabinets. You are now ready to test the system using the control console (typically purchased with your main basketball scoreboard display).

Connections at the Control Console

The control console designed to work with this type of shot clock display is powered through a typical three-prong AC power cord. At the point of operation, the console requires a grounded power receptacle.

If your shot clock package includes Electro-Mech's ScoreLink RF Communications system, the power receptacle may be the only consideration on the control console side of the installation process. For details about ScoreLink, consult the documentation which ships with the product. Otherwise use the stereo patch cables to plug the controller into the junction boxes.

TESTING, OPERATION, AND ONGOING CARE

After all power, data, and other connections are in place, it is time to test the shot clock system. Apply power to the timer displays first. Although there is no harm in powering the control console first, powering the signs first should result in the numeric displays remaining blank. Seeing any LEDs illuminated on one of the timer displays prior to the availability of data from the control console would indicate a problem inside of the sign cabinet.

Next, power up the control console and plug in the three-button handheld shot clock switch assembly. For wired setups, connect two (or more) stereo patch cables to data output ports on the back of the control console. For portable timers, the other ends of these patch cables are typically plugged into the data input ports on the backs the displays. For permanently installed timer displays (and some portable ones), the stereo patch cables are typically plugged into junction boxes.

The shot clock displays should begin showing data within a few seconds. Use the three-button handheld switch assembly to start, stop, and reset the shot clock time. The [SHOT CLOCKS] button (also labeled [SHOTS/PLAY CLOCKS] or [PLAY CLOCKS], depending on the style of controller keypad) on the control console should allow you to change the time showing on the displays. For more details about how the control console and handheld switch assemblies work, consult the documentation which ships with them.

Scheduled Testing and Maintenance

The shot clock system does not require scheduled maintenance procedures. However, it is important to check for problems prior to a game. We recommend running through the operational tests described above between two and four weeks prior to the start of a season (or anytime you plan to use the shot clocks after a gap of more than a month). During the season, test out the timers the day before each game.

Timers configured for portable use ship with detachable power cords. These power cords include GFCI safety circuitry. We recommend using the test feature of the GFCI power cords the first time you apply power to the displays. Continue testing at three- month intervals over the life of the product. To activate the test feature, first plug the cord into your power source. Press the [TEST] button. At this point, the GFCI LED indicator should not be illuminated. Press the [RESET] button. Now the LED indicator should illuminate. If the cord fails the test, replace it with a new GFCI power cord.

After the Game, and After the Season

Whenever you are not using your shot clock system, disconnect the displays from power. Portable displays should be unplugged from both power and data cables and stored in a secure area. For permanently installed systems, use disconnect switches to cut power to the signs. You should unplug the control console from its power source and from the data cables as well. It is not necessary to take steps beyond this, even if the timer displays will not be used for several months.

MAINTENANCE

We hope your shot clock system provides years of trouble free service. In the event of a problem, the material that follows will provide some information about contacting technical support as well as some details about the parts inside your timer displays.

Contacting Technical Support

Our support staff is available via phone or e-mail Monday through Friday 8:00 through 5:00 Eastern. Our web address and phone number is printed at the bottom of this page. When contacting Electro-Mech for support, it helps to have the scoreboard model (LX2158) handy as well as the version of the software running on your control console. If your controller includes an LCD display, you will see the software version flash briefly (for about three seconds) on the screen when you first apply power. Whether you have the LCD display or not, you should find on the bottom of the control console a product label which gives the software version.

If you are reading this manual in search of help with a different scoreboard model, for Electro-Mech's outdoor products you can find the model number printed on a metal plate attached to the back of the scoreboard cabinet near where the power enters. For indoor scoreboards, the model number is usually printed on a label at the top center of the cabinet near the attachment point for the power cable.

If you are troubleshooting a problem, the most important information to have is an exact description of which parts of your scoreboard system are working and which parts are not working. The best person to make contact with our support team is someone who has seen the problem first hand. Better yet, give us a call when you are there at the scoreboard display and can walk through a few simple tests with one or our technicians.

Scoreboard problems are rarely so complicated that diagnosing them requires skills beyond using a screwdriver and a ladder. Similarly, replacing parts is straightforward process requiring no complex tools or special knowledge.

Parts Exchange

If, after working with our support staff, you discover that a part needs to be serviced or replaced, the next step is to send the part to Electro-Mech for repair. During the warranty period, we repair parts and return them via UPS ground service at no charge. We can ship parts via overnight service for an additional charge. For work falling outside of the warranty terms, we can, upon request, provide an estimate of repair costs on returned parts before performing the work. The typical turnaround on repair work is fewer than three business days

Electro-Mech maintains a supply of common parts for immediate shipment. Some customers choose to purchase new parts for immediate use and will later send old parts back to us to be repaired and returned as "backup" stock. In some cases our support plans include the option for shipping replacement parts to the customer once our service staff has identified a problem. The customer will then return the damaged part after receiving the replacement. Electro-Mech requires a valid credit card number before initiating a shipment of this type. We do not apply charges to the card unless the customer does not return parts within ten days or if the returned parts require work outside of our warranty terms.

Our shipping address:

Electro-Mech Scoreboard Co. 72 Industrial Blvd. Wrightsville, GA 31096

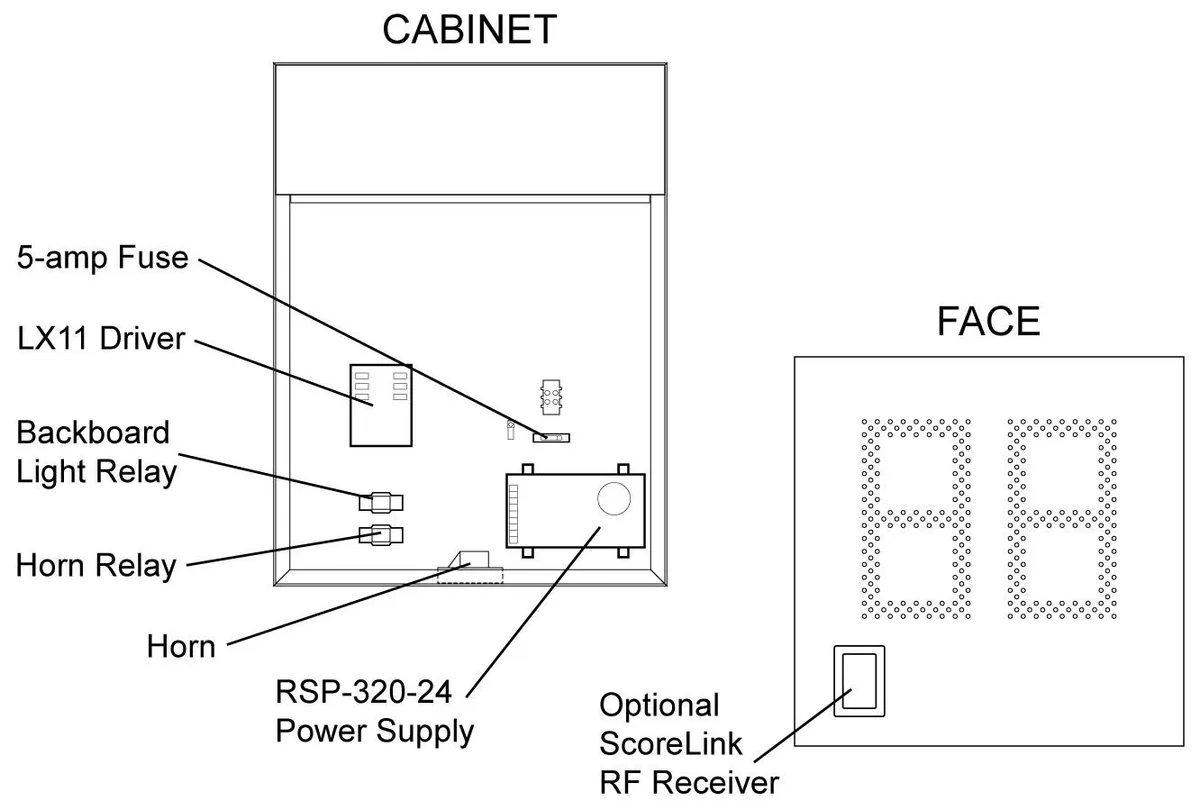

Location of Serviceable Parts

All serviceable parts are located behind the detachable face of each shot clock display. If your shot clocks include ScoreLink RF receiver units, they will be attached to the bottom left corner of each face -- accessible without removing the face.

Illuminated PCB Assemblies

The LED circuit board assemblies (but not individual LEDs) are field replaceable parts. Each LED is soldered to a printed circuit board (PCB) which is, in turn, attached to studs behind the face of the cabinet. The face assembly is attached to the cabinet frame with self-tapping screws. You will need a 1/4-inch nut driver to remove these screws.

Removing the Face Assembly, Step-By-Step:

• Disconnect power to the timer cabinet before performing any service work.
• Remove the self-tapping screws from the metal face, leaving for last one of the screws along the top of the face.
• Support the face assembly with one hand as you remove the final screw.
• Rotate the face so that you can see the PCBs behind it and the cable connections along the back side.
• Unplug the ribbon cables from the PCBs.
• Set the face assembly aside and save the screws for later.

If your purpose in removing the face assembly is to provide access to the components behind it, you may skip the next part about removing and replacing the LED digit printed circuit boards.

Each LED digit PCB is held to the face by several nuts, which you can remove using a 3/8-inch nut driver. Be careful to keep the PCBs right side up when you mount replacements behind the shot clock face.

Power Supplies and Fuses

AC power enters each shot clock display through a power cord attached to the top of the cabinet. Inside the sign, the cord brings AC power to a Mean Well RSP-320-24 power supply module, with the AC line side passing through a 5-amp fuse along the way. The fuse is AG style and should only be replaced with a fuse of this same style and rating.

Power connections are made along a row of screw terminals on one side of the power supply module. The Mean Well RSP-320-24 module in each cabinet provides 18.9 VDC to the illuminated digits and their driver. If you replace a power supply module, check the output voltage to make certain it is set to 18.9 VDC.

LX Drivers

LX Driver circuit boards do the work of interpreting data sent from the control console to scoreboard display(s). Using that information, the drivers decide which of the LEDs should be illuminated and which should not. The LX11 Driver decodes shot clock time, etc. and supplies signals via ribbon cables to the digits in the timer cabinet. The table below lists the names and purposes of the various connectors on the LX11 Driver.

J2 (Data In) J3 (Data Out) J4 (Word 1 Low) J5 (Word 1 High) J6 (Word 2 Low) J7 (DC Power In) J8 (Word 3) J9 (Word 2 High) J10 (Word 4) J15 H5/BLK (Data In) H6/RED (Data In) H5/SHLD (Data In)

From ScoreLink To Data Out Terminal Block Shot Clock Seconds Ones Shot Clock Seconds Tens

18.9 VDC

Horn Relay, Backboard Light Relay From cable From cable From cable

Jumper Pins

X = Shunt Installed

H13 (J4/J5 Blanking) H16 (J4/J5 Blanking) H14 (J6/J9 Blanking) H17 (J6/J9 Blanking) H15 (Blank/Stat) H18 (Lamp/Stat)

X

H3 (Spare/R Stat) H11 (Spare)

X X

H19 (Not Used) H1 (Max PWM) H2 (Group +1) H4 (Bank +2) H12 (Bank +1)

X

LIMITED WARRANTY STATEMENT

Electro-Mech Scoreboard Company Standard Equipment Warranty and Limitation of Liability for Scoreboards and Accessories Sold in the United States

Warranty Coverage

Electro-Mech warrants to the original end-user that the Equipment will be free from Defects (as defined below) in materials and workmanship for a period of five years from the date of invoice. Electro-Mech's obligation under this warranty is limited to, at Electro-Mech's option, replacing or repairing any Equipment or Part thereof that is found by Electro-Mech not to conform to the Equipment’s specifications. Any defective Part must be returned to Electro-Mech for repair or replacement. Equipment determined not to conform to specifications will be repaired or replaced and returned to purchaser with standard ground service transportation charges prepaid. Replacement Parts or Equipment will be new or serviceably used, comparable in function and performance to the original Parts or Equipment, and warranted for the remainder of the warranty period. Purchasing additional Parts or Equipment from Electro-Mech does not extend this warranty period.

Defects shall be defined as follows. With regard to the Equipment (excepting LEDs), a "Defect" refers to a material variance from the design specifications that prohibits the Equipment from operating for its intended use. With respect to LEDs, "Defects" are defined as LEDs that cease to emit light. The limited warranty provided by Electro- Mech does not impose any duty or liability upon Electro-Mech for partial LED degradation.

This limited warranty is not transferable.

Exclusions from Warranty Coverage

The limited warranty provided by Electro-Mech does not impose any liability upon Electro-Mech for:

• Damage caused by the unauthorized adjustment, repair, or service of the Equipment by anyone other than personnel of Electro-Mech or its authorized repair agents.
• Rental fees or other costs associated with lifts, cranes, or other tools and services used to access the Equipment.
• Damage caused by the failure to provide a continuously suitable environment, including, but not limited to (i) neglect or misuse (ii) a failure or surges of electrical power (iii) any cause other than ordinary use.
• Damage caused by vandalism, fire, flood, earthquake, water, wind, lightning, or other natural disaster, or by any other event beyond Electro-Mech’s reasonable control.
• Costs associated with replacement of communication methods including but not limited to, wireless systems, copper wire, fiber optic cable, conduit, or trenching for the purpose of overcoming local site interference.
• Any statements regarding products or services made by salesmen, dealers, distributors, or agents, unless such statements are in a written document signed by an officer of Electro-Mech.

Limitation of Liability

In no event shall Electro-Mech be liable for any special, consequential, incidental, or exemplary damages arising out of or in any way connected with the Equipment or otherwise, including but not limited to damages for lost profits, cost of substitute or replacement equipment, down time, lost data, or injury to property, or any damages or sums paid by the purchaser to third parties.
