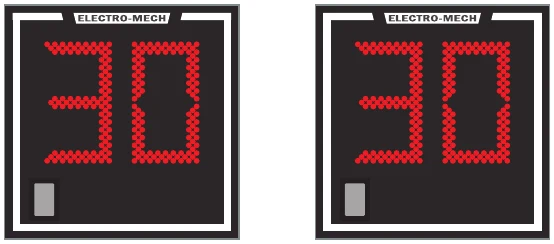

Model LX2150 Color Spec Sheet
IndoorBasketball Shot Clock Set
Download the original PDF (99 kB)
This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.
Specifications
- Dimensions
- 24 in. x 24 in. (each)
- Weight
- 20 lb (each)
- Cabinet Material
- Aluminum
- Caption Height
- N/A
- Accent Material
- 3 mil vinyl
- Digit Height
- 12 in.
- Indicator Size
- N/A
- Digit Colors
- Red
- Electrical
- 0.3 Amps, 120 VAC (each)
Digits
Digit representing the Shot Time are 12 inches tall and are formed from matrices of long-lasting energy-efficient red LEDs (Light Emitting Diodes). Our LED assemblies are protected by aluminum masks which allow the hard epoxy shells of the LEDs to be exposed for maximim viewing angles.
Standard equipment & features
- Light weight, rust free, all alluminum construction
- Matte black automotive grade baked-on enamel based paint applied to the display faces for maximum contrast
- Tapped rear mounting points allow each cabinet to be mounted to a vertical support from behind
- Additional tapped side mounting points allow for the cabinets to be attached to brackets on the sides
- Internal Horn in each cabinet sounds to indicate Shot Time violations
- Connector for activating Electro-Mech’s backboard-mounted LED light bar kit for visual Horn/EoP Indication
- Output port for daisy-chaining additional displays
- Includes wired handheld three-button switch assembly which attaches to the main control console for convenient operation of Shot Clock features
- Junction boxes and patch cables for hardwired instalations
- Five-year limited warranty
- Toll free technical support via phone and online for the life of the product
- ETL Listed to UL Standard 48 for Electric Signs
Optional equipment & upgrades
- Full-sized 37-key control console with LCD display
- Up to 1,000 feet of data cable per display for hardwired installations
- ScoreLink wireless RF modem system for wireless communication (two receivers required)
- Wireless handheld switch assembly for operation of the Shot Clocks from the sidelines
- Additional warranty and support plans
