Quick specifications

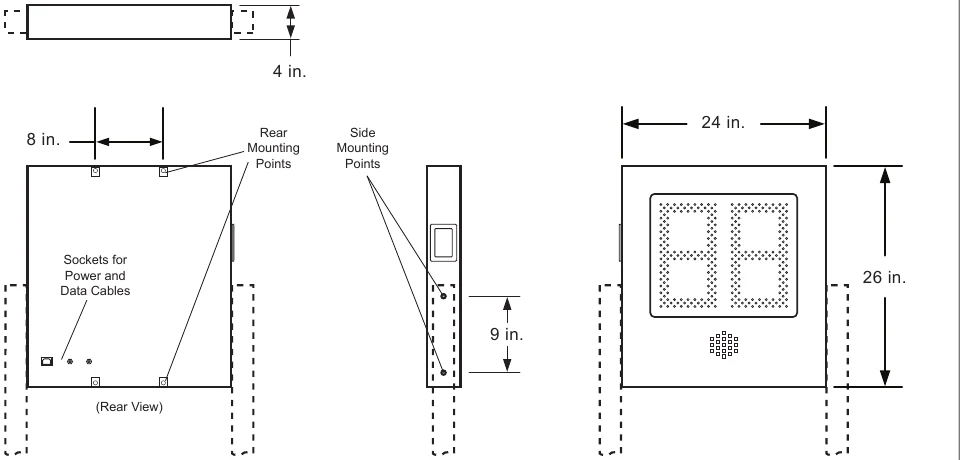

| Cabinet Size, Weight | 26 in. x 24 in., 18 lbs. each |
|---|---|
| Electrical Requirements | 0.3 Amps, 120 VAC each |
| Digit Sizes | 12 in. tall Shot Time |
Standard equipment & features
- Standard package includes T-Cart Leg Kits
- Lightweight, rust free, all aluminum construction
- Tapped mounting points for rear or side support
- Automotive grade baked on enamel based paint applied to the display face
- Output port for daisy-chaining additional displays
- Internal Horn in each cabinet sounds to indicate Shot Time violations
- Includes wired three-button handheld switch assembly which plugs into the main control console for convenient operaiton of Shot Timer functions
- Junction boxes and patch cables for hardwired installations
- ETL Listed to UL 48 Standard for Electric Signs
- Five-year limited warranty
- Toll free technical support via phone and online for the life of the product
Optional equipment & features
- Full-sized 37-key control console with LCD display
- Up to 1,000 feet of data cable for hardwired installations -- two runs required for a pair of Shot Timer displays
- ScoreLink RF modem system for wireless communication -- two receivers required for a pair of Shot Timer displays
- Wireless three-button handheld switch assembly allowing the Shot Clock operator to freely roam the courtside (requires ScoreLink system)
- Additional warranty and support plans
