Model LX1750 Cutsheet

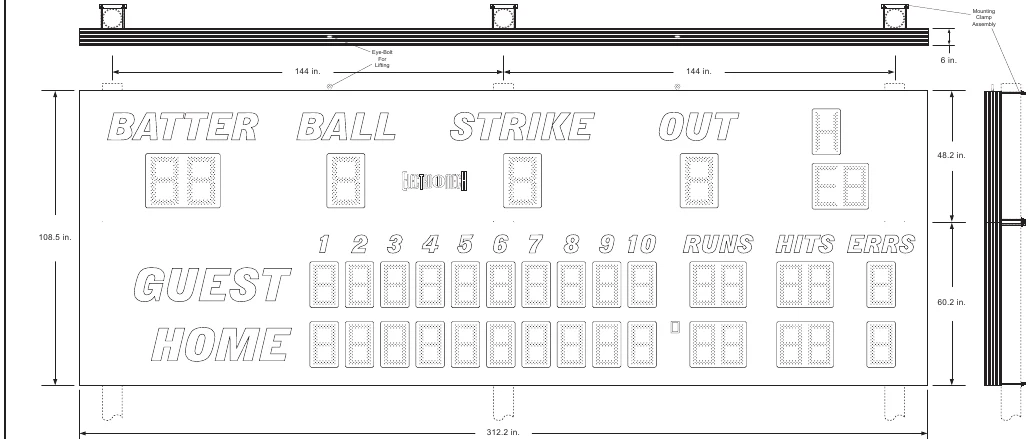

Outdoor LED Baseball ScoreboardCutsheet with Mechanical Detail

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Quick specifications

Cabinet Size, Weight	26 ft. x 9 ft., 800 lbs.
Electrical Requirements	5.3 Amps, 120 VAC
Display Sizes	18 in. tall Batter Number 18 in. tall Ball 18 in. tall Strike 18 in. tall Out 15 in. tall H/E Indicators 15 in. tall Error Fielder Position 15 in. tall Home Runs-By-Inning (1-10) 15 in. tall Guest Runs-By-Inning (1-10) 15 in. tall Home Total Runs 15 in. tall Guest Total Runs 15 in. tall Home Total Hits 15 in. tall Guest Total Hits 15 in. tall Home Total Errors 15 in. tall Home Total Errors
Standard Post Sizes	3 each, max diameter 7 in.

Double cabinet design with heavy duty extruded aluminum framing
Light weight, rust free, all aluminum construction
Mounting hardware for permanent installation on posts without the need for on site fabrication
Automotive grade baked on enamel based paint applied to the scoreboard face
Choice of 18 standard paint colors
Choice of amber or red LED displays
LED display circuit boards conformal coated for outdoor use
Full-sized 37-key control console with LCD display
Fifty programmable brightness levels
Junction box and patch cable for hardwired installations
Five-year limited warranty
Toll free technical support via phone and online for the life of the product

Electronic Team Names
ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above, below, or beside the scoreboard
Full color video and other electronic display panels
Stadium Sound System packages
Custom paint colors
Team name in place of HOME
Up to 1,000 feet of data cable for hardwired installations
ScoreLink Wireless RF modem system for wireless communication
Additional warranty and support plans
