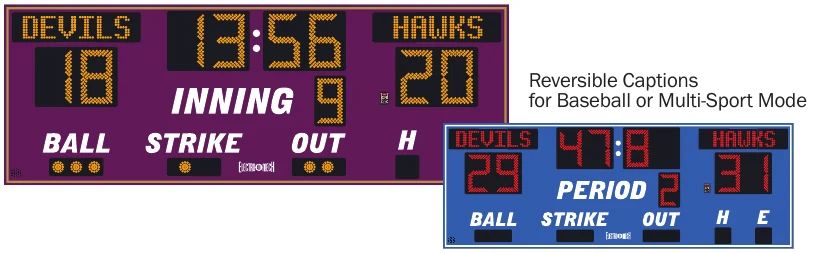

Reversible Captions for Baseball or Multi-Sport Mode

Model LX1390-ETN Spec Sheet

OutdoorMulti-Sport

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Specifications

Dimensions: 14 ft x 5 ft
Weight: 235 lb
Cabinet Material: Aluminum
Caption Height: 8-1/2 in, 6-1/2 in
Accent Material: 2.4 mil cast vinyl
Digit Height: 18 in, 15 in
Indicator Size: 4 in
Digit Colors: Amber or Red
Electrical: 3.8 Amps, 120 VAC

Digits / Indicators

Guest Score, Home Score, and Timer digits are 18 inches tall, while Period digit is 15 inches tall. Indicators are 4 inches in diameter. Digits, ETN characters, and indicators are formed from matrices of super-bright, long-lasting, energy-efficient LEDs (Light Emitting Diodes). Choose either amber or red LEDs for all outdoor products. Our LED assemblies are protected by aluminum masks that allow the hard epoxy shells of the LEDs to be exposed for maximum viewing angles.

Standard equipment & features

Single cabinet design with heavy duty extruded aluminum framing
Light weight, rust free, all aluminum construction
Mounting hardware for permanent installation on posts without the need for on site fabrication
Automotive grade baked on enamel based paint applied to the scoreboard face
Choice of 18 standard paint colors
Choice of amber or red LED displays
LED display circuit scoreboards conformal coated for outdoor use
Internal horn kit
Full-sized 37-key control console with LCD display
Fifty programmable brightness levels
Control console includes fully programmable Practice Segment Timer mode
Junction box and patch cable for hardwired installations

Optional equipment & upgrades

ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above, below, or beside the scoreboard
Extended configurations for ID panels built into the left or right side of the scoreboard cabinet
Full color video and other electronic display panels
Stadium Sound System packages
Custom paint colors
Up to 1,000 feet of data cable for hardwired installations
ScoreLink Wireless RF modem system for wireless communication
Additional warranty and support plans

ELECTRONIC TEAM NAMES (ETNs)

7-inch character height
9 x 48 pixel matrix
Three character fonts
Up to 9 characters per team

Paint color options

The colors named on this sheet are the standard range offered across the LX series. See them on the LX1390 color picker.

Navy Blue
Egyptian Blue
Royal Blue
Icy Blue
Indigo Purple
Power Purple
Merchant Maroon
Cardinal Red
Racing Red
Tiger Orange
Golden Yellow
Metallic Gold
Silver Gray
Shamrock Green
Jolly Green
Hunter Green
Matte Black
