Model LX1360 Cutsheet

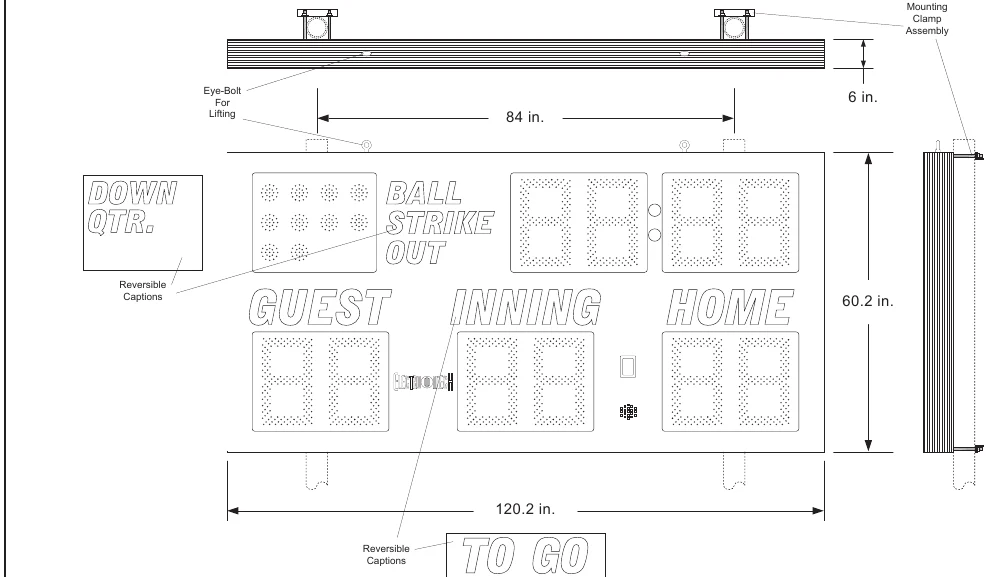

Outdoor LED Multi-Sport ScoreboardCutsheet with Mechanical Detail

This page reproduces the text of the PDF above without alteration, so the document can be read, searched and linked to directly.

Quick specifications

Cabinet Size, Weight	10 ft. x 5 ft., 180 lbs.
Electrical Requirements	2.0 Amps, 120 VAC
Display Sizes	18 in. tall Home Score 18 in. tall Guest Score 18 in. tall Inning / To Go 18 in. tall 4-digit Game Clock (MM:SS) 4 in. Ball / Down Indicators 4 in. Strike / Quarter Indicators 4 in. Out Indicators
Standard Post Sizes	2 each, max diameter 4.5 in.

Single cabinet design with heavy duty extruded aluminum framing
Light weight, rust free, all aluminum construction
Mounting hardware for permanent installation on two posts without the need for on site fabrication
Automotive grade baked on enamel based paint applied to the scoreboard face
Choice of 18 standard paint colors
Choice of amber or red LED displays
LED display circuit boards conformal coated for outdoor use
Simplified 15-key control console
Junction box and patch cable for hardwired installations
Internal Horn
Five-year limited warranty
Toll free technical support via phone and online for the life of the product

ID panels with custom graphics, in a variety of sizes, shapes and styles, to mount above or below the scoreboard
Extended configurations for ID panels built into the left or right side of the scoreboard cabinet
Full color video and other electronic display panels
Stadium Sound System packages
Custom paint colors
Team name in place of HOME
Full-sized 37-key control console with LCD display
External horn kit
Up to 1,000 feet of data cable for hardwired installations
ScoreLink wireless RF modem system for wireless communication
Additional warranty and support plans
