MODEL 8750 HOCKEY SCOREBOARD
OWNER’S HANDBOOK
Thank you for choosing an Electro-Mech Scoreboard for your athletic complex. We are confident that your new scoreboard will give many years of reliable service.
8750 HOCKEY SCOREBOARD SPECIFICATIONS
GENERAL: This ETL listed scoreboard includes the scoreboard cabinet, mounting hardware, control console, 10 ft. extension cable, and junction box.
DIMENSIONS: 9’ L x 5’ H x 6” D; scoreboard with side sponsor panel: 13’ L x 5’ H x 6” D
WEIGHT: 145 lbs; scoreboard with a side sponsor panel weighs 175 lbs
SCOREBOARD CONSTRUCTION: The outer frame is made from extruded aluminum. Internal structural parts may be extruded aluminum or formed from aluminum sheet. The face and back are made from aluminum sheet. The face is finished with enamel paint. Black is the standard face color. White is the standard color for the sponsor panel. The optional bottom sponsor panel is mounted on a separate extruded aluminum frame.

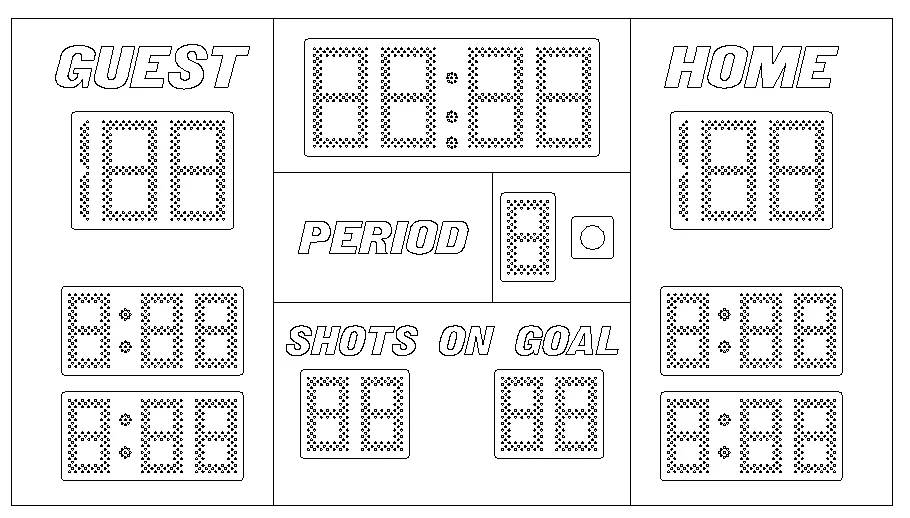

DISPLAY: The 8750 HOCKEY scoreboard displays HOME and GUEST scores to 199, SHOTS ON GOAL to 99, a 99:59 clock with 1/10th of a second timing below 1:00, PERIODS to 4, two GUEST penalty timers to 9:59, and two HOME penalty timers to 9:59. It has an internal horn and a duplex goal light receptacle.
DIGITS AND SYMBOLS: Light emitting diodes mounted on printed circuit boards form the digits and symbols. The clock is formed with 12” red digits, the HOME and GUEST scores are formed with 12” yellow digits, the PERIOD and penalty timers are formed with 9” green digits, and the SHOTS ON GOAL are formed with 9” yellow digits.
POWER REQUIREMENTS: Scoreboard - 120 VAC, 1.33 A, 60 Hz. The scoreboard has an attached 6 ft. power cord. Control Console - 120 VAC, 0.5 A, 60 Hz
SCOREBOARD ELECTRONICS: 100% solid state fully enclosed.
CONTROL CONSOLE: The control console features a microprocessor, 37 key sealed membrane keypad, a LCD display, and an attached 6 foot power cord. The console housing consists of ABS plastic base and top pieces with a steel back plate.
CONTROL CABLE: The cable has two 22 AWG stranded copper conductors with semi-rigid PVC insulation. It also has a braided shield and a foil shield. The polyethylene jacket is rated at 300 volts. The cable is direct burial rated and measures approximately ¼” in diameter. This item is sold separately from the scoreboard.
JUNCTION BOX AND EXTENSION CABLE: A 4 ¼” x 2 ¼” x 2” junction box with a ¼” stereo jack mounted on the face plate is attached to the control cable at the point of operation. A 10 ft. extension cable connects the control console to the junction box.
SCORELINK 200 RF MODEM SYSTEM: This accessory can be used in place of control cable and junction box for this scoreboard without internal modifications to the scoreboard or the control console. Refer to the SCORELINK 200 RF MODEM SYSTEM OWNER’S HANDBOOK for more information.
WARRANTY: Five year limited warranty.
SCOREBOARD INSTALLATION
This part of the manual describes the mechanical and electrical installation of the scoreboard.
One of the items listed below must be purchased in order to complete the installation:
- Control cable (length dependent upon installation site layout)
- ScoreLink 200 RF Modem System
Items not provided by Electro-Mech Scoreboard Company that are necessary for
installation:
- Wall fasteners
- A grounded NEMA 5-15R 120 VAC receptacle for the control console at the
scorekeeper’s table.
Electro-Mech Scoreboard Company performs installations in some areas. In other areas, we can help you contact an independent installer. In areas in which installation service is not available from Electro-Mech Scoreboard Company, we will make every effort to answer your installation questions. Qualified personnel should perform the scoreboard installation. Consult national and local codes before installation.
MECHANICAL INSTALLATION
The mechanical installation includes mounting the scoreboard on the wall and attaching the optional bottom sponsor panel (if purchased) to the scoreboard.

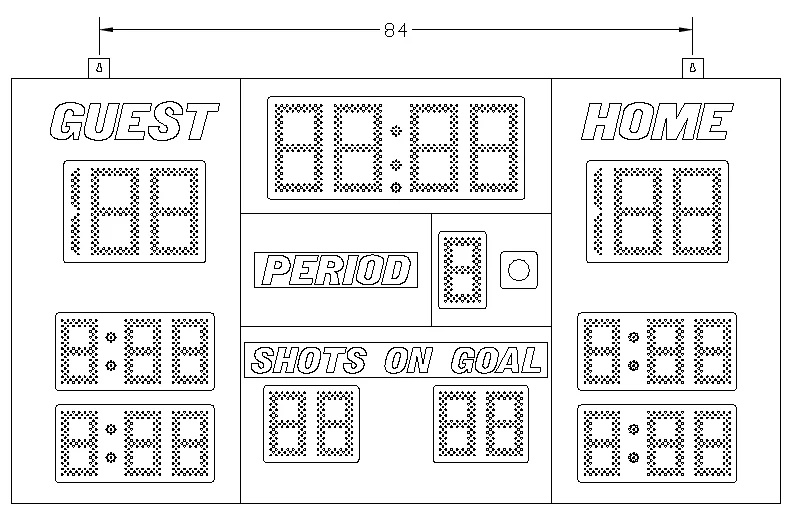

Mounting the Scoreboard The following steps describe how to mount the scoreboard on the wall:
1.There are two hanger brackets attached to the scoreboard near the top of the cabinet on the rear side. They may have been rotated down to facilitate shipping. Rotate the hanger brackets so that they protrude past the top of the scoreboard and tighten the bolts. 2.Lift the scoreboard to the desired location. There are two eyebolts mounted at the top of the cabinet that can be used to lift the scoreboard into place. Be sure to mount the center of the scoreboard close enough to the wall receptacle so that you can plug in the 6 ft. power cord. 3.Insert lag bolts or other suitable fasteners through the hanger brackets and fasten the scoreboard to the wall. Figure 1 shows the mounting point locations for model 8750.
ELECTRICAL INSTALLATION
We recommend a qualified electrician perform the needed electrical connections to ensure proper operation of the scoreboard. These connections include connecting the scoreboard to a power source, installing the ScoreLink 200 or the control cable, and connecting the control console. The installation of goal lights and multiple scoreboards is also described in this section.

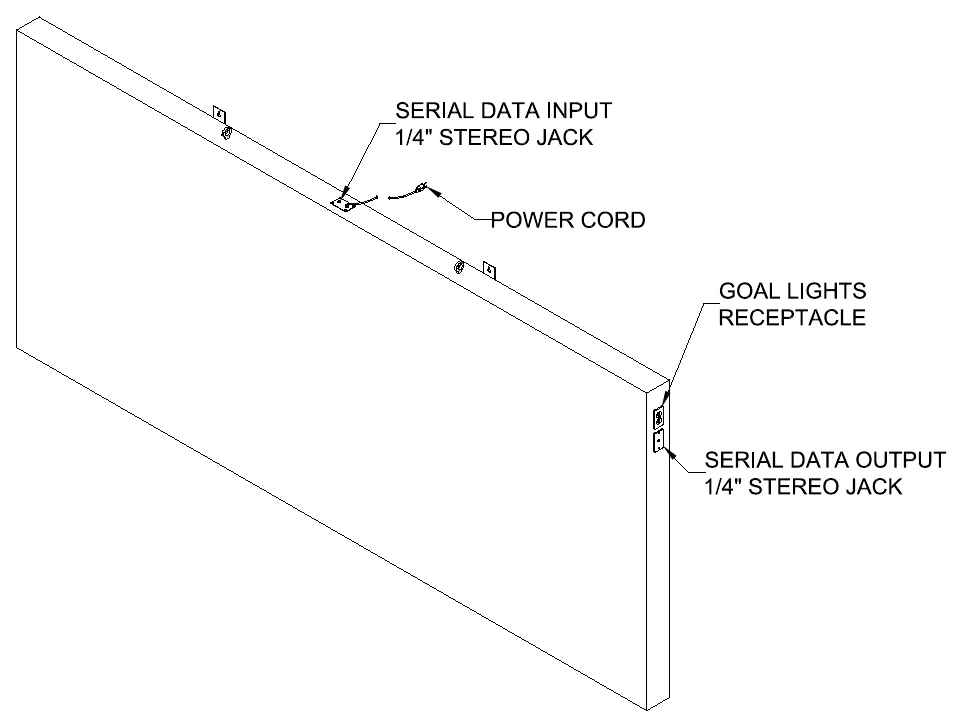

Power Connection The scoreboard requires 120 VAC service at the scoreboard to operate properly. Maximum power consumption of Model 8750: 153 Watts. The scoreboard has a 6 ft. attached power cord located at the top of the cabinet. Plug the power cord into a grounded NEMA 5-15R receptacle. The receptacle should be controlled by a separate circuit breaker so that the scoreboard can be turned off without turning off other electrical devices in the facility. Figure 2 shows the electrical connection points on the scoreboard.
ScoreLink 200 The SCORELINK 200 RF MODEM SET is intended to eliminate the control cable between the scoreboard and the control console on Electro-Mech Scoreboard MM and MP series scoreboardsas well as all LED scoreboards. If you have purchased this accessory, disregard the section of this manual titled Control Cable Installation. Refer to the SCORELINK 200 RF MODEM SET OWNER’S HANDBOOK for installation instructions.
Control Cable Installation The control cable connects the scoreboard to the control console. A small junction box with a ¼” stereo jack mounted on the face plate is attached to the control cable at the point of operation of the scoreboard. This junction box should be securely mounted within ten feet of the rear of the control console. Most customers order the control cable with the junction box attached. Some customers prefer to attach the junction box after the cable is installed. Those customers must solder the control cable to the ¼”stereo jack. Figure 3 shows the control cable wire connection points on the rear of the ¼” stereo jack.

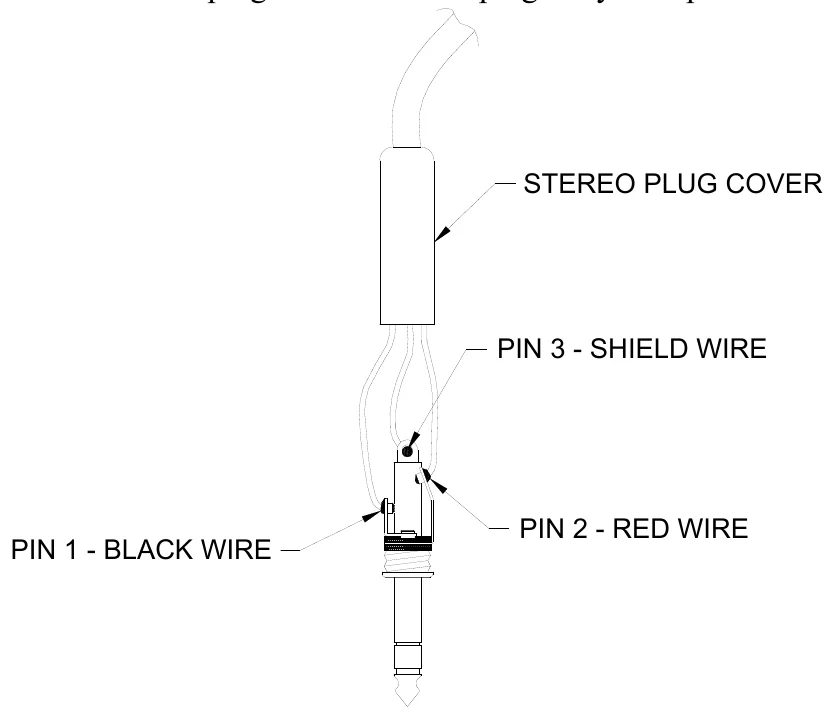

A ¼” stereo plug is attached to the scoreboard end of the control cable. It is inserted into the ¼” stereo jack mounted on top of the scoreboard. Most customers order the control cable with the ¼” stereo plug attached. Some customers prefer to attach it after the cable is installed. Those customers must solder the ¼” stereo plug to the cable according to the figure 4. Unscrew the stereo plug cover from the plug body to expose the contact pins.
Control Console Connections The 10 ft. extension cable has two molded ¼” stereo plugs attached to it. It is used to connect the control console to the junction box. The following steps describe how to connect the control console:
1.Plug one end of the extension cable into the ¼” stereo jack on the junction box or the ScoreLink 200 Transmitter, if purchased. 2.Plug the other end into one of the four ¼” stereo jacks mounted on the control console back plate. 3.Plug the control console power cord into a grounded NEMA 5-15R 120 VAC receptacle.
This product is equipped with a 3-wire grounding type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact a qualified electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding- type plug.
Goal Lights Installation This scoreboard can control a set of goal lights. The following steps describe how to install a goal light:
1. 2. 3. 4.
Mount the goal light in the desired location. Splice wires (not provided) to the two wire leads of the goal light. Attach a polarized plug to the other end of the wires. Insert the plug into the goal light receptacle on the right side of the scoreboard cabinet. The goal light receptacle is protected by a 1 amp fuse. Do not insert bulbs greater than 40 watts in the goal lights.
Installation of Two or More Scoreboards at the Same Site It is possible to operate multiple scoreboards or shot timers from the same console. Either install a control cable between each unit and the control console or install a ScoreLink 200 Transmitter at the control console and a ScoreLink Receiver at each scoreboard or shot timer. Additional scoreboards and shot timers can be controlled by connecting a control cable from the serial data output ¼” stereo jack on the right side of an installed scoreboard cabinet (figure 2) to the serial data input ¼” stereo jack on the top of the additional scoreboard or shot timers. Attach ¼” stereo plugs on each end of these cables according to figure 4. Never splice the control cables together or connect them to the same junction box. Each scoreboard will need to be connected to 120 VAC service.
SCOREBOARD STARTUP
1.Place the circuit breaker for the scoreboard in the ON position. 2.Plug one end of the extension cable into ¼”stereo jack on the junction box or the ScoreLink 200 Transmitter, if purchased. 3.Plug the other end into the ¼”stereo jack mounted on the control console back plate. 4.Plug the control console power cord into a grounded NEMA 5-15R 120 VAC receptacle. 5. If a ScoreLink 200 RF MODEM SYSTEM is installed with this scoreboard, plug the wall mount DC power supply into a grounded NEMA 5-15R 120 VAC receptacle and the male plug on the end of the attached cable into the Power jack on the Transmitter.
GAME TIME OPERATION

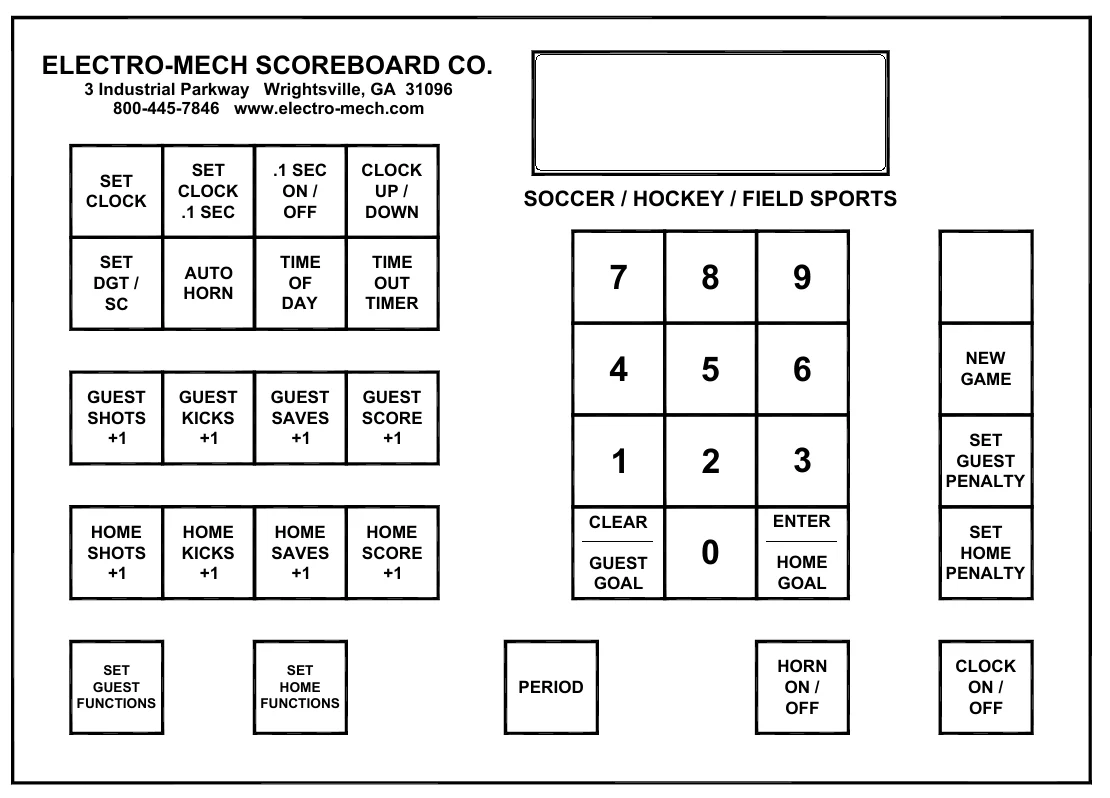

This scoreboard is operated with a 37-key control console. Figure 5 shows the keypad layout on the control console.
Immediately after the control console power cord is plugged into a 120 VAC source, the console LCD display will read:
ELECTRO-MECH 273 SCOREBOARD Hocky
After a few seconds the display will read:
000 D15:00 0 000 00 00 0 00
The scoreboard will display:
CLOCK – 15:00 GUEST – 0 HOME – 0 PERIOD – 0

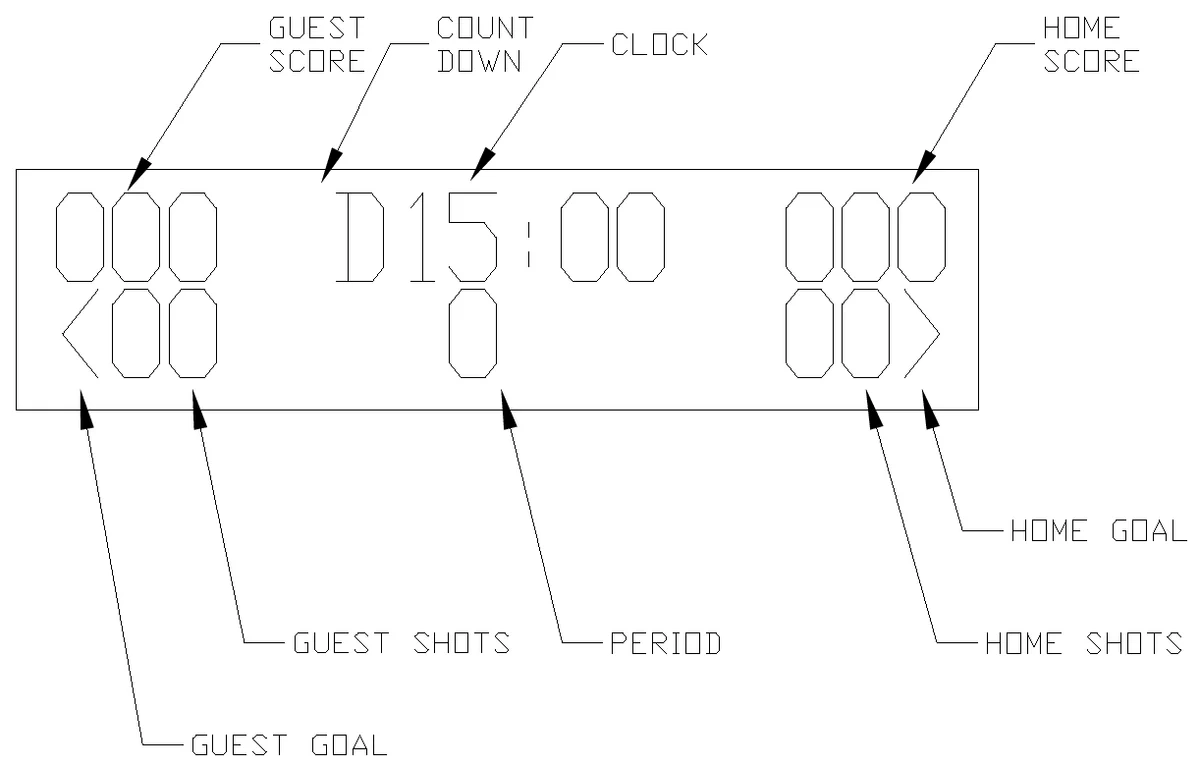

The control console LCD display shows the same information as the scoreboard. Note: In some functions a 0 will be blanked on the scoreboard, but not on the console. Because this console program is used for a number of models of scoreboards, some functions will appear on the console LCD display that are not present on the scoreboard. Figure 6 explains the LCD display layout.
Control Console Key Functions
1.SET CLOCK – This key sets the time displayed on the scoreboard clock. Press [SET CLOCK]. The console LCD display will read:
000 D15:00 000 SET CLK <15:00>
Pressthe keypad numbers for the time, [ENTER]. Example: Press [SET CLOCK], [6], [0], [0], [0], [ENTER]on the control console. 60:00 will be displayed on the clock section of the scoreboard.
2.SET CLOCK .1 SEC – This key is used to set the scoreboard clock to a time less than one minute when tenth of a second accuracy is required. Press [SET CLOCK .1 SEC]. The console LCD display will read:
000 D15:00 000 SET SEC <00.0>
Pressthe keypad numbers for the time, [ENTER]. Example: Press [SET CLOCK .1 SEC], [5], [3], [8], [ENTER]on the control console. 53.8 will be displayed on the clock section of the scoreboard.
3..1 SEC ON/OFF – This key is used to enable or disable the display of tenths of seconds on the scoreboard. The use of this key has a visible effect on the scoreboard only if the game clock is less than one minute. This mode is enabled when the control console is turned on. If it is disabled, the LCD display on the control console will still show 1/10th second timing, but the scoreboard will not display it. To turn this function off, press [.1 SEC ON/OFF]. The console LCD display will read:
CLOCK .1 SEC
.1 SEC OFF <0>
| Press [0], [ENTER] | on the control console. | |
| 4. CLOCK UP/DOWN | – The clock can be set up to either count up or count down. | |
| The control console is set to the clock down mode when it is turned on. To make the | ||
| clock count up, press [CLOCK UP / DOWN]. The console LCD display will read: | ||
| GAME UP <1> | ||
| CLOCK DOWN <0> | ||
| Press [1], [ENTER] | on the control console | . The letter D in front of the game time on |
| the console LCD will be replaced with the letter U to indicate that the clock is in the | ||
| count up mode. To reset the clock to count down mode, press [CLOCK UP / | ||
| DOWN], [0], [ENTER] | on the control console . |
5.SET DGT / SC –The timer should be set prior to the start of a game. The shot timer is preset to 25 seconds. To change either one of these times, press [SET DGT / SC]. The console LCD display will read:
000 D15:00 000 DELAY TIME <25>
Press the keypad numbers to set the timer, [ENTER].
6.AUTO HORN – This key allows the operator to control the end of period horn and the time out horn. The horn sounds for two seconds when the clock reaches 0:00 at the end of the period. The end of period horn can be disabled by pressing [AUTO HORN]. The console LCD display will read:
GAME HORN
<1>ON <0>OFF
Press [0], [ENTER]to disable the horn. The console LCD display will then read:
TO/DG HORN
<1>ON <0>OFF
| The time out horn is normally disabled. To enable the horn to sound at the end of the | ||
| time out, press | [1], [ENTER] | on the control console. |
| 7. TIME OF DAY | – The time of day can be displayed on the clock section of the | |
| scoreboard. | THE GAME CLOCK WILL BE INOPERABLE UNTIL THE | |
| TIME OF DAY FUNCTION IS TURNED OFF | . To turn the time of day clock on, | |
| press [TIME OF DAY] | . The console LCD display will read: | |
| TIME OF ON <1> | ||
| DAY CLOCK OFF<0> |
| Press [1], [ENTER] on the control console. The console LCD display will then read: | |||
| 000 C12:00 000 | |||
| SET CLK <12:00> | |||
| Press the keypad numbers for the time | , [ENTER] | . The letter C will be displayed on | |
| the console LCD display to the left of the time to indicate that the time of day | |||
| function is active. The scoreboard will display the time of day. | |||
| 8. TIME OUT TIMER | – To set the Time Out timer, press [TIME OUT TIMER] | . The | |
| console LCD display will read: | |||
| 000 D15:00 000 | |||
| SET T-O <1:00> | |||
| Press the keypad numbers for the time | , [ENTER] | . After the ENTER key is pressed, | |
| the letter T is displayed to the left of the time on the LCD display and the TIME OUT | |||
| TIMER immediately begins to count down to 0. The scoreboard will not display the | |||
| Time Out time. |
| 9. | GUEST SHOTS +1 | – This key is used to increment the guest shots on goal by 1. | |
| 10. | GUEST SCORE +1 | – This key is used to increment the guest score by 1. | |
| 11. | HOME SHOTS +1 | – This key is used to increment the home shots on goal by 1. | |
| 12. | HOME SCORE +1 | – This key is used to increment the home score by 1. | |
| 13. | SET GUEST FUNCTIONS | – This key is used to set the guest score and guest shots | |
| on goal. Press [SET GUEST SCORE]. The console LCD display will read: | |||
| 000 D15:00 000 | |||
| SET GUEST <000> |
Press the keypad numbers for the score, [ENTER]. The console LCD display will then read:
000 D15:00 000 GUEST SHOTS <00>
Press the keypad numbers to set the guest shots on goal, [ENTER].
14.SET HOME FUNCTIONS – This key is used to set the home score and home shots on goal. Press [SET HOME SCORE]. The console LCD display will read:
000 D15:00 000 SET HOME <000>
Press the keypad numbers for the score, [ENTER]. The console LCD display will then read:
000 D15:00 000 HOME SHOTS <00>
| Press the keypad numbers to set the home shots on goal | , [ENTER] . | |
| 15. | PERIOD – This key is used to increment the period by 1. | |
| 16. | HORN ON/OFF – This key is used to sound the horn for ½ second. | |
| 17. | CLOCK ON/OFF – This key is used to start and stop the clock. | |
| 18. | NEW GAME – This key is used to reset all the scoreboard functions to their default | |
| settings. To reset the scoreboard, press [NEW GAME] | . The console LCD display | |
| will read: |
RESET YES<1> SCOREBOARD NO<0>
Press [1], [ENTER]on the control console. The scoreboard will reset its functions.
19.SET GUEST PENALTY – This key is used to set the guest penalty timers. Press [SET GUEST PENALTY]. The console LCD display will read:
000 D15:00 000 PLAYER #<1> <00>
Press the keypad numbers for the player number, [ENTER]. The console LCD display will then read:
000 D15:00 000 SET TIME <0:00>
Press the keypad numbers to set the time, [ENTER]. To set the penalty timer for player #2, press [SET GUEST PENALTY] twice. Then enter the player number and time as previously described for player #2.
20.SET HOME PENALTY – This key is used to set the home penalty timers. Press [SET HOME PENALTY]. The console LCD display will read:
000 D15:00 000 PLAYER #<1> <00>
Press the keypad numbers for the player number, [ENTER]. The console LCD display will then read:
000 D15:00 000 SET TIME <0:00>
Press the keypad numbers to set the time, [ENTER]. To set the penalty timer for player #2, press [SET HOME PENALTY] twice. Then enter the player number and time as previously described for player #2.
21.CLEAR / GUEST GOAL – This key has two functions. It can be used to clear the information being entered into the control console. It can also be used to turn the optional guest goal lamp on and off. Press the [CLEAR / GUEST GOAL] key to turn the guest goal lamp on. Press it again to turn it off.
22.ENTER / HOME GOAL – This key has two functions. It can be used to enter information into the control console. It can also be used to turn the optional home goal lamp on and off. Press the [ENTER / HOME GOAL] key to turn the home goal lamp on. Press it again to turn it off.
The GUEST KICKS +1, GUEST SAVES +1, HOME KICKS +1, HOME SAVES +1 keys are not used with the 8750 scoreboard.
Horn Operation The horn sounds for two seconds when the game clock reaches 0 seconds. It sounds for 0.5 seconds when the [HORN] key is pressed.
Hand Held Clock Control Unit Operation The hand held clock control unit has an attached cable that is plugged into a jack on the control console back plate labeled Clock Hand held. It has one button that is used to toggle the clock on and off.
You should reset the scoreboard each time that it is turned on. Test out all the functions to ensure that the scoreboard is operating properly.
SCOREBOARD SHUTDOWN
1.Place the circuit breaker for the scoreboard in the OFF position. 2.Unplug the control console power cord. 3.Unplug the extension cable. 4.If a ScoreLink 200 RF MODEM SYSTEM is installed with this scoreboard, unplug the Transmitter’s wall mount power supply. 5.Store the control console and ScoreLink 200 Transmitter in a dry location. These units are not waterproof.
1. 2. 3. 4.
Proper scoreboard shutdown will help protect the scoreboard and control console from power surges and lightning strikes.
SERVICING THE SCOREBOARD
While your scoreboard was designed for years of trouble-free operation, some problems may occasionally occur. Electro-Mech Scoreboard Company offers onsite service in some areas. In other areas, we can help you contact an independent service technician. In areas in which service is not available from Electro-Mech Scoreboard Company, we will make every effort to answer your questions. Our trained personnel at Electro-Mech Scoreboard Company are ready to answer your questions from Monday to Friday during the hours of 8 AM to 5 PM Eastern Standard Time. Be sure to know your scoreboard model number when calling. Scoreboard replacement parts are always available. Damaged parts can usually be repaired at a significant cost savings. Our convenient toll free number is listed at the bottom of every page in this manual.
COMPONENT REPLACEMENT
LED Digits And Indicators Replacement
The LEDs that form digits and indicators are soldered on circuit boards mounted behind metal masks. Do not attempt to replace individual LEDs. In case of a malfunction, the entire LED circuit board must be removed. To avoid damage to the LED driver module,always turn off the power to the scoreboard when removing or replacing LED digits and indicators. Figure 7 shows the components of a LED digit assembly. LED indicator assemblies are similar in construction.
1.Remove the machine screws that fasten the mask to the face of the scoreboard. Caution: Support the mask with before removing the last screw. The ribbon cable that connects to the rear of the circuit board is not designed to support the weight of the assembly. 2.Disconnect the ribbon cable from the rear of the circuit board. Caution: Do not let the cable hang outside of the scoreboard. It is easily cut by sharp metal edges. Damage to the ribbon cable may create short circuit paths that will damage the LED driver module. 3.Place the assembly on a flat surface and remove the 6-32 kep lock nuts that hold the circuit board in place. 4.Remove the circuit board. 5.Align the mounting holes in the circuit board with the threaded studs on the mask and install the replacement digit on the mask. 6.Plug the ribbon cable onto the header on the back of the circuit board. 7.Fasten the mask to the face of the scoreboard using the machine screws.
Horn Replacement 1.Remove the machine screws that fasten the mask to the face of the scoreboard. 2.Pull the horn assembly out of the scoreboard and cut the two wires leading up to the rear of the horn assembly. 3.Splice the new horn assembly wires to the two wires inside the scoreboard. 4.Install the horn assembly and fasten it to the scoreboard face using the machine screws.

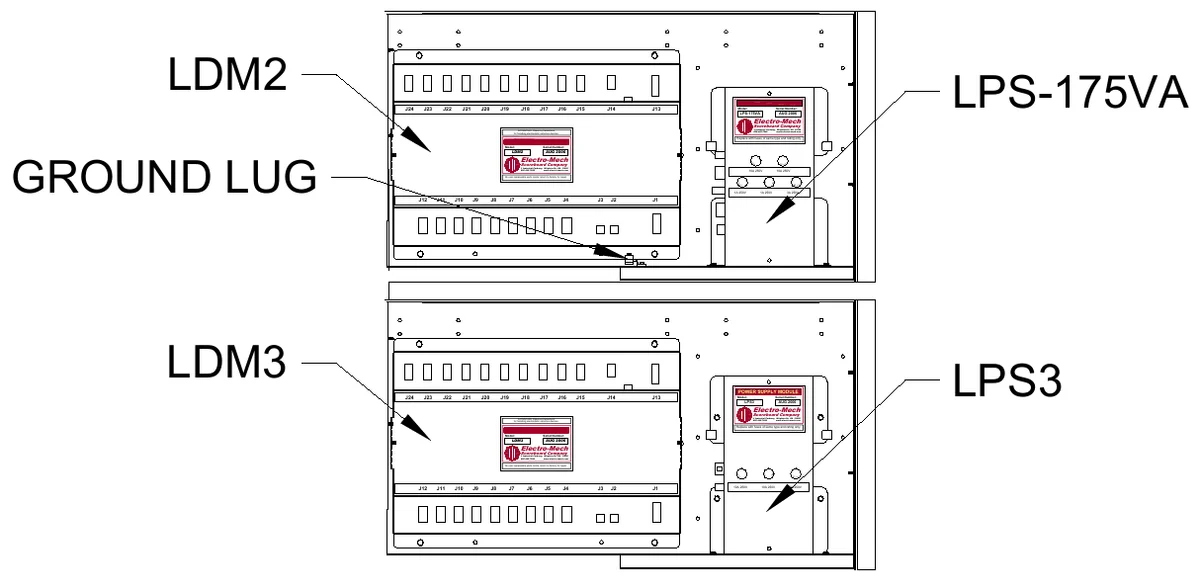

All other components are located behind the PERIOD panel. Figure 8 shows the view behind the PERIOD panel.
| LDM2 LED DRIVER MODULE FUNCTIONS | |||||||
|---|---|---|---|---|---|---|---|
| DRIVER | |||||||
| MODULE | |||||||
| JACK | FUNCTION #1 | FUNCTION #2 | |||||
| J1 | DRIVER MODULE DC POWER INPUT #1 | ||||||
| J2 | SERIAL DATA INPUT | ||||||
| J3 | SERIAL DATA OUTPUT | ||||||
| J4 | CLOCK SECONDS UNITS | ||||||
| J5 | CLOCK SECONDS TENS | ||||||
| J6 | CLOCK MINUTES UNITS | ||||||
| J7 | HOME SCORE UNITS | ||||||
| J8 | HOME SCORE TENS | HOME SCORE HUNDRED | |||||
| J9 | GUEST SCORE UNITS | ||||||
| J10 | GUEST TIMER #1 SECONDS UNITS | ||||||
| J11 | GUEST TIMER #1 SECONDS TENS | GUEST TIMER #1 COLON | |||||
| J12 | GUEST TIMER #1 MINUTES UNITS | ||||||
| J13 | DRIVER MODULE DC POWER INPUT #2 | ||||||
| J14 | HORN RELAY CONTROL | ||||||
| J15 | DECIMAL / COLON | ||||||
| J16 | PERIOD | ||||||
| J17 | CLOCK MINUTES TENS | ||||||
| J18 | HOME SHOTS UNITS | ||||||
| J19 | GUEST SHOTS UNITS | ||||||
| J20 | GUEST SCORE TENS | GUEST SCORE HUNDRED | |||||
| J21 | GUEST SHOTS TENS | ||||||
| J22 | - | ||||||
| J23 | - | ||||||
| J24 | HOME SHOTS TENS |
| LDM3 LED DRIVER MODULE FUNCTIONS | |||||||
|---|---|---|---|---|---|---|---|
| DRIVER | |||||||
| MODULE | |||||||
| JACK | FUNCTION #1 | FUNCTION #2 | |||||
| J1 | DRIVER MODULE DC POWER INPUT #1 | ||||||
| J2 | SERIAL DATA INPUT | ||||||
| J3 | SERIAL DATA OUTPUT | ||||||
| J4 | GUEST TIMER #2 SECONDS UNITS | ||||||
| J5 | GUEST TIMER #2 SECONDS TENS | ||||||
| J6 | GUEST TIMER #2 MINUTES UNITS | ||||||
| J7 | HOME TIMER #1 SECONDS UNITS | ||||||
| J8 | HOME TIMER #1 SECONDS TENS | HOME TIMER #1 COLON | |||||
| J9 | HOME TIMER #1 MINUTES UNITS | ||||||
| J10 | HOME TIMER #2 SECONDS UNITS | ||||||
| J11 | HOME TIMER #2 SECONDS TENS | HOME TIMER #2 COLON | |||||
| J12 | HOME TIMER #2 MINUTES UNITS | ||||||
| J13 | DRIVER MODULE DC POWER INPUT #2 | ||||||
| J14 | HORN RELAY CONTROL | ||||||
| J16 | - | GUEST TIMER #2 COLON | |||||
| J17 | - | ||||||
| J19 | - | ||||||
| J20 | - | ||||||
| J22 | - | ||||||
| J23 | - |
LED Driver Module Replacement Electrical connections to a LED driver module are made with ribbon cable polarized IDC sockets and locking ramp crimp terminal housings that mate with jacks on the module. The module is secured inside the scoreboard with four machine screws.
1.Unplug the electrical connections from the module. Do not cut the plastic tie wraps around the ribbon cables. 2.Remove the four screws. 3.Remove the module from the scoreboard. 4.Insert the replacement module in the scoreboard. 5.Secure the module with the four screws. 6.Insert the plugs into the jacks on the module.
To avoid damage to the module,always turn off the power to the scoreboard when removing or replacing it.

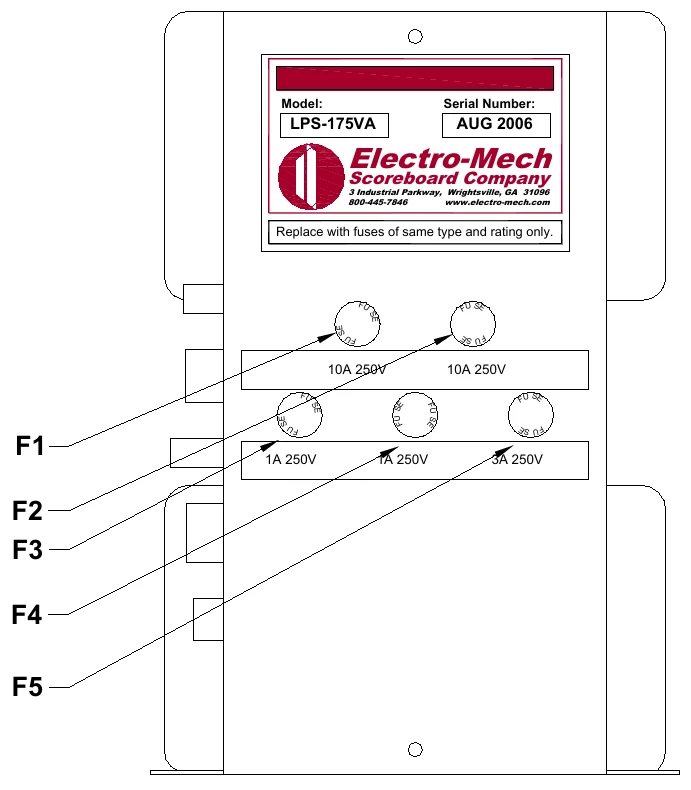

Figure 9 shows the location of the LPS-175VA Power Supply Module fuses. The tables below figure 9 list their functions.
| Figure 9 LPS-175VA POWER SUPPLY MODULE | |||
|---|---|---|---|
| LPS-175VA FUSES | |||
| FUSE RATING | FUNCTION | BUSSMAN PART # | |
| F1 10A 250V DRIVER MODULE DC POWER INPUT #1 | AGC-10 | ||
| F2 10A 250V DRIVER MODULE DC POWER INPUT #2 | AGC-10 | ||
| F3 1A 250V | GOAL LIGHT RECEPTACLE | AGC-1 | |
| F4 1A 250V | HORN | AGC-1 | |
| F5 3A 250V | TRANSFORMER PRIMARY | AGC-3 | |
| Note: Other manufacturer’s fuses may be substituted for the Bussmann fuses. | |||
| Figure 10 shows the location of the LPS3 Power Supply Module fuses. The tables below | |||
| figure 10 list their functions. |

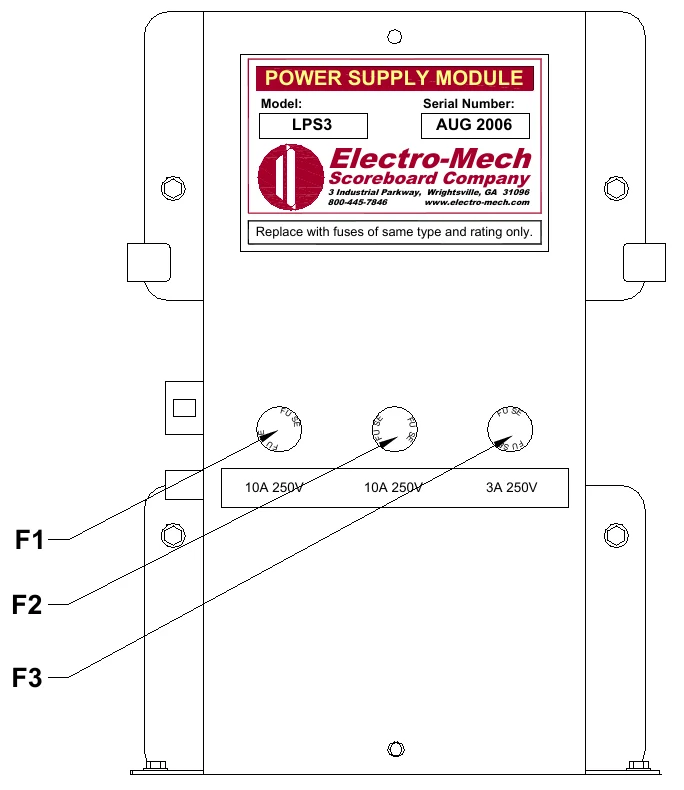

| Figure 10 LPS3 POWER SUPPLY MODULE | ||
|---|---|---|
| LPS3 FUSES | ||
| FUSE RATING | FUNCTION | BUSSMAN PART # |
| F1 3A 250V TRANSFORMER PRIMARY | AGC-3 | |
| F2 10A 250V DRIVER MODULE DC POWER INPUT #1 | AGC-10 | |
| F3 10A 250V DRIVER MODULE DC POWER INPUT #2 | AGC-10 | |
| Note: Other manufacturer’s fuses may be substituted for the Bussmann fuses. |
LED Power Supply Module Replacement Electrical connections to the LED POWER SUPPLY MODULES are made with keyed plugs that mate with jacks on the left side of the module. The module is secured inside the scoreboard with two machine screws.
1. 2. 3. 4. 5. 6.
Disconnect the plugs from the three jacks on the module. Remove the two machine screws. Remove the module from the scoreboard. Insert the replacement module in the scoreboard. Secure the module with the four screws. Insert the plugs into the jacks on the side of the module.
To avoid damage to the module,always turn off the power to the scoreboard when removing or replacing it.
ELECTRO-MECH SCOREBOARD CO. FIVE YEAR LIMITED WARRANTY
THE ELECTRICAL COMPONENTS OF ALL ELECTRO-MECH SCOREBOARDS ARE GUARANTEED FOR A PERIOD OF FIVE (5) YEARS FROM THE DATE OF INVOICE AGAINST DEFECTS IN WORKMANSHIP OR MATERIAL AND WILL BE REPLACED OR REPAIRED WITHOUT COST TO THE OWNER PROVIDED THE EQUIPMENT OR PARTS ARE RETURNED POSTAGE-PAID TO THE FACTORY IN WRIGHTSVILLE, GA. SHIPPING BACK TO THE OWNER WILL BE VIA UPS GROUND SERVICE EXCEPT WHEN AIR OR SPECIAL METHOD OF RETURN IS SPECIFIED BY THE OWNER, IN WHICH CASE SHIPPING WILL BE FREIGHT COLLECT.
EXCLUDED FROM THIS WARRANTY ARE FUSES.
THIS WARRANTY DOES NOT INCLUDE LABOR CHARGES INCURRED IN THE REMOVAL OF COMPONENT PARTS, SERVICE CALLS, OR DAMAGES RESULTING FROM IMPROPER INSTALLATION, IMPROPER OPERATION, OR PROBLEMS CAUSED BY ANY REPAIR, ALTERATION OR MODIFICATION OF THE SCOREBOARD NOT PERFORMED BY ELECTRO-MECH.
EQUIPMENT WHICH IS SUBJECTED TO ACCIDENT, NEGLECT, ABUSE, MISUSE OR OTHER NATURAL DISASTERS, INCLUDING BUT NOT LIMITED TO FIRE, WIND, LIGHTNING, OR FLOOD, IS NOT COVERED BY THIS GUARANTEE.
