Model 8650 Manual

MODEL 8650 HOCKEY SCOREBOARD

OWNER’S HANDBOOK

Thank you for choosing an Electro-Mech Scoreboard for your athletic complex. We are confident that your new scoreboard will give many years of reliable service.

Rev. 6 Revised: 09/28/2006

8650 HOCKEY SCOREBOARD SPECIFICATIONS

GENERAL: This ETL listed scoreboard includes the scoreboard cabinet, mounting hardware, control console, 10 ft. extension cable, and junction box.

DIMENSIONS: 108” L x 60” H x 6” D (8650 with side sponsor panel measures 156” L x 60” H x 6” D)

WEIGHT: Approximately 145 lbs (8650 with side sponsor panel weighs 175 lbs)

SCOREBOARD CONSTRUCTION: The outer frame is made from extruded aluminum. Internal structural parts may be extruded aluminum or formed from aluminum sheet. The face and back are made from aluminum sheet. The face is finished with enamel paint. Black is the standard face color. White is the standard color for the sponsor panel. The captions are white on a gray background. The optional bottom sponsor panel is mounted on a separate extruded aluminum frame.

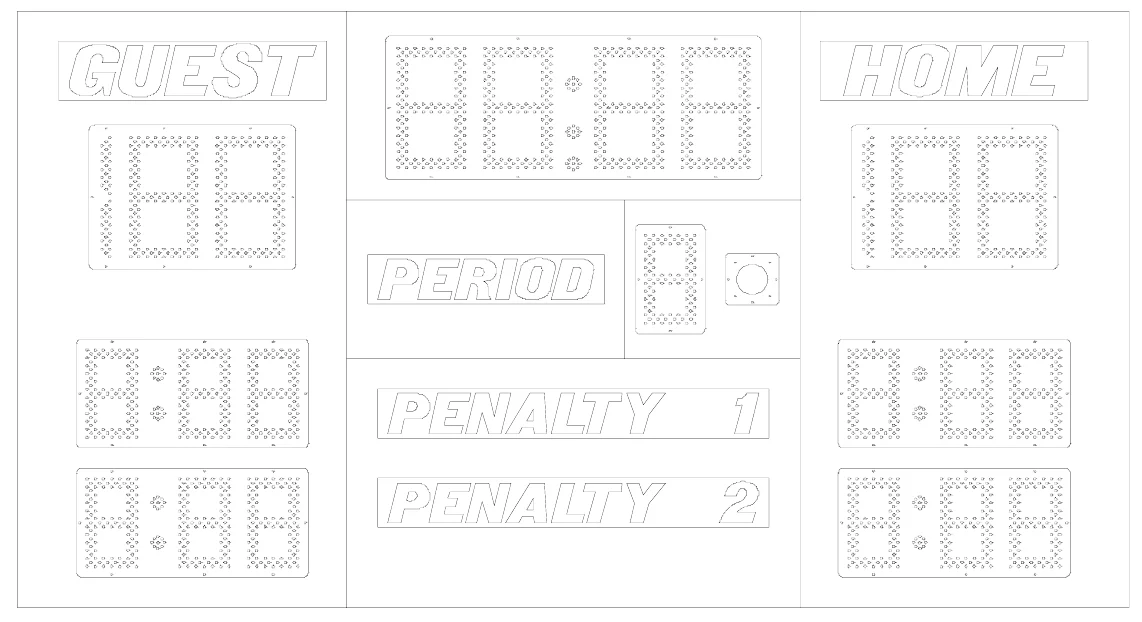

DISPLAY: The 8650 hockey scoreboard displays HOME and GUEST scores to 199, a 99:00 clock with 1/10th of a second timing, PERIODS to 4, two GUEST penalty timers, two HOME penalty timers. It has an internal horn and a duplex goal light receptacle.

DIGITS AND SYMBOLS: Light emitting diodes mounted on printed circuit boards form the digits and symbols. The clock is formed with 12” red digits, the HOME and GUEST scores are formed with 12” yellow digits, the PERIOD and penalty timers are formed with 9” green digits, and the colon and decimal symbols for the game clock are red, the colon symbols for the penalty clocks are green.

POWER REQUIREMENTS: Scoreboard - 120 VAC, 1.2 A, 60 Hz. The scoreboard has an attached 6 foot power cord. Control Console - 120 VAC, 0.5 A, 60 Hz

SCOREBOARD ELECTRONICS: 100% solid state fully enclosed.

CONTROL CONSOLE: The control console features a microprocessor, 37 key sealed membrane keypad, a LCD display, and an attached 6 foot power cord. The console housing consists of ABS plastic base and top pieces with a steel back plate.

CONTROL CABLE: The cable has two 22 AWG stranded copper conductors with semi-rigid PVC insulation. It also has a braided shield and a foil shield. The polyethylene jacket is rated at 300 volts. The cable is direct burial rated and measures approximately ¼” in diameter. This item is sold separately from the scoreboard.

JUNCTION BOX AND EXTENSION CABLE: A 4 ¼” x 2 ¼” x 2” junction box with a ¼” stereo jack mounted on the face plate is attached to the control cable at the point of operation. A 10 ft. extension cable connects the control console to the junction box.

SCORELINK 200 RF MODEM SYSTEM: This accessory can be used in place of control cable and junction box for this scoreboard without internal modifications to the scoreboard or the control console. Refer to the SCORELINK 200 RF MODEM SYSTEM OWNER’S HANDBOOK for more information.

WARRANTY: Five year limited warranty.

SCOREBOARD INSTALLATION

This part of the manual describes the mechanical and electrical installation of the scoreboard.

One of the items listed below must be purchased in order to complete the installation:

Control cable (length dependent upon installation site layout)
ScoreLink 200 RF Modem System

Items not provided by Electro-Mech Scoreboard Company that are necessary for

installation:

Wall fasteners
A grounded NEMA 5-15R 120 VAC receptacle for the control console at the

scorekeeper’s table.

Electro-Mech Scoreboard Company performs installations in some areas. In other areas, we can help you contact an independent installer. In areas in which installation service is not available from Electro-Mech Scoreboard Company, we will make every effort to answer your installation questions. Qualified personnel should perform the scoreboard installation. Consult national and local codes before installation.

MECHANICAL INSTALLATION

The mechanical installation includes mounting the scoreboard on the wall and attaching the optional bottom sponsor panel (if purchased) to the scoreboard.

Mounting the Scoreboard The following steps describe how to mount the scoreboard on the wall:

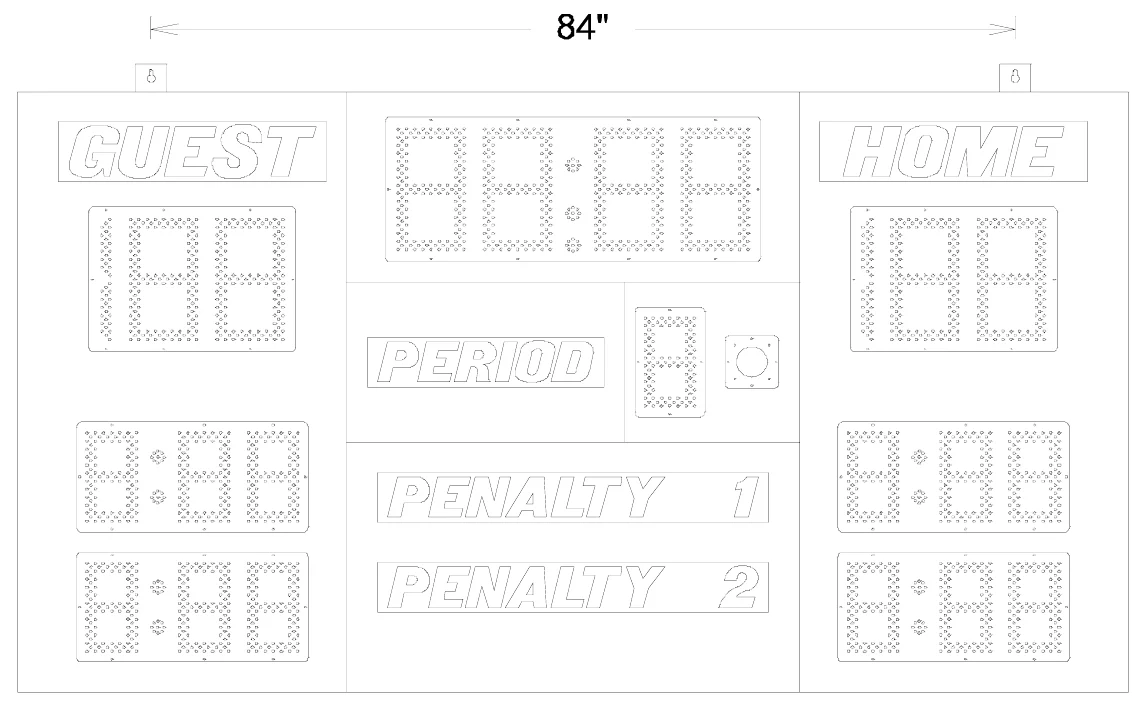

1.There are two hanger brackets attached to the scoreboard near the top of the cabinet on the rear side. They may have been rotated down to facilitate shipping. Rotate the hanger brackets so that they protrude past the top of the scoreboard and tighten the bolts. 2.Lift the scoreboard to the desired location. There are two eyebolts mounted at the top of the cabinet that can be used to lift the scoreboard into place. Be sure to mount the center of the scoreboard close enough to the wall receptacle so that you can plug in the 6 ft. power cord. 3.Insert lag bolts or other suitable fasteners through the hanger brackets and fasten the scoreboard to the wall. Figure 1 shows the mounting point locations for model 8650.

Figure 2 shows the mounting point locations for model 8650 with side sponsor panel.

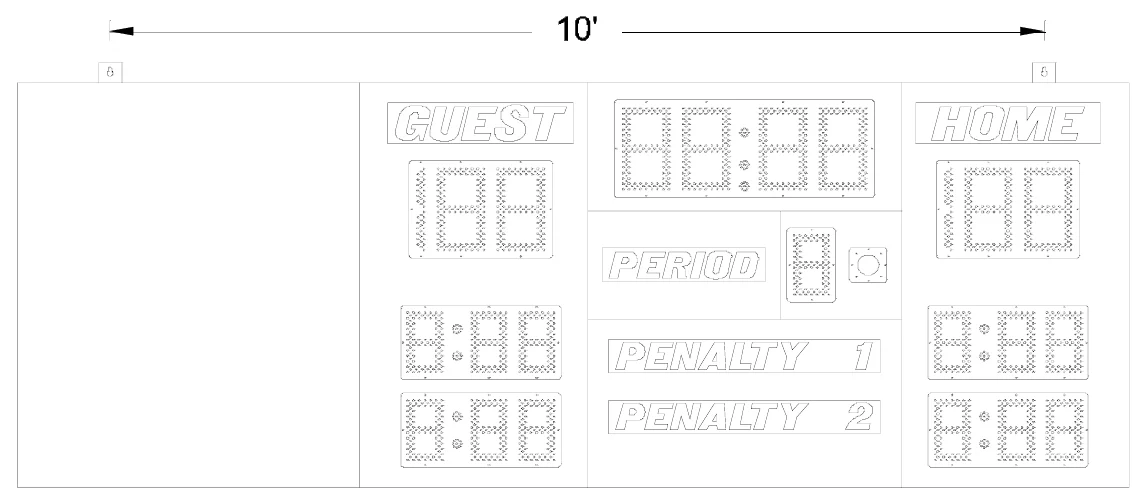

Figure 2 Model 8650 with Side Sponsor Panel Mounting Points

Attaching the Optional Bottom Sponsor Panel Two attachment plates, four bolts, and four washers are provided to attach the sponsor panel to the bottom of the scoreboard. The attachment points are located on the sides of the scoreboard and sponsor panel cabinets. The following steps describe how to attach the sponsor panel to the scoreboard:

1.Raise the sponsor panel to the bottom of the scoreboard. 2.Fasten an attachment plate to the right side of the scoreboard and sponsor panel using the provided washers and bolts as shown in figure 3. 3.Fasten the other attachment plate to the left side of the scoreboard and sponsor panel in the same manner.

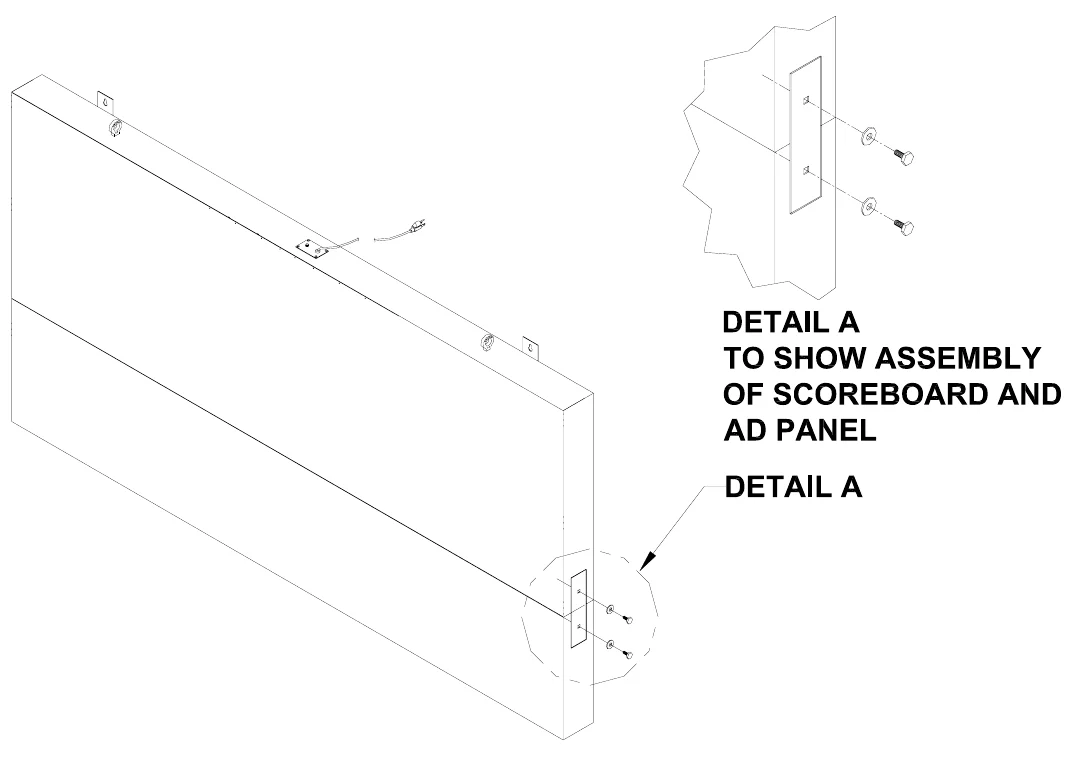

Figure 3 8650 with Bottom Sponsor Panel Attached

ELECTRICAL INSTALLATION

We recommend a qualified electrician perform the needed electrical connections to ensure proper operation of the scoreboard. These connections include connecting the scoreboard to a power source, installing the ScoreLink 200 or the control cable, and connecting the control console. The installation of goal lights and multiple scoreboards is also described in this section.

Power Connection The scoreboard requires 120 VAC service at the scoreboard to operate properly. Maximum power consumption of Model 8650: 144 Watts. The scoreboard has a 6 ft. attached power cord located at the top of the cabinet. Plug the power cord into a grounded NEMA 5-15R receptacle. The receptacle should be controlled by a separate circuit breaker so that the scoreboard can be turned off without turning off other electrical devices in the facility. Figure 4 shows the electrical connection points on the scoreboard.

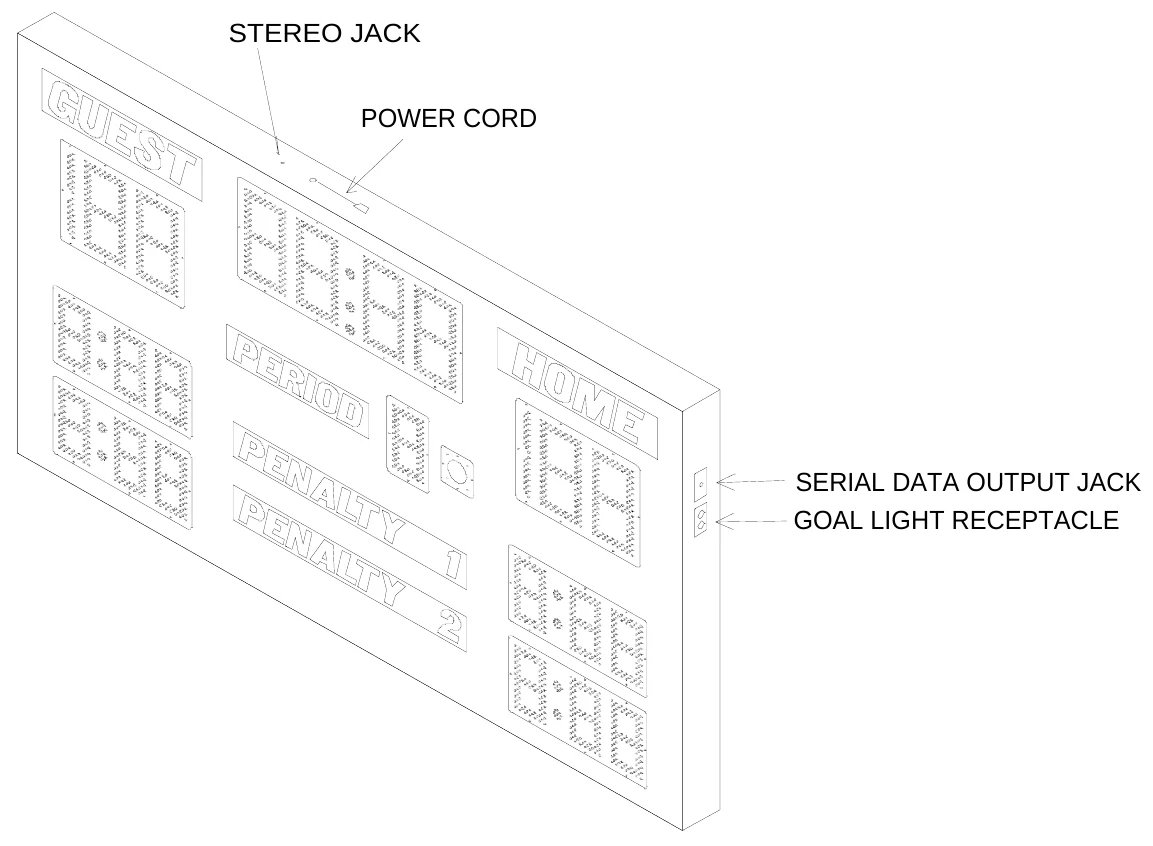

Figure 4 8650 Electrical Connection Points — STEREO JACK, POWER CORD, SERIAL DATA OUTPUT JACK GOAL LIGHT RECEPTACLE — Figure 4 8650 Electrical Connection Points Labelled: STEREO JACK · POWER CORD · SERIAL DATA OUTPUT JACK GOAL LIGHT RECEPTACLE

ScoreLink 200 The SCORELINK 200 RF MODEM SET is intended to eliminate the control cable between the scoreboard and the control console on Electro-Mech Scoreboard MM and MP series scoreboardsas well as all LED scoreboards. If you have purchased this accessory, disregard the section of this manual titled Control Cable Installation. Refer to the SCORELINK 200 RF MODEM SET OWNER’S HANDBOOK for installation instructions.

Control Cable Installation The control cable connects the scoreboard to the control console. A small junction box with a ¼” stereo jack mounted on the face plate is attached to the control cable at the point of operation of the scoreboard. This junction box should be securely mounted within ten feet of the rear of the control console. Most customers order the control cable with the junction box attached. Some customers prefer to attach the junction box after the cable is installed. Those customers must solder the control cable to the ¼”stereo jack. Figure 5 shows the control cable wire connection points on the rear of the ¼” stereo jack.

Figure 5 ¼” Stereo Jack Wiring Diagram — PIN 1 - BLACK WIRE PIN 2 - RED WIRE PIN 3 - SHIELD WIRE — Figure 5 ¼” Stereo Jack Wiring Diagram Labelled: PIN 1 - BLACK WIRE PIN 2 - RED WIRE PIN 3 - SHIELD WIRE

A ¼” stereo plug is attached to the scoreboard end of the control cable. It is inserted into the ¼” stereo jack mounted on top of the scoreboard. Most customers order the control cable with the ¼” stereo plug attached. Some customers prefer to attach it after the cable is installed. Those customers must solder the ¼” stereo plug to the cable according to the figure 6. Unscrew the stereo plug cover from the plug body to expose the contact pins.

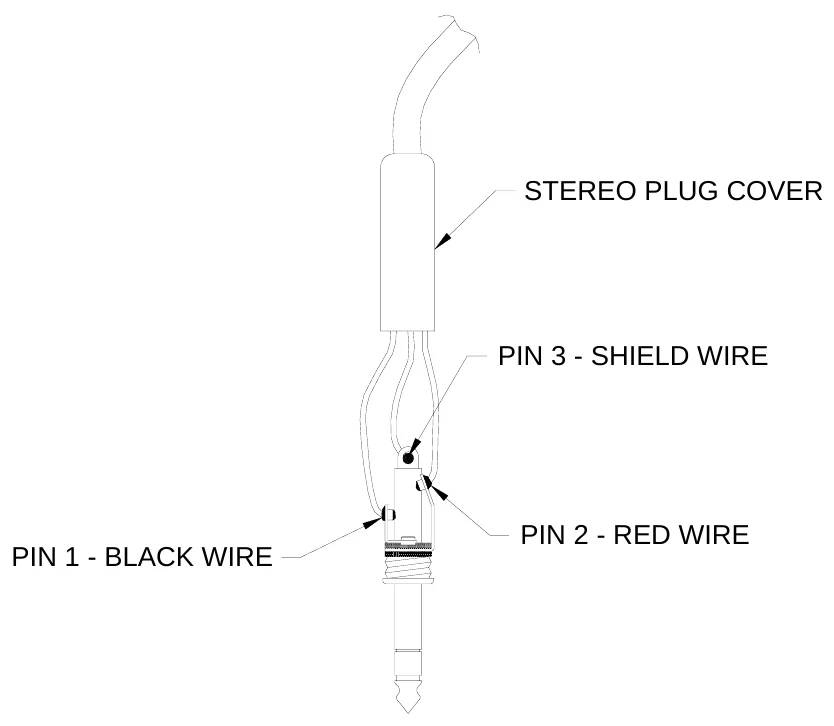

Figure 6 ¼” Stereo Plug Wiring Diagram — STEREO PLUG COVER, PIN 3 - SHIELD WIRE, PIN 2 - RED WIRE, PIN 1 - BLACK WIRE — Figure 6 ¼” Stereo Plug Wiring Diagram Labelled: STEREO PLUG COVER · PIN 3 - SHIELD WIRE · PIN 2 - RED WIRE · PIN 1 - BLACK WIRE

Control Console Connections The 10 ft. extension cable has two molded ¼” stereo plugs attached to it. It is used to connect the control console to the junction box. The following steps describe how to connect the control console:

1.Plug one end of the extension cable into the ¼” stereo jack on the junction box or the ScoreLink 200 Transmitter, if purchased. 2.Plug the other end into one of the four ¼” stereo jacks mounted on the control console back plate. 3.Plug the control console power cord into a grounded NEMA 5-15R 120 VAC receptacle.

This product is equipped with a 3-wire grounding type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact a qualified electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding- type plug.

Goal Lights Installation This scoreboard can control a set of goal lights. The following steps describe how to install a goal light:

1. 2. 3. 4.

Mount the goal light in the desired location. Splice wires (not provided) to the two wire leads of the goal light. Attach a polarized plug to the other end of the wires. Insert the plug into the goal light receptacle on the right side of the scoreboard cabinet. The goal light receptacle is protected by a 1 amp fuse. Do not insert bulbs greater than 40 watts in the goal lights.

Installation of Two or More Scoreboards at the Same Site It is possible to operate multiple scoreboards or shot timers from the same console. Either install a control cable between each unit and the control console or install a ScoreLink 200 Transmitter at the control console and a ScoreLink Receiver at each scoreboard or shot timer. Additional scoreboards and shot timers can be controlled by connecting a control cable from the serial data output ¼” stereo jack on the right side of an installed scoreboard cabinet (figure 4) to the serial data input ¼” stereo jack on the top of the additional scoreboard or shot timers. Attach ¼” stereo plugs on each end of these cables according to figure 6. Never splice the control cables together or connect them to the same junction box. Each scoreboard will need to be connected to 120 VAC service.

SCOREBOARD STARTUP

1.Place the circuit breaker for the scoreboard in the ON position. 2.Plug one end of the extension cable into ¼”stereo jack on the junction box or the ScoreLink 200 Transmitter, if purchased. 3.Plug the other end into the ¼”stereo jack mounted on the control console back plate. 4.Plug the control console power cord into a grounded NEMA 5-15R 120 VAC receptacle. 5. If a ScoreLink 200 RF MODEM SYSTEM is installed with this scoreboard, plug the wall mount DC power supply into a grounded NEMA 5-15R 120 VAC receptacle and the male plug on the end of the attached cable into the Power jack on the Transmitter.

GAME TIME OPERATION

This scoreboard is operated with a 37-key control console. Figure 7 shows the keypad layout on the control console.

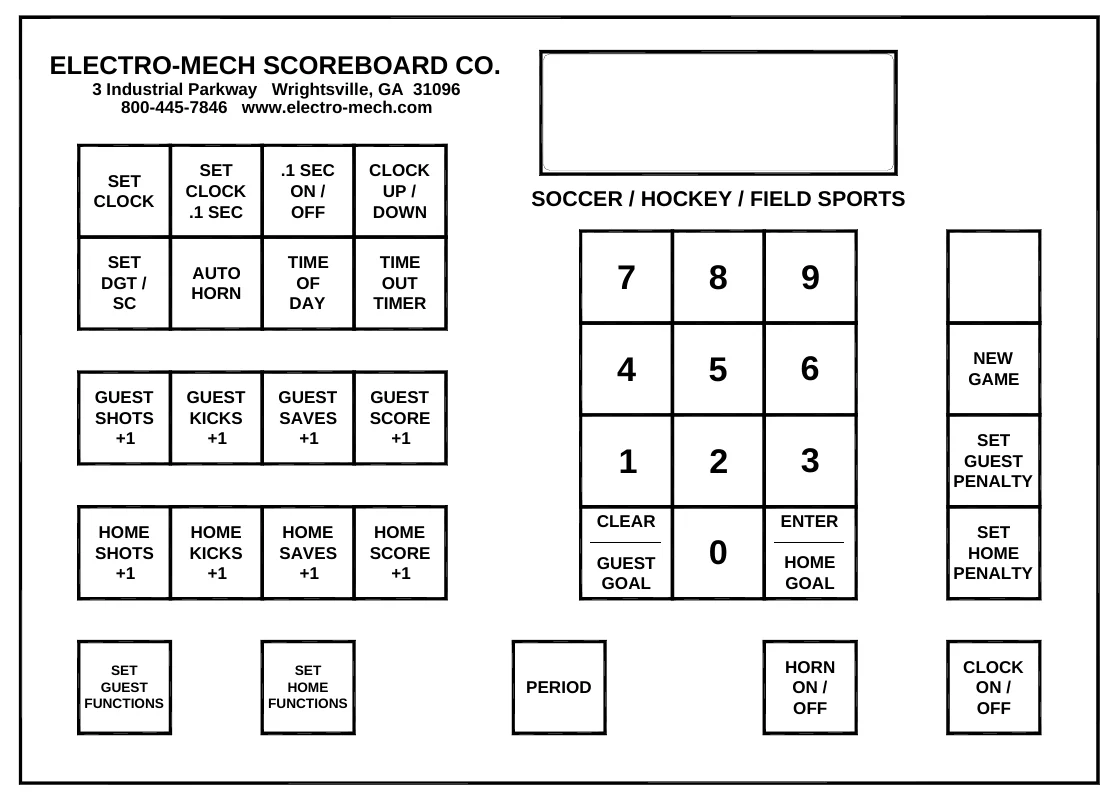

Figure 7 Keypad Layout — ELECTRO-MECH SCOREBOARD CO., 3 Industrial Parkway Wrightsville, GA 31096 800-445-7846 www.electro-mech.com, SET CLOCK, SET CLOCK .1 SEC, .1 SEC ON / OFF, CLOCK UP / DOWN, SOCCER / HOCKEY / FIELD SPORTS, SET DGT / SC, AUTO HORN, TIME OF DAY, TIME OUT TIMER, NEW GAME, GUEST SHOTS +1, GUEST KICKS +1, GUEST SAVES +1, GUEST SCORE +1, SET GUEST PENALTY, HOME SHOTS +1, HOME KICKS +1, HOME SAVES +1, HOME SCORE +1, CLEAR, ENTER, SET HOME PENALTY, GUEST GOAL, HOME GOAL, SET GUEST FUNCTIONS, SET HOME FUNCTIONS, HORN ON / OFF, CLOCK ON / OFF, PERIOD — Figure 7 Keypad Layout Labelled: ELECTRO-MECH SCOREBOARD CO. · 3 Industrial Parkway Wrightsville, GA 31096 800-445-7846 www.electro-mech.com · SET CLOCK · SET CLOCK .1 SEC · .1 SEC ON / OFF · CLOCK UP / DOWN · SOCCER / HOCKEY / FIELD SPORTS · SET DGT / SC · AUTO HORN · TIME OF DAY · TIME OUT TIMER · NEW GAME · GUEST SHOTS +1 · GUEST KICKS +1 · GUEST SAVES +1 · GUEST SCORE +1 · SET GUEST PENALTY · HOME SHOTS +1 · HOME KICKS +1 · HOME SAVES +1 · HOME SCORE +1 · CLEAR · ENTER · SET HOME PENALTY · GUEST GOAL · HOME GOAL · SET GUEST FUNCTIONS · SET HOME FUNCTIONS · HORN ON / OFF · CLOCK ON / OFF · PERIOD

Immediately after the control console power cord is plugged into a 120 VAC source, the console LCD display will read:

ELECTRO-MECH 273 SCOREBOARD Hocky

After a few seconds the display will read:

000 D15:00 0 000 00 00 0 00

The scoreboard will display:

CLOCK – 15:00 GUEST – 0 HOME – 0 PERIOD – 0

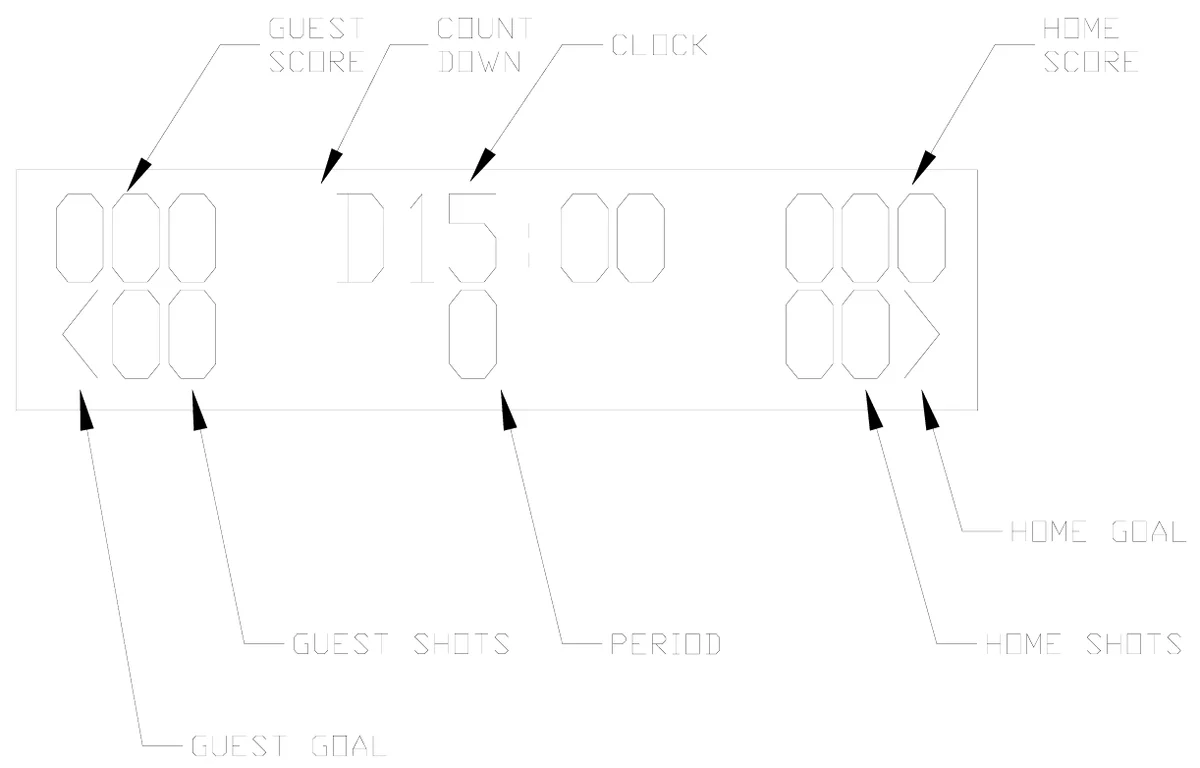

The control console LCD display shows the same information as the scoreboard. Note: In some functions a 0 will be blanked on the scoreboard, but not on the console. Because this console program is used for a number of models of scoreboards, some functions will appear on the console LCD display that are not present on the scoreboard. Figure 8 explains the LCD display layout.

Control Console Key Functions

1.SET CLOCK – This key sets the time displayed on the scoreboard clock. Press [SET CLOCK]. The console LCD display will read:

000 D15:00 000 SET CLK <15:00>

Pressthe keypad numbers for the time, [ENTER]. Example: Press [SET CLOCK], [6], [0], [0], [0], [ENTER]on the control console. 60:00 will be displayed on the clock section of the scoreboard.

2.SET CLOCK .1 SEC – This key is used to set the scoreboard clock to a time less than one minute when tenth of a second accuracy is required. Press [SET CLOCK .1 SEC]. The console LCD display will read:

000 D15:00 000 SET SEC <00.0>

Pressthe keypad numbers for the time, [ENTER]. Example: Press [SET CLOCK .1 SEC], [5], [3], [8], [ENTER]on the control console. 53.8 will be displayed on the clock section of the scoreboard.

3..1 SEC ON/OFF – This key is used to enable or disable the display of tenths of seconds on the scoreboard. The use of this key has a visible effect on the scoreboard only if the game clock is less than one minute. This mode is enabled when the control console is turned on. If it is disabled, the LCD display on the control console will still show 1/10th second timing, but the scoreboard will not display it. To turn this function off, press [.1 SEC ON/OFF]. The console LCD display will read:

CLOCK .1 SEC

.1 SEC OFF <0>

Press [0], [ENTER]on the control console.

4.CLOCK UP/DOWN – The clock can be set up to either count up or count down. The control console is set to the clock down mode when it is turned on. To make the clock count up, press [CLOCK UP / DOWN]. The console LCD display will read:

GAME CLOCK

GAME UP <1> CLOCK DOWN <0>

Press [1], [ENTER]on the control console. The letter D in front of the game time on the console LCD will be replaced with the letter U to indicate that the clock is in the count up mode. To reset the clock to count down mode, press [CLOCK UP / DOWN], [0], [ENTER]on the control console.

5.SET DGT / SC –The timer should be set prior to the start of a game. The shot timer is preset to 25 seconds. To change either one of these times, press [SET DGT / SC]. The console LCD display will read:

000 D15:00 000 DELAY TIME <25>

Press the keypad numbers to set the timer, [ENTER].

6.AUTO HORN – This key allows the operator to control the end of period horn and the time out horn. The horn sounds for two seconds when the clock reaches 0:00 at the end of the period. The end of period horn can be disabled by pressing [AUTO HORN]. The console LCD display will read:

GAME HORN

<1>ON <0>OFF

Press [0], [ENTER]to disable the horn. The console LCD display will then read:

TO/DG HORN

<1>ON <0>OFF

The time out horn is normally disabled. To enable the horn to sound at the end of the
time out, press	[1], [ENTER]	on the control console.
7. TIME OF DAY	– The time of day can be displayed on the clock section of the
scoreboard.	THE GAME CLOCK WILL BE INOPERABLE UNTIL THE
TIME OF DAY FUNCTION IS TURNED OFF		. To turn the time of day clock on,
press [TIME OF DAY]		. The console LCD display will read:
		TIME OF ON <1>
		DAY CLOCK OFF<0>

Press [1], [ENTER] on the control console. The console LCD display will then read:

000 C12:00 000 SET CLK <12:00>

Press the keypad numbers for the time, [ENTER]. The letter C will be displayed on the console LCD display to the left of the time to indicate that the time of day function is active. The scoreboard will display the time of day.

8.TIME OUT TIMER – To set the Time Out timer, press [TIME OUT TIMER]. The console LCD display will read:

000 D15:00 000 SET T-O <1:00>

Press the keypad numbers for the time, [ENTER]. After the ENTER key is pressed, the letter T is displayed to the left of the time on the LCD display and the TIME OUT TIMER immediately begins to count down to 0. The scoreboard will not display the Time Out time.

9.	GUEST SHOTS +1	– This key is used to increment the guest shots on goal by 1.
10.	GUEST SCORE +1	– This key is used to increment the guest score by 1.
11.	HOME SHOTS +1	– This key is used to increment the home shots on goal by 1.
12.	HOME SCORE +1	– This key is used to increment the home score by 1.
13.	SET GUEST FUNCTIONS		– This key is used to set the guest score and guest shots
	on goal. Press [SET GUEST SCORE]. The console LCD display will read:
			000 D15:00 000
			SET GUEST <000>

Press the keypad numbers for the score, [ENTER]. The console LCD display will then read:

000 D15:00 000 GUEST SHOTS <00>

Press [ENTER].

14.SET HOME FUNCTIONS – This key is used to set the home score and home shots on goal. Press [SET HOME SCORE]. The console LCD display will read:

000 D15:00 000 SET HOME <000>

Press the keypad numbers for the score, [ENTER]. The console LCD display will then read:

000 D15:00 000 HOME SHOTS <00>

	Press [ENTER]	.
15.	PERIOD	– This key is used to increment the period by 1.
16.	HORN ON/OFF	– This key is used to sound the horn for ½ second.
17.	CLOCK ON/OFF	– This key is used to start and stop the clock.
18.	NEW GAME	– This key is used to reset all the scoreboard functions to their default
	settings. To reset the scoreboard, press [NEW GAME]		. The console LCD display
	will read:
			RESET YES<1>
			SCOREBOARD NO<0>

Press [1], [ENTER]on the control console. The scoreboard will reset its functions.

19.SET GUEST PENALTY – This key is used to set the guest penalty timers. Press [SET GUEST PENALTY]. The console LCD display will read:

000 D15:00 000 PLAYER #<1> <00>

Press the keypad numbers for the player number, [ENTER]. The console LCD display will then read:

000 D15:00 000 SET TIME <0:00>

Press the keypad numbers to set the time, [ENTER]. To set the penalty timer for player #2, press [SET GUEST PENALTY] twice. Then enter the player number and time as previously described for player #2.

20.SET HOME PENALTY – This key is used to set the home penalty timers. Press [SET HOME PENALTY]. The console LCD display will read:

000 D15:00 000 PLAYER #<1> <00>

Press the keypad numbers for the player number, [ENTER]. The console LCD display will then read:

000 D15:00 000 SET TIME <0:00>

Press the keypad numbers to set the time, [ENTER]. To set the penalty timer for player #2, press [SET HOME PENALTY] twice. Then enter the player number and time as previously described for player #2.

21.CLEAR / GUEST GOAL – This key has two functions. It can be used to clear the information being entered into the control console. It can also be used to turn the optional guest goal lamp on and off. Press the [CLEAR / GUEST GOAL] key to turn the guest goal lamp on. Press it again to turn it off.

22.ENTER / HOME GOAL – This key has two functions. It can be used to enter information into the control console. It can also be used to turn the optional home goal lamp on and off. Press the [ENTER / HOME GOAL] key to turn the home goal lamp on. Press it again to turn it off.

The GUEST KICKS +1, GUEST SAVES +1, HOME KICKS +1, HOME SAVES +1 keys are not used with the 8650 scoreboard.

Horn Operation The horn sounds for two seconds when the game clock reaches 0 seconds. It sounds for 0.5 seconds when the [HORN] key is pressed.

Hand Held Clock Control Unit Operation The hand held clock control unit has an attached cable that is plugged into a jack on the control console back plate labeled Clock Hand held. It has one button that is used to toggle the clock on and off.

You should reset the scoreboard each time that it is turned on. Test out all the functions to ensure that the scoreboard is operating properly.

SCOREBOARD SHUTDOWN

1. 2. 3. 4.

1.Place the circuit breaker for the scoreboard in the OFF position. 2.Unplug the control console power cord. 3.Unplug the extension cable. 4.If a ScoreLink 200 RF MODEM SYSTEM is installed with this scoreboard, unplug the Transmitter’s wall mount power supply. 5.Store the control console and ScoreLink 200 Transmitter in a dry location. These units are not waterproof.

Proper scoreboard shutdown will help protect the scoreboard and control console from power surges and lightning strikes.

SERVICING THE SCOREBOARD

While your scoreboard was designed for years of trouble-free operation, some problems may occasionally occur. Electro-Mech Scoreboard Company offers onsite service in some areas. In other areas, we can help you contact an independent service technician. In areas in which service is not available from Electro-Mech Scoreboard Company, we will make every effort to answer your questions. Our trained personnel at Electro-Mech Scoreboard Company are ready to answer your questions from Monday to Friday during the hours of 8 AM to 5 PM Eastern Standard Time. Be sure to know your scoreboard model number when calling. Scoreboard replacement parts are always available. Damaged parts can usually be repaired at a significant cost savings. Our convenient toll free number is listed at the bottom of every page in this manual.

COMPONENT REPLACEMENT

LED Digits And Indicators Replacement

The LEDs that form digits and indicators are soldered on circuit boards mounted behind metal masks. Do not attempt to replace individual LEDs. In case of a malfunction, the entire LED circuit board must be removed. To avoid damage to the LED driver module,always turn off the power to the scoreboard when removing or replacing LED digits and indicators. Figure 9 shows the components of a LED digit assembly. LED indicator assemblies are similar in construction.

Figure 9 LED Digit Assembly — 6-32 KEP LOCK NUT, 6-32 KEP LOCK NUT, MASK, LED DIGIT — Figure 9 LED Digit Assembly Labelled: 6-32 KEP LOCK NUT · 6-32 KEP LOCK NUT · MASK · LED DIGIT

1.Remove the machine screws that fasten the mask to the face of the scoreboard. Caution: Support the mask with before removing the last screw. The ribbon cable that connects to the rear of the circuit board is not designed to support the weight of the assembly. 2.Disconnect the ribbon cable from the rear of the circuit board. Caution: Do not let the cable hang outside of the scoreboard. It is easily cut by sharp metal edges. Damage to the ribbon cable may create short circuit paths that will damage the LED driver module. 3.Place the assembly on a flat surface and remove the 6-32 kep lock nuts that hold the circuit board in place. 4.Remove the circuit board. 5.Align the mounting holes in the circuit board with the threaded studs on the mask and install the replacement digit on the mask. 6.Plug the ribbon cable onto the header on the back of the circuit board. 7.Fasten the mask to the face of the scoreboard using the machine screws.

Horn Replacement 1.Remove the machine screws that fasten the mask to the face of the scoreboard. 2.Pull the horn assembly out of the scoreboard and cut the two wires leading up to the rear of the horn assembly. 3.Splice the new horn assembly wires to the two wires inside the scoreboard. 4.Install the horn assembly and fasten it to the scoreboard face using the machine screws.

All other components are located behind the PERIOD panel and the panel between the penalty timers. Figure 10 shows the view behind the PERIOD panel and the panel between the penalty timers.

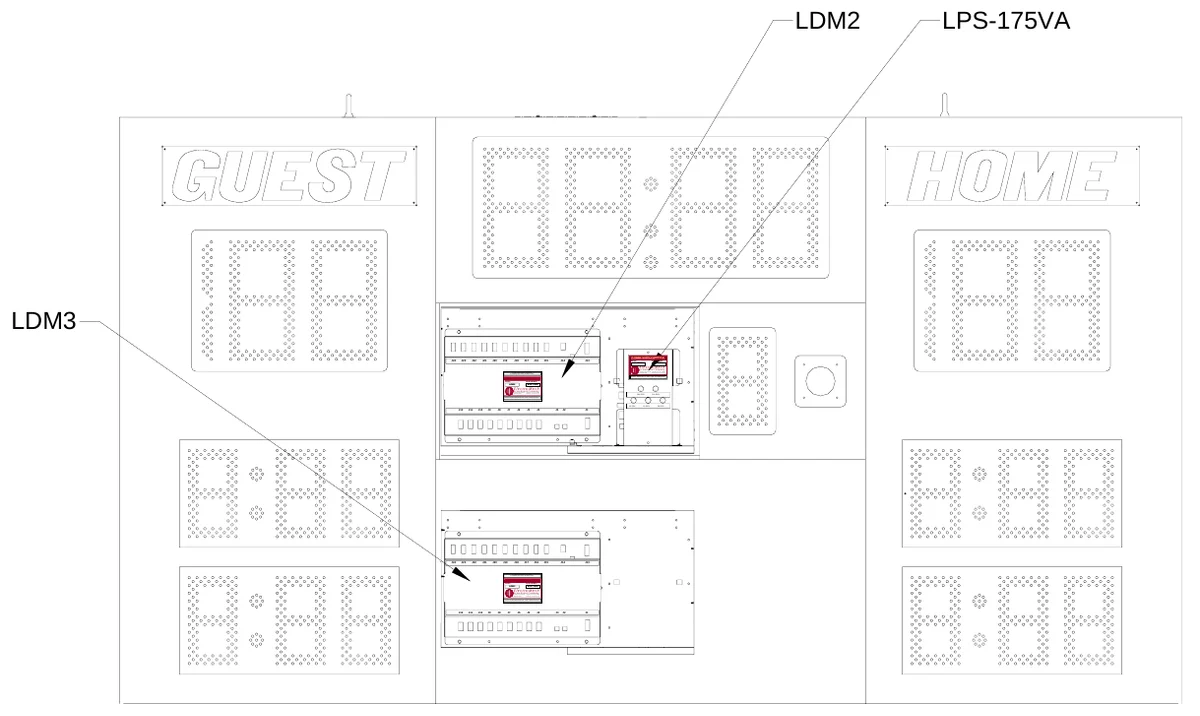

Figure 10 Scoreboard Electronics — LDM2, LPS-175VA, LDM3, J24, J23, J22, J21, J20, J19, J18, J17, J16, J15, J14, J13, Model:, POWER SUPPLY MODULE, A TTENTION: Observe precautions for handling electrostatic sensitive devices., LPS-175VA, Electro-Mech, Scoreboard Company, Serial Number:, Model:, LDM2, Scoreboard Company, Serial Number:, 3 Industrial Park wa y, Wrightsvil le, GA 31096 8 00-445-7846 www.ele ctro-m ech.com, AUG 2006, Electro-Mech, AUG 2006, Replace with fuses of same type and rating only., No user replaceable part s inside; return to factory for repair., 3 Industrial Park way, Wrightsvil le, GA 31096 8 00-445-7846 www.ele ctro-m ech.com, FU, F U, S E, 10A 250V, SE, FU, F U, S E, F U S E, 10A 250V, FU SE, J12, 1A 250V, SE, FU SE, F U S E, FU SE, J11, J10, J9, J8, J7, J6, J5, J4, J3, J2, J1, 1A 250V, 3A 250V, F U S E, J24, J23, J22, J21, J20, J19, J18, J17, J16, J15, J14, J13, Model:, LDM3, A TTENTION: Observe precautions for handling electrostatic sensitive devices., Electro-Mech, No user replaceable part s inside; return to factory for repair., Scoreboard Company, Serial Number:, 3 Industrial Park way, Wrightsvil le, GA 31096 8 00-445-7846 www.ele ctro-m ech.com, AUG 2006, J12, J11, J10, J9, J8, J7, J6, J5, J4, J3, J2, J1 — Figure 10 Scoreboard Electronics Labelled: LDM2 · LPS-175VA · LDM3 · J24 · J23 · J22 · J21 · J20 · J19 · J18 · J17 · J16 · J15 · J14 · J13 · Model: · POWER SUPPLY MODULE · A TTENTION: Observe precautions for handling electrostatic sensitive devices. · LPS-175VA · Electro-Mech · Scoreboard Company · Serial Number: · Model: · LDM2 · Scoreboard Company · Serial Number: · 3 Industrial Park wa y, Wrightsvil le, GA 31096 8 00-445-7846 www.ele ctro-m ech.com · AUG 2006 · Electro-Mech · AUG 2006 · Replace with fuses of same type and rating only. · No user replaceable part s inside; return to factory for repair. · 3 Industrial Park way, Wrightsvil le, GA 31096 8 00-445-7846 www.ele ctro-m ech.com · FU · F U · S E · 10A 250V · SE · FU · F U · S E · F U S E · 10A 250V · FU SE · J12 · 1A 250V · SE · FU SE · F U S E · FU SE · J11 · J10 · J9 · J8 · J7 · J6 · J5 · J4 · J3 · J2 · J1 · 1A 250V · 3A 250V · F U S E · J24 · J23 · J22 · J21 · J20 · J19 · J18 · J17 · J16 · J15 · J14 · J13 · Model: · LDM3 · A TTENTION: Observe precautions for handling electrostatic sensitive devices. · Electro-Mech · No user replaceable part s inside; return to factory for repair. · Scoreboard Company · Serial Number: · 3 Industrial Park way, Wrightsvil le, GA 31096 8 00-445-7846 www.ele ctro-m ech.com · AUG 2006 · J12 · J11 · J10 · J9 · J8 · J7 · J6 · J5 · J4 · J3 · J2 · J1

LDM2 LED DRIVER MODULE FUNCTIONS
DRIVER
MODULE
JACK				FUNCTION #1		FUNCTION #2
		DRIVER MODULE DC POWER INPUT
	J1				#1
	J2			SERIAL DATA INPUT
	J3		SERIAL DATA OUTPUT
	J4		CLOCK SECONDS UNITS
	J5		CLOCK SECONDS TENS
	J6		CLOCK MINUTES UNITS
	J7			HOME SCORE UNITS
	J8			HOME SCORE TENS		HOME SCORE HUNDRED
	J9			GUEST SCORE UNITS
	J10	GUEST TIMER #1 SECONDS UNITS
	J11	GUEST TIMER #1 SECONDS TENS				GUEST TIMER #1 COLON
	J12	GUEST TIMER #1 MINUTES UNITS
		DRIVER MODULE DC POWER INPUT
	J13				#2
	J14		HORN RELAY CONTROL
	J15			DECIMAL / COLON
	J16 PERIOD
	J17		CLOCK MINUTES TENS
	J20			GUEST SCORE TENS		GUEST SCORE HUNDRED

LDM3 LED DRIVER MODULE FUNCTIONS
DRIVER
MODULE
JACK					FUNCTION #1		FUNCTION #2
		DRIVER MODULE DC POWER INPUT
	J1					#1
	J2				SERIAL DATA INPUT
	J3			SERIAL DATA OUTPUT
	J4		GUEST TIMER #2 SECONDS UNITS
	J5		GUEST TIMER #2 SECONDS TENS
	J6		GUEST TIMER #2 MINUTES UNITS
	J7		HOME TIMER #1 SECONDS UNITS
	J8		HOME TIMER #1 SECONDS TENS				HOME TIMER #1 COLON
	J9		HOME TIMER #1 MINUTES UNITS
	J10		HOME TIMER #2 SECONDS UNITS
	J11		HOME TIMER #2 SECONDS TENS				HOME TIMER #2 COLON
	J12		HOME TIMER #2 MINUTES UNITS
		DRIVER MODULE DC POWER INPUT
	J13					#2
	J14			HORN RELAY CONTROL
	J16			GUEST TIMER #2 COLON

LED Driver Module Replacement Electrical connections to a LED driver module are made with ribbon cable polarized IDC sockets and locking ramp crimp terminal housings that mate with jacks on the module. The module is secured inside the scoreboard with four machine screws.

1.Unplug the electrical connections from the module. Do not cut the plastic tie wraps around the ribbon cables. 2.Remove the four screws. 3.Remove the module from the scoreboard. 4.Insert the replacement module in the scoreboard. 5.Secure the module with the four screws. 6.Insert the plugs into the jacks on the module.

To avoid damage to the module,always turn off the power to the scoreboard when removing or replacing it.

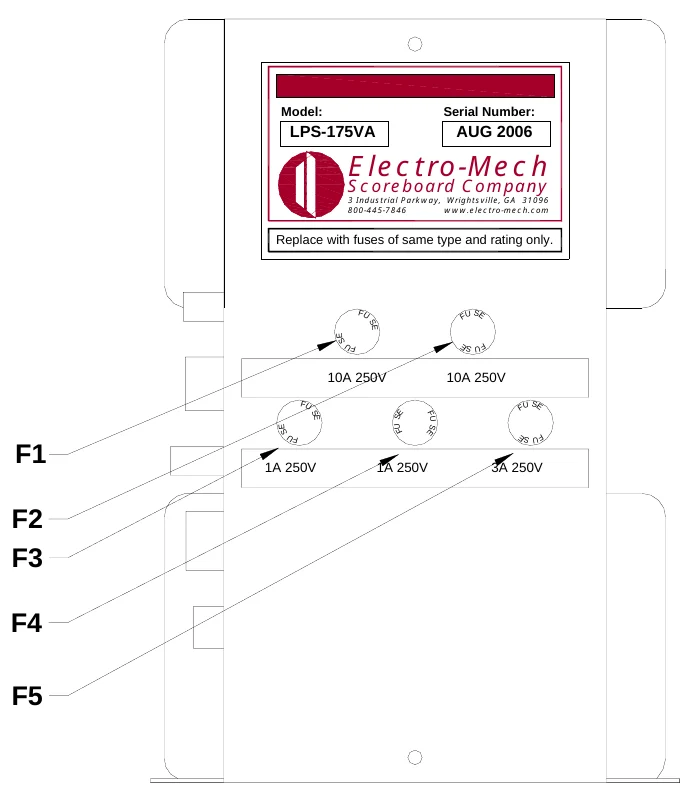

Figure 11 shows the location of the LPS-175VA Power Supply Module fuses. The tables below figure 11 list their functions.

Figure 11 LPS-175VA POWER SUPPLY MODULE — POWER SUPPLY MODULE, Model:, Serial Number:, LPS-175VA, AUG 2006, Electro-Mech, Scoreboard Company, 3 Industrial Parkway, Wrightsville, GA 31096 800-445-7846 www.electro-mech.com, Replace with fuses of same type and rating only., FU, S E, S F U E, S E, F U, S FU E, 10A 250V, 10A 250V, FU, S F U E, S E, FU SE, F U S E, S E, F U, S FU E, F1, 1A 250V, 1A 250V, 3A 250V, F2 F3, F4, F5 — Figure 11 LPS-175VA POWER SUPPLY MODULE Labelled: POWER SUPPLY MODULE · Model: · Serial Number: · LPS-175VA · AUG 2006 · Electro-Mech · Scoreboard Company · 3 Industrial Parkway, Wrightsville, GA 31096 800-445-7846 www.electro-mech.com · Replace with fuses of same type and rating only. · FU · S E · S F U E · S E · F U · S FU E · 10A 250V · 10A 250V · FU · S F U E · S E · FU SE · F U S E · S E · F U · S FU E · F1 · 1A 250V · 1A 250V · 3A 250V · F2 F3 · F4 · F5

Figure 11 LPS-175VA POWER SUPPLY MODULE
LPS-175VA FUSES
FUSE RATING			FUNCTION	BUSSMAN PART #
	F1 10A 250V DRIVER MODULE DC POWER INPUT #1			AGC-10
	F2 10A 250V DRIVER MODULE DC POWER INPUT #2			AGC-10
	F3	1A 250V	GOAL LIGHT RECEPTACLE	AGC-1
	F4 1A	250V	HORN	AGC-1
	F5	3A 250V	TRANSFORMER PRIMARY	AGC-3
Note: Other manufacturer’s fuses may be substituted for the Bussmann fuses.

LED Power Supply Module Replacement Electrical connections to the LED POWER SUPPLY MODULE are made with keyed plugs that mate with jacks on the left side of the module. The module is secured inside the scoreboard with two machine screws. 1.Disconnect the plugs from the three jacks on the module. 2.Remove the two machine screws. 3.Remove the module from the scoreboard. 4.Insert the replacement module in the scoreboard. 5.Secure the module with the four screws. 6.Insert the plugs into the jacks on the side of the module. To avoid damage to the module,always turn off the power to the scoreboard when removing or replacing it.

ELECTRO-MECH SCOREBOARD CO. FIVE YEAR LIMITED WARRANTY

THE ELECTRICAL COMPONENTS OF ALL ELECTRO-MECH SCOREBOARDS ARE GUARANTEED FOR A PERIOD OF FIVE (5) YEARS FROM THE DATE OF INVOICE AGAINST DEFECTS IN WORKMANSHIP OR MATERIAL AND WILL BE REPLACED OR REPAIRED WITHOUT COST TO THE OWNER PROVIDED THE EQUIPMENT OR PARTS ARE RETURNED POSTAGE-PAID TO THE FACTORY IN WRIGHTSVILLE, GA. SHIPPING BACK TO THE OWNER WILL BE VIA UPS GROUND SERVICE EXCEPT WHEN AIR OR SPECIAL METHOD OF RETURN IS SPECIFIED BY THE OWNER, IN WHICH CASE SHIPPING WILL BE FREIGHT COLLECT.

EXCLUDED FROM THIS WARRANTY ARE FUSES.

THIS WARRANTY DOES NOT INCLUDE LABOR CHARGES INCURRED IN THE REMOVAL OF COMPONENT PARTS, SERVICE CALLS, OR DAMAGES RESULTING FROM IMPROPER INSTALLATION, IMPROPER OPERATION, OR PROBLEMS CAUSED BY ANY REPAIR, ALTERATION OR MODIFICATION OF THE SCOREBOARD NOT PERFORMED BY ELECTRO-MECH.

EQUIPMENT WHICH IS SUBJECTED TO ACCIDENT, NEGLECT, ABUSE, MISUSE OR OTHER NATURAL DISASTERS, INCLUDING BUT NOT LIMITED TO FIRE, WIND, LIGHTNING, OR FLOOD, IS NOT COVERED BY THIS GUARANTEE.
