3250 FOOTBALL SCOREBOARD
OWNER’S HANDBOOK
Thank you for choosing an Electro-Mech Scoreboard for your athletic complex. We are confident that your new scoreboard will give many years of reliable service.
Rev. 7 Revised: 02/23/2007
3250 FOOTBALL SCOREBOARD SPECIFICATIONS
| GENERAL: | This ETL listed scoreboard includes the scoreboard cabinet, mounting hardware, control | ||||
| console, 10 ft. extension cable, and junction box. | |||||
| DIMENSIONS: | 3250: | 192” L x 95” H x 6” D, 3250 with a side sponsor panel: 288” L x 95” H x 6” D | |||
| WEIGHT: | 3250: | 337 lbs, 3250 with a side sponsor panel: 447 lbs | |||
| SCOREBOARD CONSTRUCTION: | The outer frame is made from extruded aluminum. Internal | ||||
| structural parts may be extruded aluminum or formed from aluminum sheet. The face and back | |||||
| are made from aluminum sheet. The face and masks are finished with enamel paint. Black is the | |||||
| standard color. The captions are white exterior grade vinyl. | |||||

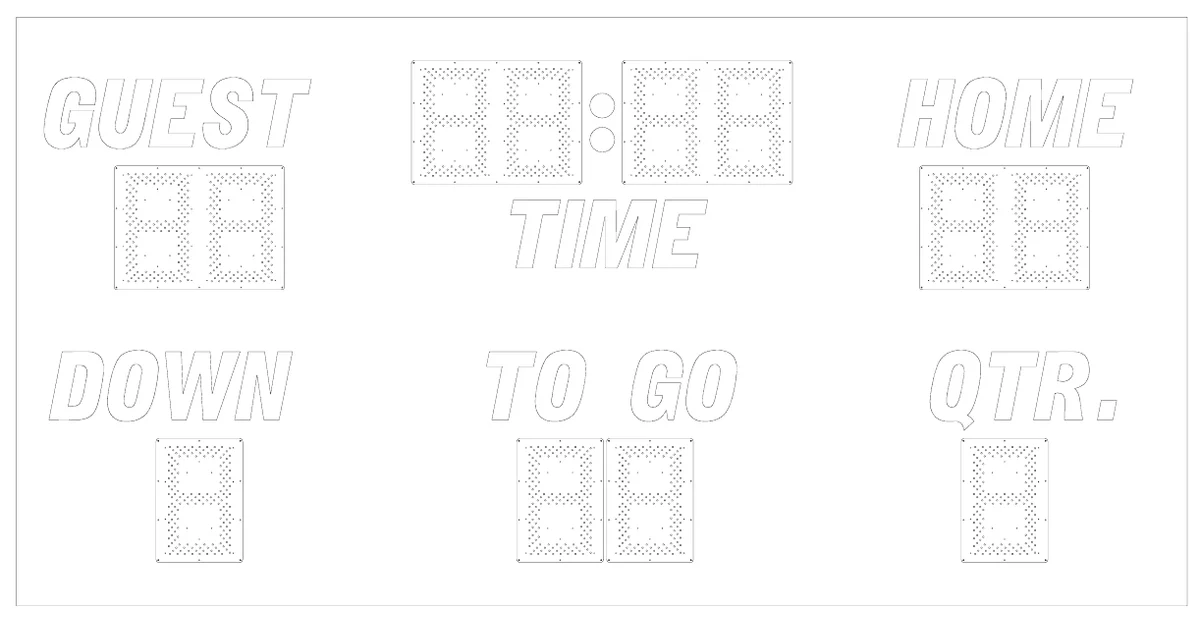

| DISPLAY: | The 3250 football scoreboard displays HOME and GUEST scores, and YDS. TO GO to 99, | ||||
| TIME to 99 minutes and 59 seconds (99:59), DOWN and QTR to 4. | |||||
| DIGITS AND INDICATORS: | Red light emitting diodes mounted on printed circuit boards form the | ||||
| 18”digits. | |||||
| POWER REQUIREMENTS: Scoreboard - | 120 VAC, 1.8 A, 60 Hz. Control Console - 120 VAC, 0.5 | ||||
| A, 60 Hz | |||||
| SCOREBOARD ELECTRONICS: | 100% solid state fully enclosed. | ||||
| CONTROL CONSOLE: | The control console features a microprocessor, 37 key sealed membrane | ||||
| keypad, a LCD display, an attached 6 foot power cord. The console housing consists of ABS | |||||
| plastic base and top pieces with a steel back plate. | |||||
| CONTROL CABLE: | The cable has two 22 AWG stranded copper conductors with semi-rigid PVC | ||||
| insulation. It also has a braided shield and a foil shield. The polyethylene jacket is rated at 300 | |||||
| volts. The cable is direct burial rated and measures approximately ¼” in diameter. This item is | |||||
| sold separately from the scoreboard. | |||||
| JUNCTION BOX AND EXTENSION CABLE: | A 4 ¼” x 2 ¼” x 2” junction box with a ¼” stereo jack | ||||
| mounted on the face plate is attached to the control cable at the point of operation. A 10 ft. | |||||
| extension cable connects the control console to the junction box. | |||||
| SCORELINK 300 RF MODEM SYSTEM: | This accessory can be used in place of control cable and | ||||
| junction box for this scoreboard without internal modifications to the scoreboard or the control | |||||
| console. Refer to the SCORELINK 300 RF MODEM SYSTEM OWNER’S HANDBOOK for | |||||
| more information. | |||||
| WARRANTY: | Five year limited warranty. |
SCOREBOARD INSTALLATION
This part of the manual describes the mechanical and electrical installation of the scoreboard.
One of the items listed below must be purchased in order to complete the installation:
- Control cable (length dependent upon installation site layout)
- ScoreLink 300 RF Modem System
Items not provided by Electro-Mech Scoreboard Company that are necessary for installation:
- Two posts (Additional posts are needed if optional side sponsor panels are purchased.)
- Power cable to connect the scoreboard to the power source
- Grounding hardware
- A grounded NEMA 5-15R 120 VAC receptacle for the control console at the scorekeeper’s table.
Items not provided that are recommended by Electro-Mech Scoreboard Company for installation:
- A weatherproof power disconnect at the scoreboard
Electro-Mech Scoreboard Company performs installations in some areas. In other areas, we can help you contact an independent installer. In areas in which installation service is not available from Electro-Mech Scoreboard Company, we will make every effort to answer your installation questions. Qualified personnel should perform the scoreboard installation. Consult national and local codes before installation.
MECHANICAL INSTALLATION
The mechanical installation includes installing the posts and mounting the scoreboard and the optional sponsor panels (if purchased) to the posts.

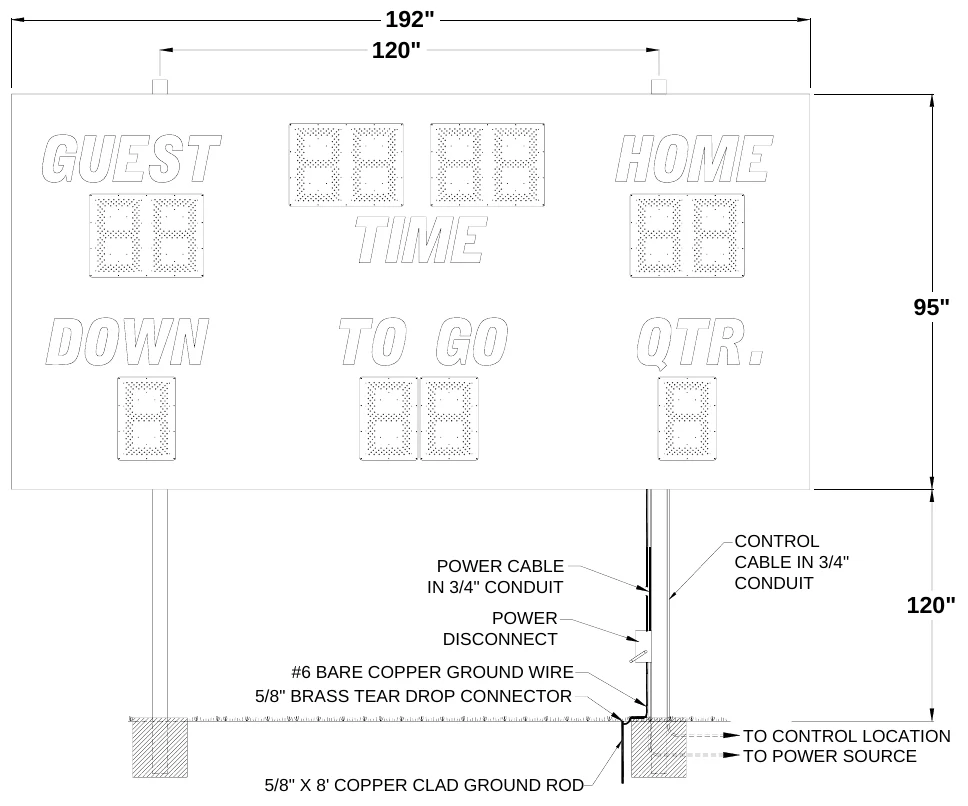

Post Installation The scoreboard mounts on two posts. Typically installers will use steel pipes or I-beams. In order to reduce the glare from the sun on the front of the scoreboard, position the posts so that the front of the scoreboard is angled away from the afternoon sun, if possible. The mounting hardware will accommodate posts up to 7 inches outer diameter. Sink the posts in reinforced concrete footings. Figure 1 shows the spacing of the posts for the 3250 scoreboard. The specifications for the posts and concrete footings are dependent upon the expected local wind and soil conditions, the height of the scoreboard from the ground, and the local building codes. Electro-Mech Scoreboard Company assumes no responsibility for the installation of scoreboards by others.

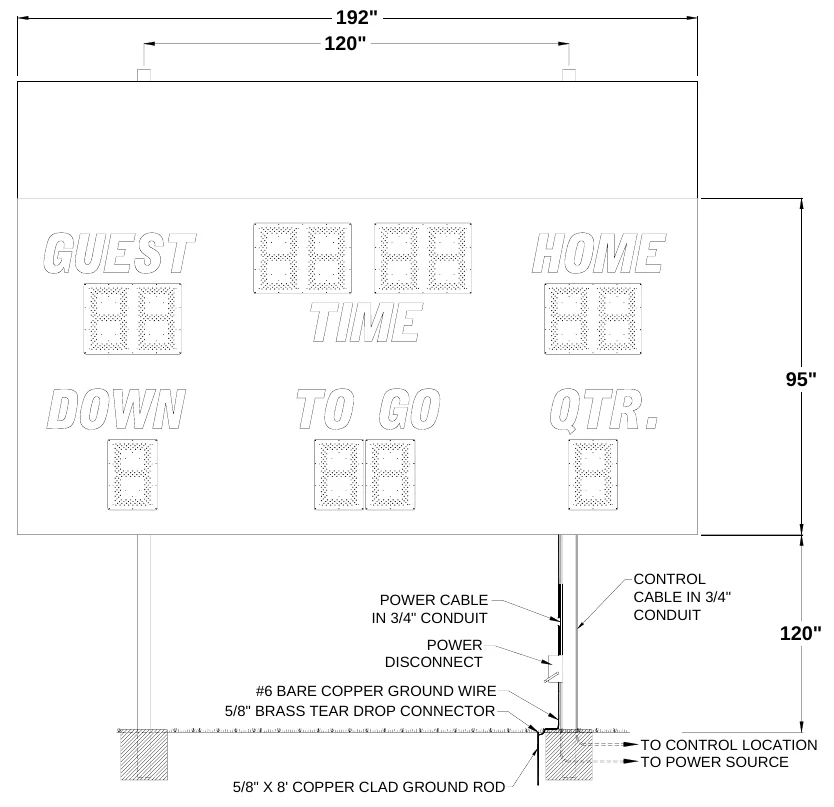

Figure 2 shows the spacing of the posts for a 3250 with an optional top sponsor panel. This panel is a separate unit that mounts on the same posts as the scoreboard.

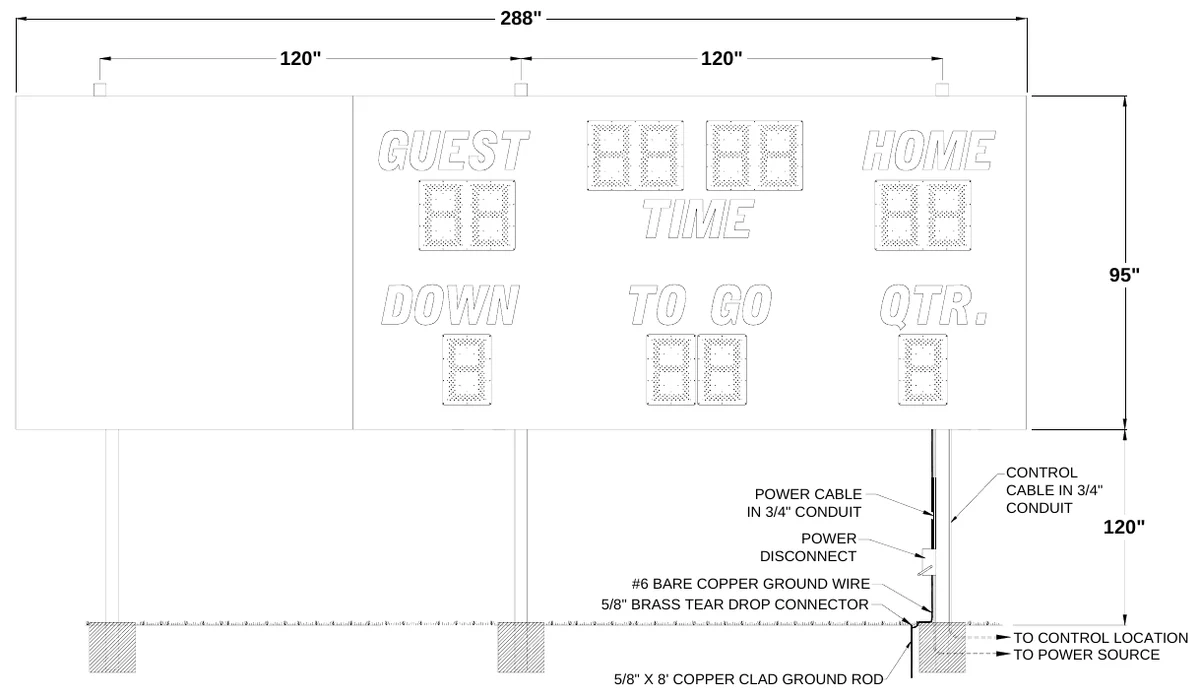

Three posts are needed for a 3250 with side sponsor panel. Figure 3 shows the spacing of the posts for a 3250 with side sponsor panel. The side sponsor panel is a separate assembly that bolts to the side of the scoreboard.

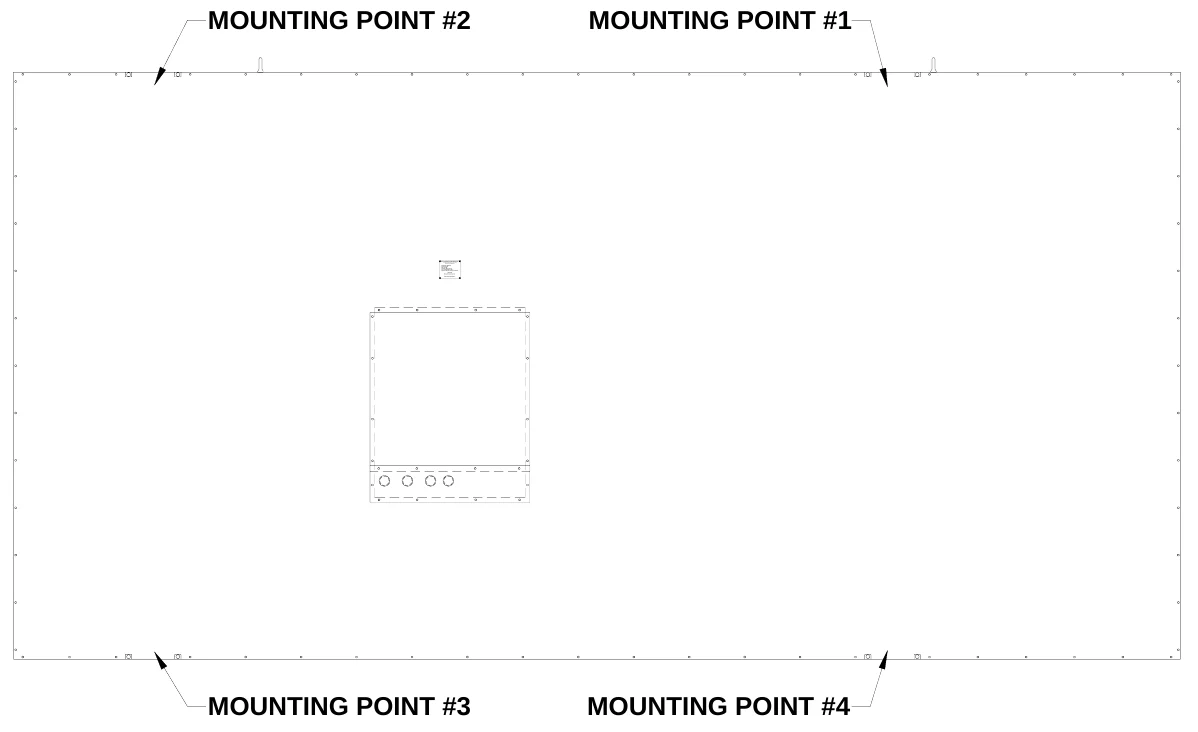

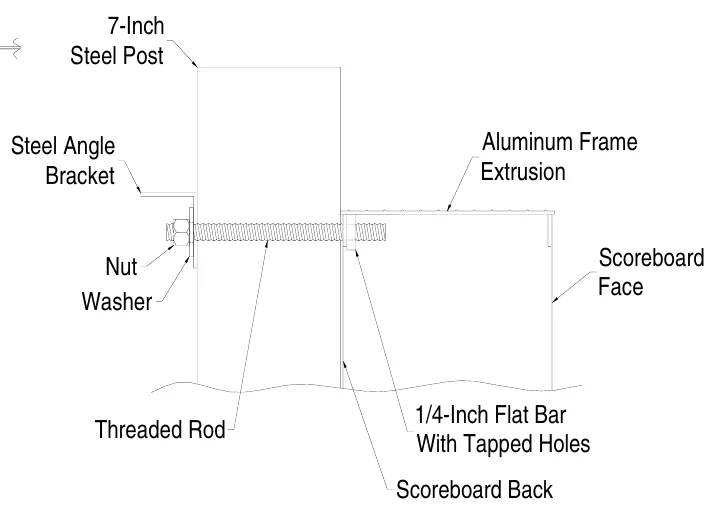

Mounting The Scoreboard The scoreboard is attached to the posts at four points. Figure 4 shows the location of the mounting points on the rear of the scoreboard.
ELECTRO-MECH SC OR EBOARD CO.Model N o. MM-1 000D ate of Mfg.S eria l No. AB -N o. of la mpholders 10 712 0 VAC 60 H z 1 3.3 A#3 I ndus trial Park way P. O. B ox 102Wrights ville, GA 31096-0102 R epla ce with 15 W lam p, m ax im umElect ric s ho ck h az ard : Di scon n ectpo we r b efo re se rvic ing eq uip me nta nd loc al c od es be for e in sta llatio nCh ec k with th e ap plica ble sta teCAUTION
MOUNTING HARDWARE
Four sets of mounting hardware are provided to attach the scoreboard at these points. Additional hardware sets are provided to attach the optional sponsor panels, if ordered. A single set of mounting hardware consists of a steel angle bracket, two threaded rods, two washers, and two nuts. Figure 5 shows an overhead cross section view and a side cross section view of the scoreboard attached to a post at a mounting point. A steel bar is riveted inside the scoreboard’s aluminum extrusion frame. The bar has two tapped holes. The threaded rods screw into these tapped holes. The washers and nuts are used to clamp the steel angle bracket against the steel post and hold the scoreboard in place.
7-Inch Steel Post
The following steps describe how to mount the scoreboard on the posts: 1.Place the scoreboard cabinet against the posts on the ground. Make sure the mounting points are aligned with the posts. 2.Screw the threaded rods into the tapped holes in the scoreboard. 3.Place a steel angle bracket over the threaded rods at mounting point #1. 4.Place a washer over each threaded rod. 5.Screw the nuts onto the threaded rods so that the bracket is loosely held in place. 6.Repeat steps 3 - 6 at the other mounting points. 7.Raise the scoreboard into place and tighten the nuts to clamp the scoreboard in place on the posts.
Mounting The Optional Side Sponsor Panel If you purchased the optional side sponsor panel, the scoreboard has been modified so that the sponsor panel bolts to the side of the scoreboard cabinet. Four bolts and washers are provided to attach the side sponsor panel to the scoreboard. The following steps describe how to attach the sponsor panel to the scoreboard and mount the optional side sponsor panels on the posts: 1.There are four small access panels on the rear of the side sponsor panel. Remove these access panels. 2.Position the sponsor panel next to the scoreboard. 3.Screw the threaded rods into the tapped holes at one of the sponsor panel mounting points. 4.Place a steel angle bracket over the threaded rods at the mounting point. 5.Place a washer over each threaded rod. 6.Screw the nuts onto the threaded rods so that the bracket is loosely held in place. 7.Repeat steps 3 - 6 at the other mounting point. 8.Place a washer over a bolt. 9.Insert the bolt into the top sponsor access panel opening and through the hole in the frame. 10.Screw the bolt into the tapped hole in the scoreboard cabinet. 11.Repeat steps 8-10 at the other three access panel openings. 12.Tighten the nuts to clamp the sponsor panel in place on the post. 13.Re-install the access panels.
Mounting The Optional Top Sponsor Panel Additional hardware sets are provided to attach the optional top sponsor panels, if purchased. The following steps describe how to mount the top sponsor panel on the posts: 1.Raise the top sponsor panel in place above the scoreboard. Make sure the mounting points are aligned with the posts. 2.Screw the threaded rods into the tapped holes in the top sponsor panel. 3.Place a steel angle bracket over the threaded rods at a mounting point. 4.Place a washer over each threaded rod. 5.Screw a nut onto each threaded rod so that the bracket is loosely held in place. 6.Repeat steps 3 - 5 at the other mounting points. 7.Tighten the nuts to clamp it in place on the posts.
ELECTRICAL INSTALLATION
We recommend a qualified electrician perform the needed electrical connections to ensure proper operation of the scoreboard. These connections include grounding the scoreboard, installing the horn, connecting the scoreboard to a power source, installing the ScoreLink 300 or the control cable, and connecting the control console.
| Ground Connection | ||
|---|---|---|
| The National Electrical Code | requires a scoreboard (electric sign) to be grounded. Grounding the | |
| scoreboard helps the scoreboard electronics operate properly and helps minimize damage if it is struck by | ||
| lightning. Metal posts do | not provide an adequate ground path. The following steps describe how to | |
| ground the scoreboard: | ||
| 1. | Drive one or more 5/8” x 8’ copper clad ground rods in the soil near the scoreboard. | |
| 2. | Connect #6 bare copper wire to the ground rods using 5/8” brass tear drop connectors. | |
| 3. | Remove the rear access panel and the dome plugs on the plate below the access panel. Figure 6 shows | |
| the location of the access panel and the dome plugs. |
ELECTRO-MECH SC OR EBOARD CO.Mode l No. MM-10 00S eria l No. AB -Da te of Mfg.12 0 VAC 60 Hz 1 3.3 ANo. of la mpholde rs 10 7#3 Indus tr ial Par kw ay P.O. Box 102W rightsv ille, GA 31096- 0102 Re plac e with 1 5 W lamp, m aximumpow er before s er vic ing equipmentElect ric s hock hazard: Dis connectChec k wit h the applicable s tateand loc al codes before installationC AUTION
4.

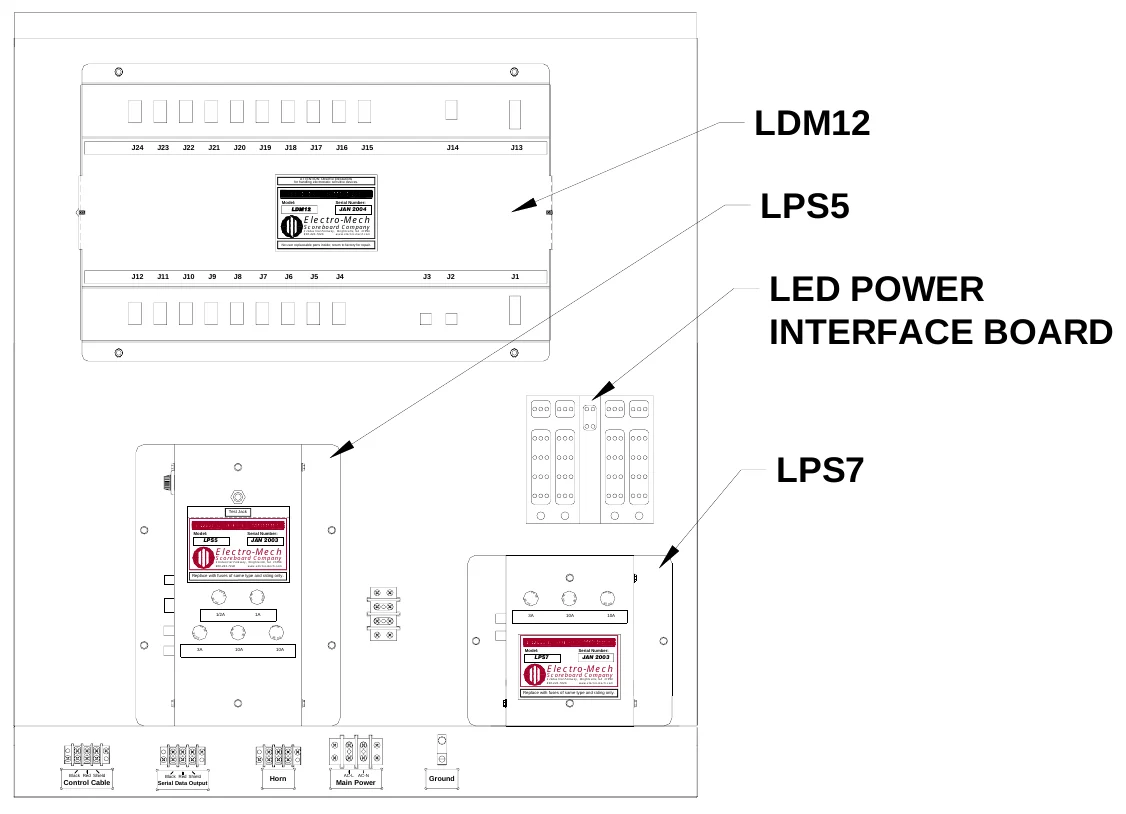

Figure 7 shows the view behind the access panel.
5.
Pass the ground conductor through the right hand hole in the plate below the access panel and connect it to the ground lug (Ground) on the junction chassis.

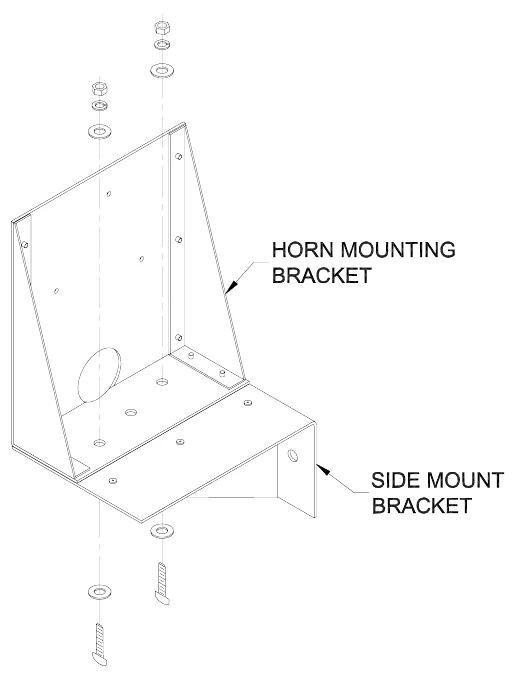

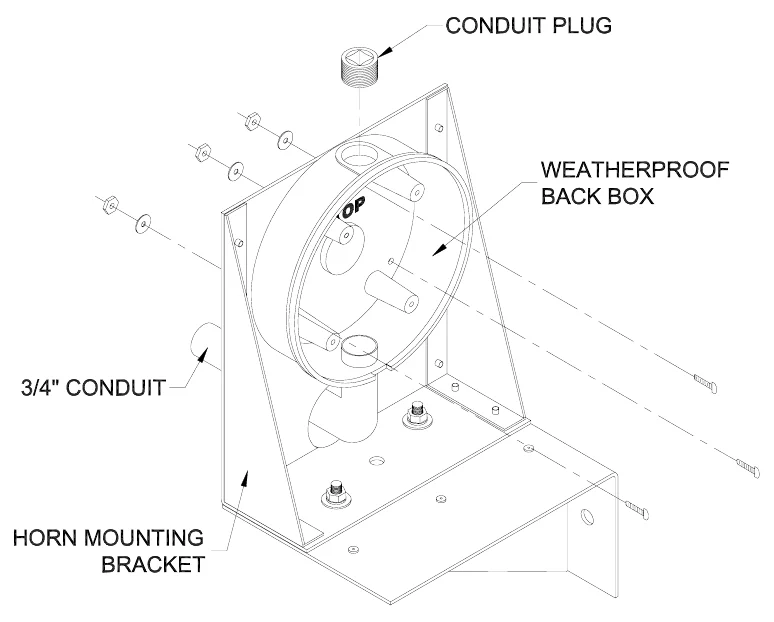

Horn Installation The items provided to install the horn are the horn, the weatherproof back box, the mounting bolts, and the mounting bracket. Items which are not provided but are necessary for proper installation are ¾” flexible conduit, a ¾” right angle male conduit connector, a ¾” straight male conduit connector, two wires, and four forked crimp terminals. The electrical requirements for the horn are 0.35 A 120 VAC. The horn assembly is attached to the left side of the scoreboard for models with top sponsor panels. These models have two tapped holes at the mounting point. Other models may have tapped holes on the left side of the scoreboard or have one tapped hole on the top of the scoreboard at the mounting point. Mounting bolts are screwed into the tapped holes at the factory. The following steps describe the assembly and mounting of the horn: 1.Remove the mounting bolts from the scoreboard. 2.Cut a piece of ¾” conduit of sufficient length to reach from the horn mounting point to one of the holes in the plate below the access panel. 3.Attach the ¾” right angle male conduit connector to one end of the conduit and the ¾” straight male conduit connector to the other end. 4.Cut two pieces of wire of approximately 7 feet longer than the conduit. 5.Push the wires through the conduit. 6.The horn mounting bracket has a side mount bracket attached. If the horn is going to be mounted on top of the scoreboard, remove the side mount bracket as seen in figure 8.
7.
7.Push the end of the conduit with the right angle male conduit connector through the 2” diameter hole in mounting bracket. 8.The weatherproof back box has two threaded conduit holes. Screw the provided conduit plug into the hole near the word “TOP” inside the weatherproof back box. 9.Feed the wires through the other back box conduit hole and screw the right angle conduit connector to the back box. 10.Attach the weatherproof back box to the mounting bracket using the provided 8-32 x 1/2” Phillips head machine screws, #8 split-lock washers, and 8-32 hex nuts as shown in figure 9.

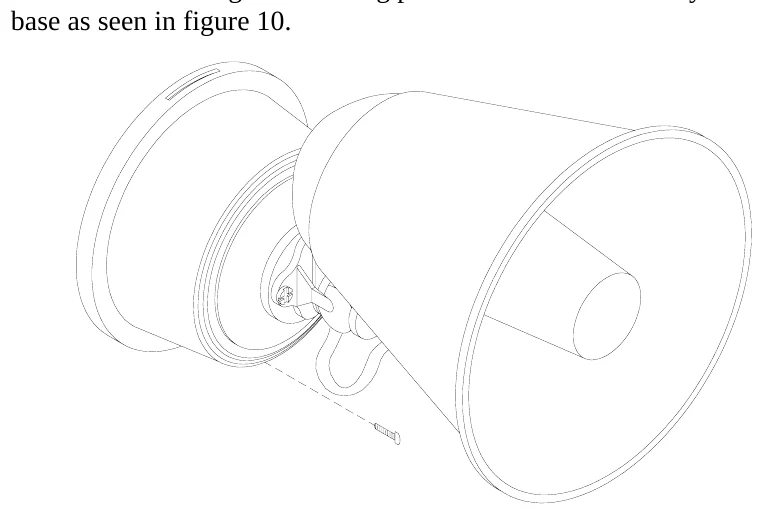

11.Remove the horn signal mounting plate from the horn base by loosening the Phillips head screw on the base as seen in figure 10.
12.The word “TOP” is stamped on the front side of the horn signal mounting plate. Pass the two wires that are inside the back box through the horn signal mounting plate center hole from the rear. 13.Align the horn signal mounting plate with the back box so that the word “TOP” on the horn signal mounting plate and the back box should be oriented in the same direction and the screw hole on the bottom edge of the horn signal mounting plate should be directly over the gap in the back box gasket as seen in figure 11. 14.Fasten the horn signal mounting plate with the four 8-32 x 7/16” machine screws that are provided with the back box.
15.Crimp forked terminals on the ends of the two wires and attach them to the plug receptacle seen in figure 12.
16.Slide the slot on the side of the horn base over the tab on the horn signal mounting plate and tighten the Phillips head screw on the other side of the horn base. 17.Fasten the horn assembly to the scoreboard using the mounting bolts from the scoreboard as seen in figure 13.
18.Crimp forked terminals on the ends of the two wires that protrude out of the other end of the conduit. 19.Pass the wires through one of the holes in the plate below the access panel. 20.Fasten the conduit connector to the plate and connect the wires to the terminal block labeled Horn. Connect the AC-L wire to the left terminal and the AC-N wire to the right terminal.
Power Connection to Scoreboard The scoreboard requires 120 VAC service at the scoreboard to operate properly. Maximum power consumption of Model 3250: 221 Watts. Make sure that power cable is rated for this electrical load. Install the power cable in conduit. Avoid running the power cable in close proximity to the control cable. The following steps describe how to connect the scoreboard to the power source: 1.Feed the power cable through a hole in the plate below the access panel. 2.Crimp fork terminals to the power cable wires. 3.Connect the AC line wire and AC neutral wire to the Main Power terminal block on the junction chassis according to Figure 14.
Install a power disconnect that isolates all current carrying conductors on one of the posts below the scoreboard (not the ground conductor). If a secondary switch is installed near the scorekeeper’s table, it should also isolate these conductors. Place the power disconnect in the OFF position between games to help protect the scoreboard from lightning damage. A power disconnect on the scoreboard post also provides a convenient way of turning the scoreboard off during maintenance or repairs.
ScoreLink 300 The ScoreLink 300 RF MODEM SYSTEM is designed to eliminate the control cable between the scoreboard and the control console on Electro-Mech Scoreboard MM and MP series scoreboards as well as all LED scoreboards. If you have purchased this accessory, disregard the section of this manual titled Control Cable Installation. Refer to the ScoreLink 300 RF MODEM SYSTEM OWNER’S HANDBOOK for installation instructions.
Serial Data Output Connections Customers who have purchased a set of delay of game timers can provide one unit with serial data from this scoreboard. This connection is an alternative to providing a delay of game timer with serial data from the control console via the control cable or a ScoreLink 300 RF modem. Do not connect the second delay of game timer to this scoreboard. The following steps describe how to transmit serial data from this scoreboard to one delay of game timer: 1.At the rear of the scoreboard, feed data cable (same type of cable specified for control cable on page 3) through a hole in the plate below the access panel. 2.Crimp fork terminals to the cable wires and the shield. 3.Connect the cable to the terminal block labeled Serial Data Output on the junction chassis according to figure 15.
4. 5. 6. 7.
Remove the delay of game timer rear access panel. Feed the cable through a hole in the plate below the access panel. Crimp fork terminals to the cable wires and the shield. Connect the cable to the terminal block labeled Control Cable on the delay of game timer junction chassis according to figure 16.
8.
Reinstall the delay of game timer rear access panel.
Control Cable Installation The control cable connects the scoreboard to the control console. Install the control cable in conduit. If the cable is ever damaged, it is easier and less expensive to replace a cable in conduit. A small junction box with a ¼” stereo jack mounted on the face plate is attached to the control cable at the point of operation of the scoreboard. This junction box should be securely mounted in a clean, dry area within ten feet of the rear of the control console. Most customers order the control cable with the junction box attached. Some customers prefer to attach the junction box after the cable is installed. Those customers must solder the control cable to the ¼” stereo jack. Figure 17 shows the control cable wire connection points on the rear of the ¼” stereo jack.
1/4" STEREO JACK
The following steps describe how to connect the control cable to the scoreboard: 1.At the rear of the scoreboard, feed the control cable through the left hole in the plate below the access panel. 2.Crimp fork terminals to the control cable wires and the shield. 3.Connect the control cable to the terminal block labeled Control Cable on the junction chassis according to figure 18.
4.
Reinstall the access panel.
Control Console Connections The 10 ft. extension cable has two molded ¼” stereo plugs attached to it. It is used to connect the control console to the junction box. The following steps describe how to connect the control console:
1.
Plug one end of the extension cable into ¼” stereo jack on the junction box or the ScoreLink 300 Transmitter, if purchased. Plug the other end into the ¼” stereo jack mounted on the control console back plate. Plug the control console power cord into a grounded NEMA 5-15R 120 VAC receptacle.
2. 3.
Control Console Safety Warning
This product is equipped with a 3-wire grounding type plug, a plug having a third (grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact a qualified electrician to replace your obsolete outlet. Do not defeat the purpose of the grounding-type plug.
SCOREBOARD STARTUP
1. 2.
Place the power disconnect for the scoreboard in the ON position. Plug one end of the extension cable into ¼” stereo jack on the junction box or the ScoreLink 300 Transmitter, if purchased. Plug the other end into the ¼” stereo jack mounted on the control console back plate. Plug the control console power cord into a grounded NEMA 5-15R 120 VAC receptacle. If a ScoreLink 300 RF MODEM SYSTEM is installed with this scoreboard, plug the wall mount DC power supply into a grounded NEMA 5-15R 120 VAC receptacle and the male plug on the end of the attached cable into the Power jack on the Transmitter. On the control console keypad press [NEW GAME], [1], [ENTER].
3. 4. 5.
6.
GAME TIME OPERATION

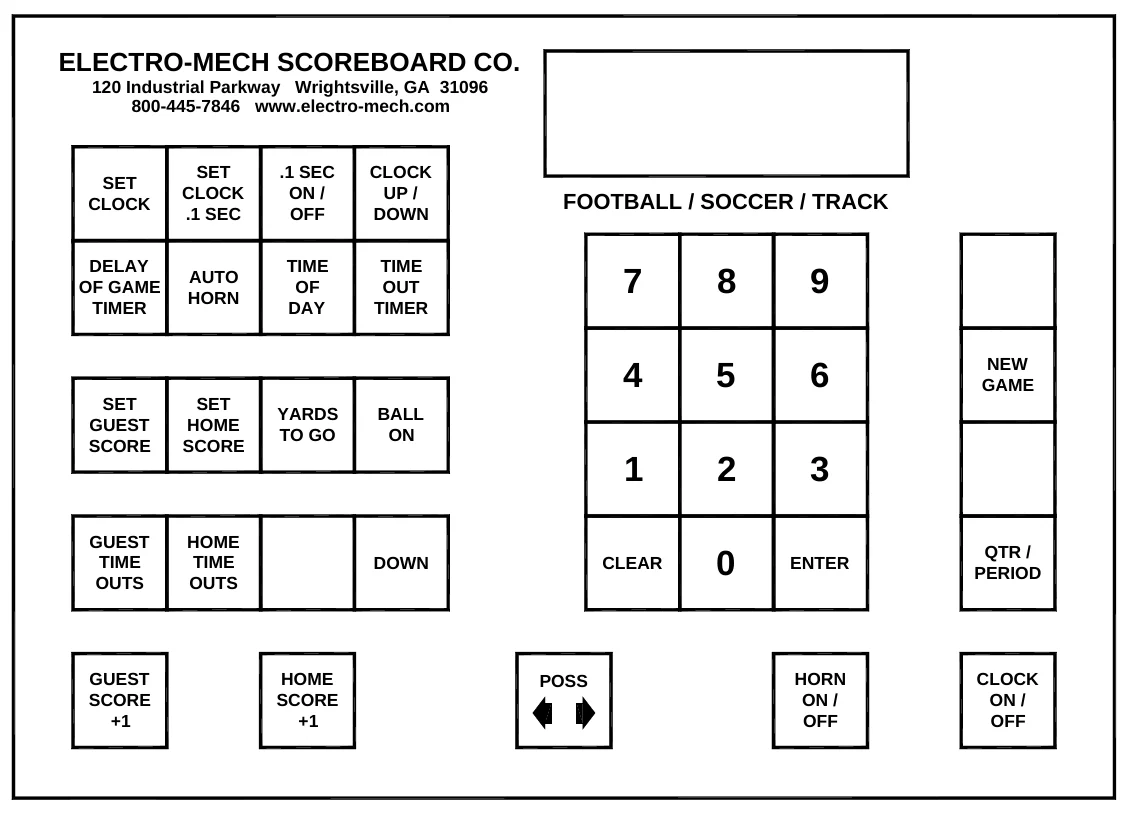

This scoreboard is operated with a 37-key control console. Figure 19 shows the keypad layout on the control console.
Immediately after the control console power cord is plugged into a 120 VAC source, the console LCD display will read:
ELECTRO-MECH 276 SCOREBOARD MPFB
After a few seconds the display will read:
00 3
The scoreboard will display:
CLOCK – 15:00 GUEST SCORE – 0 HOME SCORE – 0 YDS. TO GO – 0

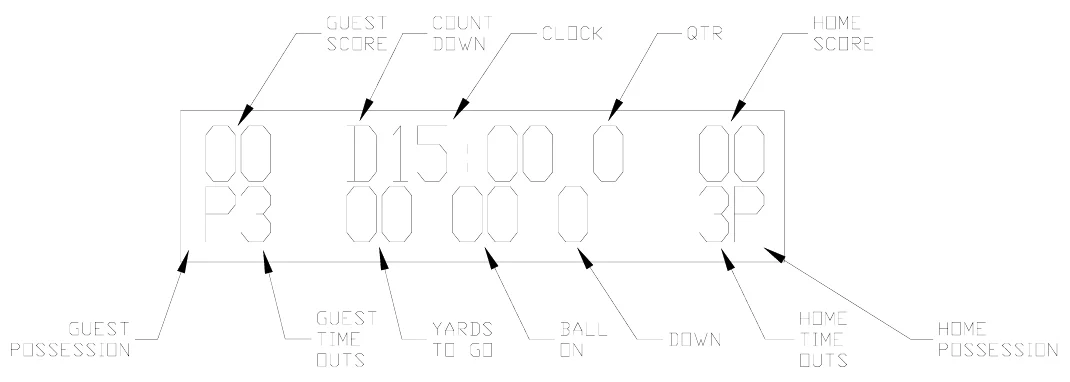

The control console LCD display shows the same information as the scoreboard. Note: In some functions a 0 will be blanked on the scoreboard, but not on the console. Because this console program is used for a number of models of scoreboards, some functions will appear on the console LCD display that are not present on the scoreboard. Figure 20 explains the LCD display layout.
| Control Console Key Functions | |||||||
|---|---|---|---|---|---|---|---|
| 1. | SET CLOCK | – This key sets the time displayed on the scoreboard clock. Press [SET CLOCK]. The | |||||
| console LCD display will read: | |||||||
| 00 D15:00 0 00 | |||||||
| SET CLK <00:00> | |||||||
| Press | the keypad numbers for the time | , [ENTER] | . | Example: Press [SET CLOCK] , [6], [0], [0], [0], | |||
| [ENTER] | on the control console. 60:00 will be displayed on the clock section of the scoreboard. | ||||||
| 2. | SET CLOCK .1 SEC | – This key is used to set the scoreboard clock to a time less than one minute | |||||
| when tenth of a second accuracy is required. Press [SET CLOCK .1 SEC]. The console LCD display | |||||||
| will read: | |||||||
| 00 D15:00 0 00 | |||||||
| SET SEC <00.0> | |||||||
| Press | the keypad numbers for the time | , [ENTER] | . Example: Press [SET CLOCK .1 SEC], [5], [3], | ||||
| [8], [ENTER] | on the control console. 53.8 will be displayed on the clock section of the scoreboard. |
00 D15:00 0 00 SET SEC <00.0>
| 3. | .1 SEC ON/OFF | – This key is used to enable or disable the display of tenths of seconds on the | |||||
| scoreboard. The use of this key has a visible effect on the scoreboard only if the game clock is less | |||||||
| than one minute. This mode is enabled when the control console is turned on. If it is disabled, the | |||||||
| LCD display on the control console will still show 1/10 | th second timing, but the scoreboard will not | ||||||
| display it. To turn this function off, press [.1 SEC ON/OFF]. The console LCD display will read: | |||||||
| CLOCK ON <1> | |||||||
| .1 SEC OFF <0> | |||||||
| Press [0], [ENTER] | on the control console. | ||||||
| 4. | CLOCK UP/DOWN | – The clock can be set up to either count up or count down. The control console | |||||
| is set to the clock down mode when it is turned on. To make the clock count up, press [CLOCK UP / | |||||||
| DOWN]. The console LCD display will read: | |||||||
| GAME UP <1> | |||||||
| CLOCK DOWN <0> | |||||||
| Press [1], [ENTER] | on the control console | . The letter D in front of the game time on the console LCD | |||||
| will be replaced with the letter U to indicate that the clock is in the count up mode. To reset the clock | |||||||
| to count down mode, press [CLOCK UP / DOWN], [0], [ENTER] | on the control console . | ||||||
| 5. | DELAY OF GAME TIMER | – The console is programmed to control a set of delay of game timers. | |||||
| The delay of game timer is preset to 25 seconds, but can be set to any time from 0 to 99 seconds. | |||||||
| Changes to the delay of game timer time should be done prior to the start of a game. To change the | |||||||
| delay of game timer time, press [SET DELAY OF GAME TIMER] | . The console LCD display will | ||||||
| read: | |||||||
| 00 D15:00 0 00 | |||||||
| DELAY TIME <25> | |||||||
| Press the keypad numbers to set Delay of Game Timer | , [ENTER] | . | |||||
| 6. | AUTO HORN | – This key allows the operator to control the end of period horn and the time out horn. | |||||
| The horn sounds for two seconds when the clock reaches 0:00 at the end of the period. The end of | |||||||
| period horn can be disabled by pressing [AUTO HORN] | . | The console LCD display will read: | |||||
| GAME PRESS<1>ON | |||||||
| HORN PRESS<0>OFF | |||||||
| Press [0], [ENTER] | to disable the horn. The console LCD display will then read: | ||||||
| T-O PRESS<1>ON | |||||||
| HORN PRESS<0>OFF | |||||||
| The time out horn is normally disabled. To enable the horn to sound at the end of the time out, press | |||||||
| [1], [ENTER] | on the control console. |
T-O PRESS<1>ON HORN PRESS<0>OFF
| 7. | TIME OF DAY | – The time of day can be displayed on the clock section of the scoreboard. | THE | ||||||||
| GAME CLOCK WILL BE INOPERABLE UNTIL THE TIME OF DAY FUNCTION IS | |||||||||||
| TURNED OFF | . To turn the time of day clock on, press [TIME OF DAY] | . The console LCD display | |||||||||
| will read: | |||||||||||
| TIME OF ON <1> | |||||||||||
| DAY CLOCK OFF<0> | |||||||||||
| Press [1], [ENTER] on the control console. The console LCD display will then read: | |||||||||||
| 00 C12:00 0 00 | |||||||||||
| SET CLK <12:00> | |||||||||||
| Press the keypad numbers for the time | , [ENTER] | . The letter C will be displayed on the console LCD | |||||||||
| display to the left of the time to indicate that the time of day function is active. The scoreboard will | |||||||||||
| display the time of day. | |||||||||||
| 8. | TIME OUT TIMER | – To set the Time Out Timer, press [TIME OUT TIMER] | . The console LCD | ||||||||
| display will read: | |||||||||||
| 00 D15:00 0 00 | |||||||||||
| SET T-O <1:00> | |||||||||||
| Press the keypad numbers for the time | , [ENTER] | . After the ENTER key is pressed, the letter T is | |||||||||
| displayed to the left of the time on the LCD display and the Time Out Timer immediately begins to | |||||||||||
| count down to 0. The scoreboard will not display the Time Out time. To exit the Time Out Timer | |||||||||||
| function before 0, press [TIME OUT TIMER], [ENTER]. | |||||||||||
| 9. | SET GUEST SCORE | – To set the guest score, press [SET GUEST SCORE]. The console LCD | |||||||||
| display will read: | |||||||||||
| 00 D15:00 0 00 | |||||||||||
| GUEST SCORE <00> | |||||||||||
| Press the keypad numbers for the score, [ENTER] | . | EXAMPLE: To set the visitor score to 53, press | |||||||||
| [SET GUEST SCORE] | , | [5] | , [3], [ENTER] | . | |||||||
| 10. | SET HOME SCORE | – To set the home score, press [SET HOME SCORE]. The console LCD | |||||||||
| display will read: | |||||||||||
| 00 D15:00 0 00 | |||||||||||
| HOME SCORE <00> | |||||||||||
| Press the keypad numbers for the score, [ENTER] | . | EXAMPLE: To set the home score to 75, press | |||||||||
| [SET HOME SCORE] | , | [7] | , [5], [ENTER] | . | |||||||
| 11. | YARDS TO GO | – To set the yards to go, press [YARDS TO GO]. The console LCD display will | |||||||||
| read: | |||||||||||
| 00 D15:00 0 00 | |||||||||||
| YARDS TO GO <00> | |||||||||||
| Press the keypad numbers for the yards, [ENTER]. EXAMPLE: To set the yards to go to 10, press | |||||||||||
| [YARDS TO GO], [1], [0], [ENTER] | . | ||||||||||
| 12. | DOWN – This key increments the DOWN by 1. If this key is pressed when DOWN displays 4, the | ||||||||||
| digit will be blanked. | |||||||||||
| 13. | GUEST SCORE +1 | – This key increments the Guest score by 1. | |||||||||
| 14. | HOME SCORE +1 | – This key increments the Home score by 1. | |||||||||
| Electro-Mech Scoreboard Co. | • | 120 Industrial Parkway | • Wrightsville, GA 31096 |
00 D15:00 0 00 YARDS TO GO <00>
| 15. | HORN ON/OFF | – This key is used to sound the horn for ½ second. | ||
| 16. | CLOCK ON/OFF | – This key is used to start and stop the clock. | ||
| 17. | QTR – This key is used to increment the quarter by 1. | |||
| 18. | NEW GAME | – This key is used to reset all the scoreboard functions to their default settings. To reset | ||
| the scoreboard, press [NEW GAME] | . The console LCD display will read: | |||
| RESET YES<1> | ||||
| SCOREBOARD NO<0> | ||||
| Press [1] , | [ENTER] | on the control console. The scoreboard will reset its functions. | ||
| The BALL ON, GUEST TIME OUTS, HOME TIME OUTS, and NEXT POSS keys are not used with the | ||||
| 3250 scoreboard. |
Hand Held Clock Control Unit Operation The hand held clock control unit has an attached cable that is plugged into a jack on the control console back plate labeled Clock Hand held. It has one button that is used to toggle the clock on and off.
You should reset the scoreboard each time that it is turned on. Test out all the functions to ensure that the scoreboard is operating properly.
SCOREBOARD SHUTDOWN
1. 2. 3. 4.
Place the power disconnect for the scoreboard in the OFF position. Unplug the control console power cord. Unplug the extension cable. If a ScoreLink 300 RF MODEM SYSTEM is installed with this scoreboard, unplug the Transmitter’s wall mount power supply. Store the control console and ScoreLink 300 Transmitter in a dry location. These units are not waterproof.
5.
Proper scoreboard shutdown will help protect the scoreboard and control console from power surges and lightning strikes.
SERVICING THE SCOREBOARD
While your scoreboard was designed for years of trouble-free operation, some problems may occasionally occur. Electro-Mech Scoreboard Company offers onsite service in some areas. In other areas, we can help you contact an independent service technician. In areas in which service is not available from Electro- Mech Scoreboard Company, we will make every effort to answer your questions. Our trained personnel at Electro-Mech Scoreboard Company are ready to answer your questions from Monday to Friday during the hours of 8 AM to 5 PM Eastern Standard Time. Be sure to know your scoreboard model number when calling. Scoreboard replacement parts are always available. Damaged parts can usually be repaired at a significant cost savings. Our convenient toll free number is listed at the bottom of every page in this manual.
If the scoreboard turns on LEDs, but does not operate normally, make note of which functions are affected. If some LEDs either never turn on or always stay on, make note of their specific locations on the scoreboard. Refer to the COMPONENT REPLACEMENT section of this manual before changing parts.
COMPONENT REPLACEMENT
LED Digits Replacement
The LEDs that form digits are soldered on circuit boards mounted behind metal masks. Do not attempt to replace individual LEDs. In case of a malfunction, the entire LED circuit board must be removed. To avoid damage to the LED driver module,always turn off the power to the scoreboard when removing or replacing LED digits. Figure 21 shows the components of an LED digit assembly.
1.
Remove the sheet metal screws that fasten the mask to the face of the scoreboard. Caution: Support the mask before removing the last screw. The ribbon cable that connects to the rear of the circuit board is not designed to support the weight of the assembly. Disconnect the ribbon cable from the rear of the circuit board. Caution: Do not let the cable hang outside of the scoreboard. It is easily cut by sharp metal edges. Damage to the ribbon cable may create short circuit paths that will damage the LDM12 LED driver module.
2.
3.
Place the assembly on a flat surface and remove the 6-32 kep lock nuts that hold the circuit board in place. Remove the old circuit board. Align the mounting holes in the new circuit board with the threaded studs on the mask and install the replacement digit on the mask. Plug the ribbon cable onto the header on the back of the circuit board.
4. 5.
6.

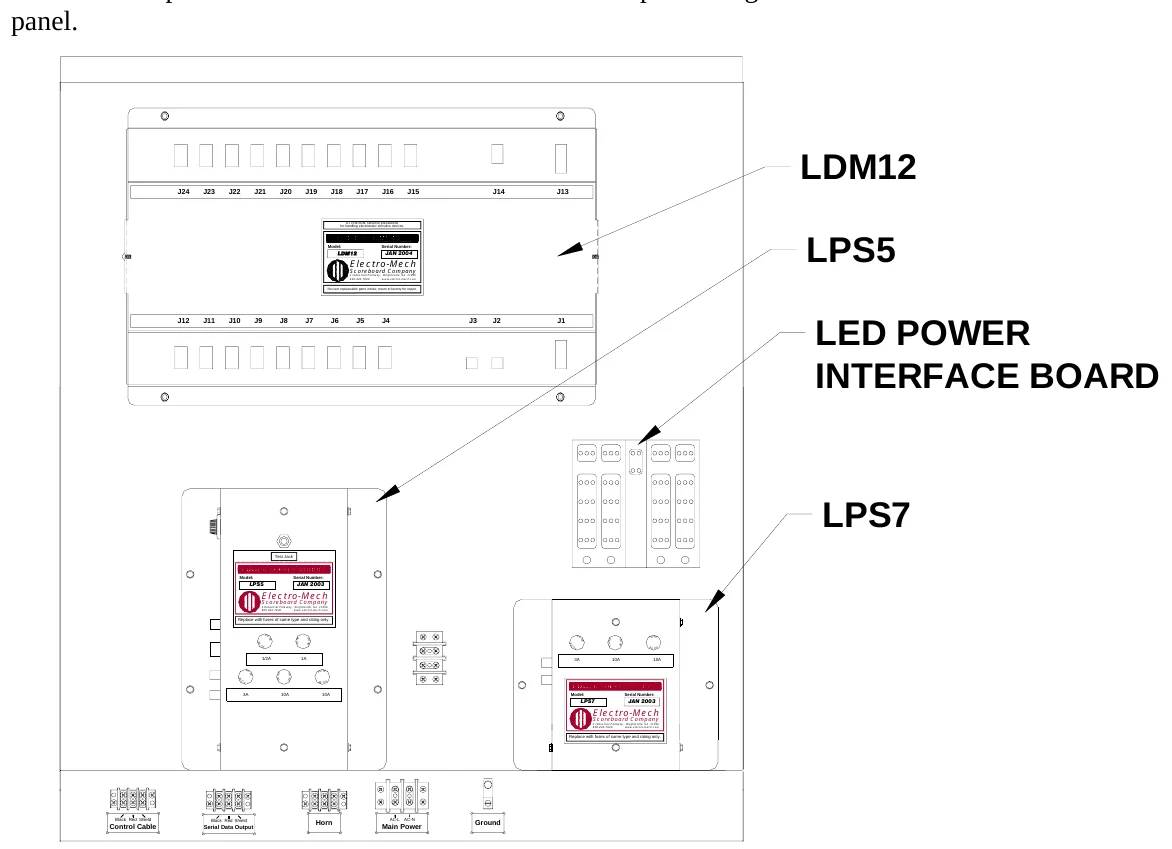

DRIVER MODULE
J1
JACK FUNCTION DRIVER MODULE DC POWER INPUT #1
J2
SERIAL DATA INPUT
J3
SERIAL DATA OUTPUT
J4
CLOCK SECONDS UNITS DIGIT
J5
CLOCK SECONDS TENS DIGIT
J6
CLOCK MINUTES UNITS DIGIT
J7
HOME SCORE UNITS DIGIT
J8
HOME SCORE TENS DIGIT
J9
GUEST SCORE UNITS DIGIT
J10
YARDS TO GO UNITS DIGIT
J11
YARDS TO GO TENS DIGIT
J13
DRIVER MODULE DC POWER INPUT #2
J14
HORN RELAY CONTROL
J16
J16 QUARTER
J17
CLOCK MINUTES TENS DIGIT
J20
GUEST SCORE TENS DIGIT
J22
J22 DOWN
Note: All other LDM12 jacks are unused.
LED Driver Module Replacement Electrical connections to the LDM12 LED DRIVER MODULE are made with ribbon cable polarized IDC sockets and locking ramp crimp terminal housings that mate with jacks on the module. The module is secured inside the scoreboard with six machine screws.
1.
1.Unplug the electrical connections from the module. Do not cut the plastic tie wraps around the ribbon cables. 2.Remove the six screws. 3.Remove the module from the scoreboard. 4.Insert the replacement module in the scoreboard. 5.Secure the module with the six screws. 6.Insert the plugs into the jacks on the module. To avoid damage to the module,always turn off the power to the scoreboard when removing or replacing it.
LPS5 LED POWER SUPPLY MODULE FUNCTIONS
JACK
JACK FUNCTION
J1
120 VAC INPUT
J2
20 VDC OUTPUT TO LED POWER INTERFACE BOARD
J3
SERIAL DATA INPUT / OUTPUT
J4
J4 HORN
J5
SERIAL DATA TEST JACK
A relay inside the LPS5 Power Supply Module isolates the LDM12 LED Driver Module from the control cable when the scoreboard is shut down. Connecting the control console to the test jack on the LPS5 Power Supply Module (J5) with the 10 ft. extension cable bypasses this relay. Figure 23 shows the
| location of the fuses in the LPS5 LED Power Supply Module. The table following the figure lists the fuse | ||||||||||
| ratings, functions, and part numbers. | ||||||||||
| Not a convenience receptacle | ||||||||||
| This receptacle is designed for use with | ||||||||||
| Electro-Mech control consoles only. | ||||||||||
| S E F U ES | ||||||||||
| U F | ||||||||||
| 1/2 A | ||||||||||
| F6 | ||||||||||
| J5 | Test Jack | |||||||||
| Model: | Serial Number: | |||||||||
| LPS5 | Electro-Mech | JAN 2003 | ||||||||
| Scoreboard Company | ||||||||||
| 3 Industrial Parkway, Wrightsville, GA 31096 | ||||||||||
| 800-445-7846 www.electro-mech.com | ||||||||||
| J4 | Replace with fuses of same type and rating only. | |||||||||
| F U | S E | E | F | |||||||
| S | U S | |||||||||
| J3 | E S | U F | ||||||||
| 1/2A 1A | ||||||||||
| J2 | ||||||||||
| F U ES | E | F | F U S E | |||||||
| S | U S | |||||||||
| F4 | E S | U F | ||||||||
| J1 | ||||||||||
| 3A 10A 10A | ||||||||||
| F5 | ||||||||||
| F1 | ||||||||||
| F2 |

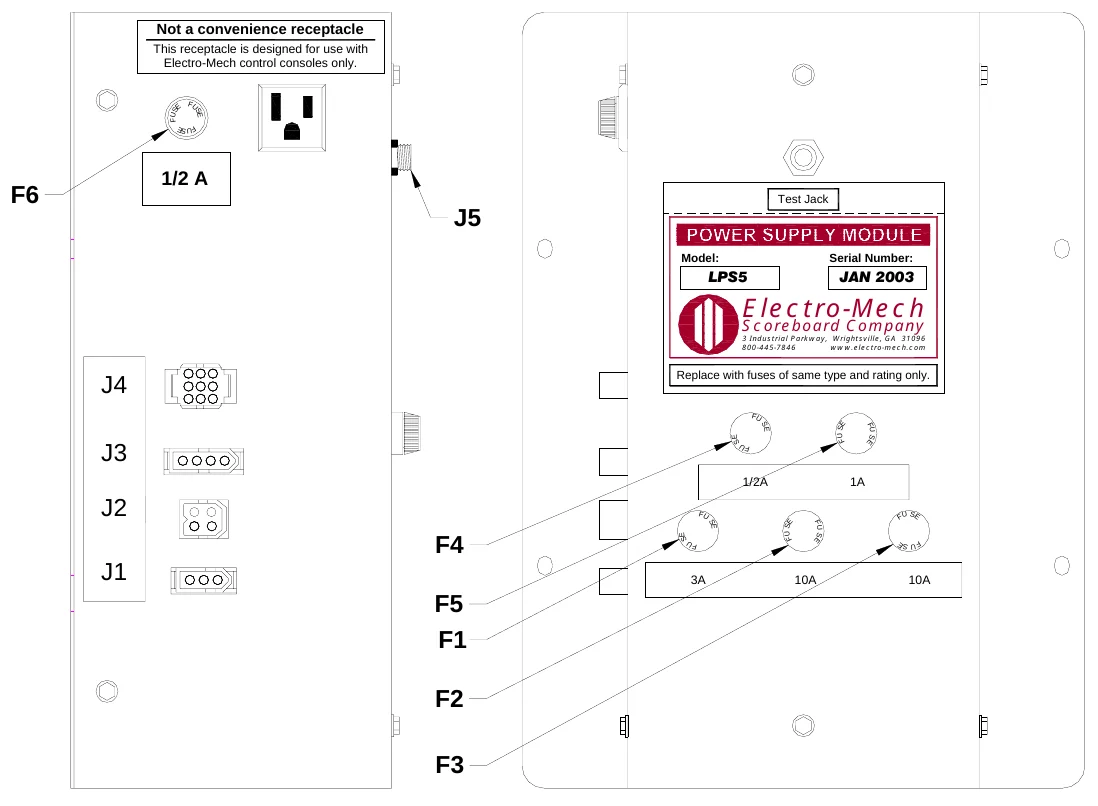

| Figure 23 LPS5 Fuse Locations | ||||
|---|---|---|---|---|
| LPS5 FUSES | ||||
| FUSE RATING | FUNCTION | BUSSMAN PART # | ||
| F1 | 3A 250V | TRANSFORMER PRIMARY | AGC-3 | |
| F2 | 10A 250V LED POWER INTERFACE BOARD J1 | AGC-10 | ||
| F3 | 10A 250V LED POWER INTERFACE BOARD J6 | AGC-10 | ||
| F4 | ½A 250V | SERIAL DATA ISOLATION RELAY | AGC-1/2 | |
| F5 1A | 250V | HORN | AGC-1 | |
| F6 | ½A 250V 120 VAC ELECTRICAL RECEPTACLE | AGC-1/2 | ||
| Note: Other manufacturers’ fuses may be substituted for the Bussmann fuses. | ||||
| LPS7 LED POWER SUPPLY MODULE FUNCTIONS | ||||
| JACK FUNCTION | ||||
| J1 | 120 VAC INPUT | |||
| J2 | 20 VDC OUTPUT TO LED POWER INTERFACE BOARD | |||
| Figure 24 shows the location of the fuses in the LPS7 LED Power Supply Module. The table following the | ||||
| figure lists the fuse ratings, functions, and part numbers. |
| 3A 10A 10A | |||||||
| J2 | |||||||
| F | U | F | F U S E | ||||
| ES | S E | U | |||||
| E | U | S | |||||
| S | F | ||||||
| J1 | |||||||
| F1 | |||||||
| Model: | Serial Number: | ||||||
| LPS7 | JAN 2003 | ||||||
| F2 | Electro-Mech | ||||||
| Scoreboard Company | |||||||
| 3 Industrial Parkway, Wrightsville, GA 31096 | |||||||
| 800-445-7846 www.electro-mech.com | |||||||
| F3 | Replace with fuses of same type and rating only. |
| Figure 24 LPS7 Fuse Locations | |||
|---|---|---|---|
| LPS7 FUSES | |||
| FUSE RATING | FUNCTION | BUSSMAN PART # | |
| F1 3A 250V | TRANSFORMER PRIMARY | AGC-3 | |
| F2 10A 250V LED POWER INTERFACE BOARD J11 | AGC-10 | ||
| F3 10A 250V | NOT USED | AGC-10 | |
| Note: Other manufacturers’ fuses may be substituted for the Bussmann fuses. |
LED Power Supply Module Replacement Electrical connections to the LED Power Supply Modules are made with keyed plugs that mate with jacks on the left side of the module. The modules are secured inside the scoreboard with four machine screws each.
1.Disconnect the plugs from the jacks on the side of the module. 2.Remove the four screws. 3.Remove the module from the scoreboard. 4.Insert the replacement module in the scoreboard. 5.Secure the module with the four screws. 6.Insert the plugs into the jacks on the side of the module. To avoid damage to the module,always turn off the power to the scoreboard when removing or replacing it.
The LED Power Interface board distributes the output from the power supply modules to the LDM12 LED driver module and the LED digit driver – large board assemblies.
LED Power Interface Board Replacement 1.Unplug the wire assemblies from the jacks on the circuit board. 2.The circuit board is mounted on snap-in standoffs. Unseat the circuit board from the standoffs. 3.Press the replacement circuit board in place on the standoffs. 4.Plug the wire assemblies in the correct jacks on the circuit board. Each wire assembly is labeled to indicate the correct jack connection.
ELECTRO-MECH SCOREBOARD CO. FIVE YEAR LIMITED WARRANTY
THE ELECTRICAL COMPONENTS OF ALL ELECTRO-MECH SCOREBOARDS ARE GUARANTEED FOR A PERIOD OF FIVE (5) YEARS FROM THE DATE OF INVOICE AGAINST DEFECTS IN WORKMANSHIP OR MATERIAL AND WILL BE REPLACED OR REPAIRED WITHOUT COST TO THE OWNER PROVIDED THE EQUIPMENT OR PARTS ARE RETURNED POSTAGE-PAID TO THE FACTORY IN WRIGHTSVILLE, GA. SHIPPING BACK TO THE OWNER WILL BE VIA UPS GROUND SERVICE EXCEPT WHEN AIR OR SPECIAL METHOD OF RETURN IS SPECIFIED BY THE OWNER, IN WHICH CASE SHIPPING WILL BE FREIGHT COLLECT.
EXCLUDED FROM THIS WARRANTY ARE FUSES.
THIS WARRANTY DOES NOT INCLUDE LABOR CHARGES INCURRED IN THE REMOVAL OF COMPONENT PARTS, SERVICE CALLS, OR DAMAGES RESULTING FROM IMPROPER INSTALLATION, IMPROPER OPERATION, OR PROBLEMS CAUSED BY ANY REPAIR, ALTERATION OR MODIFICATION OF THE SCOREBOARD NOT PERFORMED BY ELECTRO-MECH.
EQUIPMENT WHICH IS SUBJECTED TO ACCIDENT, NEGLECT, ABUSE, MISUSE OR OTHER NATURAL DISASTERS, INCLUDING BUT NOT LIMITED TO FIRE, WIND, LIGHTNING, OR FLOOD, IS NOT COVERED BY THIS GUARANTEE.
