Please contact your Sales Representative for more information regarding your
Video Display.
Electro-Mech is proud to offer a
variety of video and message center solutions. Let us help
you expand your scoreboard into a high tech electronic
audio/video system that brings a "big-time" atmosphere as well
as new revenue streams into your athletic facility.
Electro-Mech combines the experience and
quality you expect with the features you need: Long life,
true pitch (not simulated) matrices Simple software designed
for athletic venues 3 Composite video inputs for cameras and
DVD Players Easy importing of jpeg, avi and other file
formats
Additional matrix sizes are
available.
Power requirements, weights, and dimensions are approximate.
Contact your Electro-Mech sales representaive for detailed
information.
Our easy to use
software includes a library of animation files that will add
sizzle to your video productions.
Outdoor

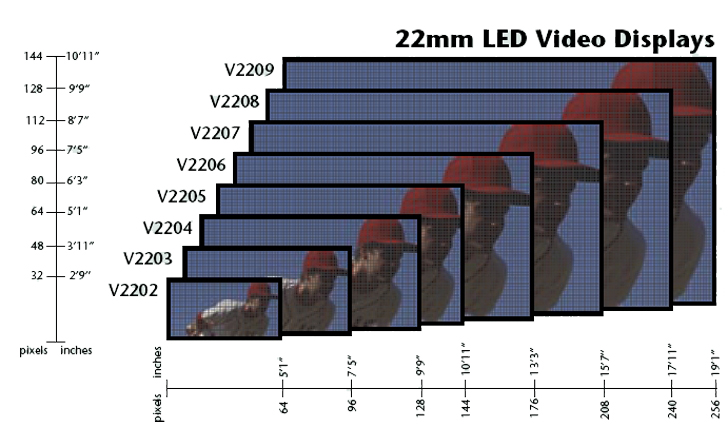

22mm Full-Color LED Video Displays – 16:9 Ratio
Model
Matrix
Cabinet Dimension
Weight
Power
V2202
32 x 64
2’9" x 5’1"
150 lbs
120 VAC 8 Amps
V2203
48 x 96
3’11" x 7’5"
340 lbs
120 VAC 16 Amps
V2204
64 x 128
5’1" x 9’9"
480 lbs
120 VAC 27 Amps
V2205
80 x 144
6’3" x 10’11"
680 lbs
120 VAC 38 Amps
V2206
96 x 176
7’5" x 13’3"
990 lbs
120 VAC 55 Amps
V2207
112 x 208
8’7" x 15’7"
1380 lbs
120 VAC 75 Amps
V2208
128 x 240
9’9′ x 17’11"
1880 lbs
120 VAC 113 Amps
V2209
144 x 256
10’11’ x 19’1"
2220 lbs
120 VAC 131 Amps
Import
your own pictures and add text to build a team roster for instant
display during the game

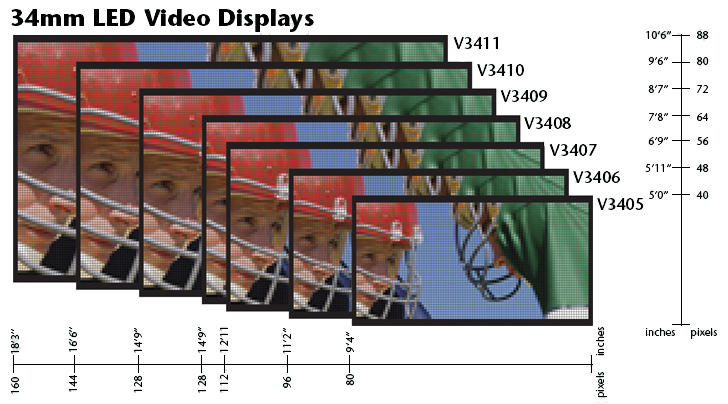

Outdoor 34mm Full-Color LED Video Displays – 16:9 Ratio
Long life,
